Ice axe
Encyclopedia
Mountaineering
Mountaineering or mountain climbing is the sport, hobby or profession of hiking, skiing, and climbing mountains. While mountaineering began as attempts to reach the highest point of unclimbed mountains it has branched into specialisations that address different aspects of the mountain and consists...
both in the ascent and descent of routes which involve frozen conditions. It can be held and employed in a number of different ways, depending on the terrain encountered. In its simplest role, the ice axe is used like a walking stick in the uphill hand, the mountaineer holding the head in the centre, with the pick pointing to the rear. It can also be buried pick down, the rope tied around the shaft to form a secure anchor on which to bring up a second climber, or buried vertically to form a stomp belay. The adze is used to cut footsteps (sometimes known as pigeon holes), as well as scoop seats in the hillside and trenches to bury an ice axe belay. An ice axe is not only used as an aid to climbing, but also as a means of self-arrest in the event of a downhill slip. The long-handled alpenstock
Alpenstock
An alpenstock is a long wooden pole with an iron spike tip, used by shepherds for travel on snowfields and glaciers in the Alps since the Middle Ages. It is the antecedent of the modern ice axe.French-speaking climbers called this item a "baton"...
was a predecessor to the modern ice axe.
Most ice axes meet design and manufacturing standards of organizations such as the Union Internationale des Associations d'Alpinisme
Union Internationale des Associations d'Alpinisme
The UIAA or Union Internationale des Associations d'Alpinisme, is the organization that represents several million mountaineers and climbers, world-wide, on international issues. Formed in 1932 in Chamonix, France, it now has over 88 members associations from some 76 countries, all of national...
(UIAA) or European Committee for Standardization
European Committee for Standardization
The European Committee for Standardization or Comité Européen de Normalisation , is a non-profit organisation whose mission is to foster the European economy in global trading, the welfare of European citizens and the environment by providing an efficient infrastructure to interested parties for...
. There are two classifications of ice axe, Basic and Technical. Basic ice axes are designed for use in snow conditions for general mountaineering, and are adequate for basic support and self-arrest. Technical ice axes, which may have curved shafts, are used for steep or vertical ice climbing.
Components

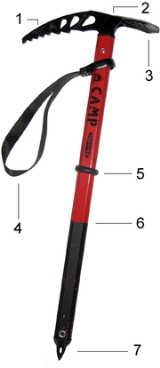

An ice axe consists of at least five components:- Head — usually made of steel and featuring a pickPickaxeA pickaxe or pick is a hand tool with a hard head attached perpendicular to the handle.Some people make the distinction that a pickaxe has a head with a pointed end and a flat end, and a pick has both ends pointed, or only one end; but most people use the words to mean the same thing.The head is...
and adzeAdzeAn adze is a tool used for smoothing or carving rough-cut wood in hand woodworking. Generally, the user stands astride a board or log and swings the adze downwards towards his feet, chipping off pieces of wood, moving backwards as they go and leaving a relatively smooth surface behind...
. A hole in the center is provided for attaching a wrist leash or carabinerCarabinerA carabiner or karabiner is a metal loop with a sprung or screwed gate that is used to quickly and reversibly connect components in safety-critical systems. The word comes from "Karabinerhaken", meaning "hook for a carbine" in German.-Use:...
. - Pick — the toothed pointed end of the head, typically slightly curved (aiding both in ergonomics and self-arrestSelf-arrestSelf-arrest is a mountaineering related maneuver in which a climber who has fallen and is sliding down a snow or ice slope arrests the slide by himself or herself without recourse to a rope or other belay system....
). - Adze — the flat, wide end of the head used for chopping steps in hard snow and ice.
- Shaft — straight or slightly angled, typically wider front-to-back than side-to-side, flat on the sides and smoothly rounded on the ends. Traditional shafts were made of wood, but are now almost exclusively of lightweight metals (such as aluminumAluminiumAluminium or aluminum is a silvery white member of the boron group of chemical elements. It has the symbol Al, and its atomic number is 13. It is not soluble in water under normal circumstances....
or titaniumTitaniumTitanium is a chemical element with the symbol Ti and atomic number 22. It has a low density and is a strong, lustrous, corrosion-resistant transition metal with a silver color....
) or composite (including fiberglassFiberglassGlass fiber is a material consisting of numerous extremely fine fibers of glass.Glassmakers throughout history have experimented with glass fibers, but mass manufacture of glass fiber was only made possible with the invention of finer machine tooling...
, KevlarKevlarKevlar is the registered trademark for a para-aramid synthetic fiber, related to other aramids such as Nomex and Technora. Developed at DuPont in 1965, this high strength material was first commercially used in the early 1970s as a replacement for steel in racing tires...
or carbonCarbonCarbon is the chemical element with symbol C and atomic number 6. As a member of group 14 on the periodic table, it is nonmetallic and tetravalent—making four electrons available to form covalent chemical bonds...
filamentFiberFiber is a class of materials that are continuous filaments or are in discrete elongated pieces, similar to lengths of thread.They are very important in the biology of both plants and animals, for holding tissues together....
). - Spike, or ferruleFerruleA ferrule is a name for types of metal objects, generally used for fastening, joining, or reinforcement...
— a steel point at the base of the shaft used for balance and safety when the axe is held by its head in walking stick fashion.
Accessories
Common ice axe accessories include:- Leash — nylon webbing with an adjustable loop for securing the axe to hand. Often secured by a ring constrained to slide a limited distance on the shaft.
- Leash stop — a rubber keeper or metal stud preventing the leash from slipping off of the ice axe.
- Snow basket — similar to baskets on ski poleSki poleSki poles are used by skiers to improve balance and timing. Early ski poles were simply sticks, then bamboo , then steel . In 1958, Ed Scott invented the aluminium ski pole...
s, temporarily mounted on the shaft close to the spike to keep the shaft from sinking into soft snow. - Pick and adze guard — a cover to protect from sharp edges and points when the axe is not being used.
- Spike guard — a cover to protect from the sharp spike when the axe is not being used.
Size
Ice-axe spike-to-head lengths generally range from 60 to 90 cm (or about 24 to 36 in.). This is too short to be used as a walking stick on level ground (the way its forebearer, the 5-foot (1.5 m) 19th century alpenstockAlpenstock
An alpenstock is a long wooden pole with an iron spike tip, used by shepherds for travel on snowfields and glaciers in the Alps since the Middle Ages. It is the antecedent of the modern ice axe.French-speaking climbers called this item a "baton"...
, was), but is ergonomic when ascending steep slopes. Ski mountaineers often carry shorter ice axes (50–55 cm) for emergency use if unexpected conditions are encountered.
History of the ice axe
Alpenstock
An alpenstock is a long wooden pole with an iron spike tip, used by shepherds for travel on snowfields and glaciers in the Alps since the Middle Ages. It is the antecedent of the modern ice axe.French-speaking climbers called this item a "baton"...
, a long wooden pole with an iron spike tip, used by shepherds for travel on snowfields and glaciers in the Alps
Alps
The Alps is one of the great mountain range systems of Europe, stretching from Austria and Slovenia in the east through Italy, Switzerland, Liechtenstein and Germany to France in the west....
since the Middle Ages
Middle Ages
The Middle Ages is a periodization of European history from the 5th century to the 15th century. The Middle Ages follows the fall of the Western Roman Empire in 476 and precedes the Early Modern Era. It is the middle period of a three-period division of Western history: Classic, Medieval and Modern...
. On August 8, 1786, Jacques Balmat
Jacques Balmat
Jacques Balmat, called le Mont Blanc was a mountaineer, a Savoyard mountain guide, and born a citizen of the Kingdom of Sardinia....
and Michel-Gabriel Paccard
Michel-Gabriel Paccard
thumb|Portrait of Michel Gabriel Paccard. Reproduced from an old portrait in the possession of M. J. P, Cachat, of Chamonix . From a photograph by Tairraz, of Chamonix...
made the first ascent of Mont Blanc
Mont Blanc
Mont Blanc or Monte Bianco , meaning "White Mountain", is the highest mountain in the Alps, Western Europe and the European Union. It rises above sea level and is ranked 11th in the world in topographic prominence...
. Balmat, a chamois
Chamois
The chamois, Rupicapra rupicapra, is a goat-antelope species native to mountains in Europe, including the Carpathian Mountains of Romania, the European Alps, the Tatra Mountains, the Balkans, parts of Turkey, and the Caucasus. The chamois has also been introduced to the South Island of New Zealand...
hunter and crystal collector, had experience with high mountain travel, and Paccard had made previous attempts to climb the peak. Illustrations show Balmat carrying two separate tools that would later be merged into the ice axe – an alpenstock (or baton) and a small axe that could be used to chop steps on icy slopes.
According to the earliest manufacturer of ice axes, Grivel
Grivel (mountain climbing)
Grivel Srl is a company that produces tools and equipment for alpinism, climbing and outdoor activities. It exports to 26 countries. All the personal safety products, ice axes, crampons, pitons, helmets are produced in Italy...
, these two tools were merged to create the first true ice axe around 1840. Early ice axes had a vertical adze, with the cutting edge aligned with the direction of the shaft, as in a conventional axe. This design lasted until at least 1860, but eventually the adze was rotated to the current position, perpendicular to the direction of the shaft. The Italian Alpine Club published a book in 1889 entitled Fiorio e Ratti – The dangers of mountaineering and rules to avoid them, which recommended ice axes as among "the inseparable companions of the mountaineer".
In the late 19th century, the typical ice axe shaft measured 120–130 cm in length. British climber Oscar Eckenstein
Oscar Eckenstein
Oscar Johannes Ludwig Eckenstein was an English rock climber and mountaineer, and a pioneer in the sport of bouldering...
started the trend toward shorter ice axes with a lighter model measuring 85–86 cm. Initially, this innovation was criticized by well-known climbers of the era, including Martin Conway, a prominent member of the Alpine Club
Alpine Club (UK)
The Alpine Club was founded in London in 1857 and was probably the world's first mountaineering club. It is UK mountaineering's acknowledged 'senior club'.-History:...
, who was the leader of an early expedition to the Baltoro
Baltoro Muztagh
The Baltoro Muztagh is a subrange of the Karakoram mountain range, in Baltistan region of the Gilgit-Baltistan province in northern Pakistan; and in Xinjiang, China. The crest of the range forms part of the Pakistan-China border....
region near K2
K2
K2 is the second-highest mountain on Earth, after Mount Everest...
in 1892 of which Eckenstein was a member.
Early ice axes had picks and adzes of about equal lengths. By the beginning of the 20th century, the pick lengthened to about twice the length of the adze. Improvements in crampon design (pioneered by Eckenstein in 1908) and ice climbing technique led to use of shorter, lighter ice axes appropriate to steeper ice climbs in the period between the world wars.
A famous rescue involving an ice axe took place during the Third American Karakoram Expedition
Third American Karakoram Expedition
The 1953 American Karakoram Expedition was a mountaineering expedition to K2, at 8,611 metres the second highest mountain on Earth. It was the fifth expedition to attempt K2, and the first since the Second World War...
to K2
K2
K2 is the second-highest mountain on Earth, after Mount Everest...
in 1953. One of the climbers, Art Gilkey
Art Gilkey
Art Gilkey was an American geologist and mountaineer. He explored Alaska in 1950 and 1952. He died during a 1953 American expedition to K2. Approaching the summit of the peak, he suffered from thrombophlebitis or possibly deep venous thrombosis, followed by pulmonary embolism...
, was incapacitated by a pulmonary embolism
Pulmonary embolism
Pulmonary embolism is a blockage of the main artery of the lung or one of its branches by a substance that has travelled from elsewhere in the body through the bloodstream . Usually this is due to embolism of a thrombus from the deep veins in the legs, a process termed venous thromboembolism...
. The other climbers attempted to rescue him by lowering him down the mountain by rope, wrapped in a sleeping bag. While crossing a steep ice sheet, a slip caused Gilkey and five other climbers to begin falling down a steep slope. Climber Pete Schoening
Pete Schoening
Peter K. Schoening was an American mountaineer. Schoening was one of two Americans to first successfully climb the Pakistani peak Gasherbrum I in 1958, and was one of the first to summit Mount Vinson in Antarctica in 1966. He was born July 30, 1927, in Seattle, Washington, and grew up in...
wedged his ice axe alongside a boulder, and managed to belay the roped climbers, saving their lives. However, Gilkey was swept away by an avalanche and was killed. Schoening's ice axe is now on display at the Bradford Washburn American Mountaineering Museum in Golden, Colorado
Golden, Colorado
The City of Golden is a home rule municipality that is the county seat of Jefferson County, Colorado, United States. Golden lies along Clear Creek at the edge of the foothills of the Front Range of the Rocky Mountains. Founded during the Pike's Peak Gold Rush on 16 June 1859, the mining camp was...
.
In 1966, Yvon Chouinard led a dramatic redesign of ice axes, working with a reluctant manufacturer Charlet to develop a 55-cm ice axe with a dramatically curved pick. Chouinard believed that "a curve compatible with the arc of the axe's swing would allow the pick to stay put better in the ice. I had noticed that a standard pick would often pop out when I placed my weight on it." Chouinard's idea worked and began a period of innovation in ice axe design.
In 1978, the Safety Commission of the Union Internationale des Associations d'Alpinisme
Union Internationale des Associations d'Alpinisme
The UIAA or Union Internationale des Associations d'Alpinisme, is the organization that represents several million mountaineers and climbers, world-wide, on international issues. Formed in 1932 in Chamonix, France, it now has over 88 members associations from some 76 countries, all of national...
(UIAA) established formal standards for ice axe safety and performance. This led to the replacement of the traditional wooden shaft by metal alloy shafts. Ergonomically curved handles became widespread in 1986. Use of modern aluminum alloys have led to a dramatic reduction in the weight of some ice axes. One model now on the market, the C.A.M.P.
CAMP (company)
rightCAMP is one of the world's leading manufacturers of equipment for climbing and associated activities such as ski mountaineering and industrial safety...
Corsa, weighs only 205 grams with a 50 cm long shaft. One expert rated this lightweight ice axe as "ideal for low angle glacier travel" but said he "craved the solid and secure heft of a true steel mountain ax" in more demanding steep alpine conditions.
Use as a weapon
A mountaineering ice axe, often incorrectly referred to as an "ice pick", was used in the assassination of Leon TrotskyLeon Trotsky
Leon Trotsky , born Lev Davidovich Bronshtein, was a Russian Marxist revolutionary and theorist, Soviet politician, and the founder and first leader of the Red Army....
by Ramón Mercader
Ramón Mercader
Jaime Ramón Mercader del Río Hernández was a Spanish communist who became famous as the murderer of Russian Communist ideologist Leon Trotsky in 1940, in Mexico...
in Mexico City in 1940. An ice axe was also used in the 2005 murder of Anthony Walker in the United Kingdom.
Attachment to rucksacks
On the frequently long approach to the snowline, or when the terrain does not warrant the use of an axe, it is common for ice axe(s) to be carried on a rucksack. Many rucksack models come with one ice axe loop (on the outside of the rucksack at its foot and generally in the middle), together with a device (a strap or a bungee cord) to attach it to the main body of the sack. Rucksacks with attachment points for two ice axes are also available (see example pictured), and these are popular for use with ice toolIce tool
An ice tool is a specialized elaboration of the modern ice axe , used in ice climbing, mostly for the more difficult configurations...
s.
