Mars Pathfinder was an American spacecraft that landed a base station with roving probe
Rover (space exploration)
A rover is a space exploration vehicle designed to move across the surface of a planet or other astronomical body. Some rovers have been designed to transport members of a human spaceflight crew; others have been partially or fully autonomous robots...

 on Mars
Mars
Mars is the fourth planet from the Sun in the Solar System. The planet is named after the Roman god of war, Mars. It is often described as the "Red Planet", as the iron oxide prevalent on its surface gives it a reddish appearance...

 in 1997. It consisted of a lander
Lander (spacecraft)
A lander is a spacecraft which descends toward and comes to rest on the surface of an astronomical body. For bodies with atmospheres, the landing is called atmospheric reentry and the lander descends as a re-entry vehicle...

, renamed the Carl Sagan Memorial Station, and a lightweight (10.6 kilograms/23 pounds) wheeled robot
Robot
A robot is a mechanical or virtual intelligent agent that can perform tasks automatically or with guidance, typically by remote control. In practice a robot is usually an electro-mechanical machine that is guided by computer and electronic programming. Robots can be autonomous, semi-autonomous or...

ic rover named Sojourner.

Launched on December 4, 1996 by NASA
NASA
The National Aeronautics and Space Administration is the agency of the United States government that is responsible for the nation's civilian space program and for aeronautics and aerospace research...

 aboard a Delta II
Delta II
Delta II was an American space launch system, originally designed and built by McDonnell Douglas. Delta II is part of the Delta rocket family and was in service from 1989 until November 1, 2011...

 booster a month after the Mars Global Surveyor
Mars Global Surveyor
The Mars Global Surveyor was a US spacecraft developed by NASA's Jet Propulsion Laboratory and launched November 1996. It began the United States's return to Mars after a 10-year absence. It completed its primary mission in January 2001 and was in its third extended mission phase when, on 2...

 was launched, it landed on July 4, 1997 on Mars
Mars
Mars is the fourth planet from the Sun in the Solar System. The planet is named after the Roman god of war, Mars. It is often described as the "Red Planet", as the iron oxide prevalent on its surface gives it a reddish appearance...

' Ares Vallis
Ares Vallis
Ares Vallis is an outflow channel on Mars, named after the Greek name for Mars: Ares, the god of war; it appears to have been carved by fluids, perhaps water...

, in a region called Chryse Planitia
Chryse Planitia
Chryse Planitia is a smooth circular plain in the northern equatorial region of Mars close to the Tharsis region to the west, centered at . Chryse Planitia lies partially in the Lunae Palus quadrangle and partially in the Oxia Palus quadrangle...

 in the Oxia Palus quadrangle
Oxia Palus quadrangle
The Oxia Palus quadrangle is one of a series of 30 quadrangle maps of Mars used by the United States Geological Survey Astrogeology Research Program. The Oxia Palus quadrangle is also referred to as MC-11 ....

. The lander
Lander (spacecraft)
A lander is a spacecraft which descends toward and comes to rest on the surface of an astronomical body. For bodies with atmospheres, the landing is called atmospheric reentry and the lander descends as a re-entry vehicle...

 then opened, exposing the rover which conducted many experiments on the Martian surface.
The mission carried a series of scientific instruments to analyze the Martian atmosphere, climate
Climate
Climate encompasses the statistics of temperature, humidity, atmospheric pressure, wind, rainfall, atmospheric particle count and other meteorological elemental measurements in a given region over long periods...

, geology
Geology
Geology is the science comprising the study of solid Earth, the rocks of which it is composed, and the processes by which it evolves. Geology gives insight into the history of the Earth, as it provides the primary evidence for plate tectonics, the evolutionary history of life, and past climates...

 and the composition of its rocks
Rock (geology)
In geology, rock or stone is a naturally occurring solid aggregate of minerals and/or mineraloids.The Earth's outer solid layer, the lithosphere, is made of rock. In general rocks are of three types, namely, igneous, sedimentary, and metamorphic...

 and soil. It was the second project from NASA's Discovery Program
Discovery Program
NASA's Discovery Program is a series of lower-cost, highly-focused American scientific space missions that are exploring the Solar System. It was founded in 1992 to implement then-NASA Administrator Daniel S. Goldin's vision of "faster, better, cheaper" planetary missions...

, which promotes the use of low-cost spacecraft and frequent launches under the motto "cheaper, faster and better" promoted by the then administrator, Daniel Goldin
Daniel Goldin
Daniel Saul Goldin served as the 9th and longest-tenured Administrator of NASA from April 1, 1992, to November 17, 2001. He was appointed by President George H. W. Bush and also served under President William Jefferson Clinton and George W...

. The mission was directed by the Jet Propulsion Laboratory
Jet Propulsion Laboratory
Jet Propulsion Laboratory is a federally funded research and development center and NASA field center located in the San Gabriel Valley area of Los Angeles County, California, United States. The facility is headquartered in the city of Pasadena on the border of La Cañada Flintridge and Pasadena...

 (JPL), a division of the California Institute of Technology
California Institute of Technology
The California Institute of Technology is a private research university located in Pasadena, California, United States. Caltech has six academic divisions with strong emphases on science and engineering...

, responsible for NASA's Mars Exploration Program
Exploration of Mars
The exploration of Mars has been an important part of the space exploration programs of the Soviet Union, the United States, Europe, and Japan. Dozens of robotic spacecraft, including orbiters, landers, and rovers, have been launched toward Mars since the 1960s...

. The project manager was JPL's Tony Spear
Tony Spear
Anthony Spear is an American space exploration project manager most notable for leading the Mars Pathfinder mission for JPL/NASA in 1996. He retired from JPL in 1998. He is now seeking the Google Lunar X Prize with Red Whittaker, Astrobotic, and Carnegie Mellon University, where he received a B.S...

.


This mission kicked off a series of missions to Mars that included rovers, and was the next successful lander since the two Vikings
Viking program
The Viking program consisted of a pair of American space probes sent to Mars, Viking 1 and Viking 2. Each spacecraft was composed of two main parts, an orbiter designed to photograph the surface of Mars from orbit, and a lander designed to study the planet from the surface...

landed on the red planet in 1976. Although the Soviet Union
Soviet Union
The Soviet Union , officially the Union of Soviet Socialist Republics , was a constitutionally socialist state that existed in Eurasia between 1922 and 1991....

 successfully sent rovers to the Moon as part of the Lunokhod program in the 1970s, its attempts to use rovers in its Mars probe program
Mars probe program
The Mars program was a series of unmanned spacecraft launched by the Soviet Union between 1960 and 1973. The spacecraft were intended to explore Mars, and included flyby probes, landers and orbiters....

 failed.

In addition to scientific objectives, the Mars Pathfinder mission was also a "proof-of-concept" for various technologies, such as airbag
Airbag
An Airbag is a vehicle safety device. It is an occupant restraint consisting of a flexible envelope designed to inflate rapidly during an automobile collision, to prevent occupants from striking interior objects such as the steering wheel or a window...

-mediated touchdown and automated obstacle avoidance, both later exploited by the Mars Exploration Rover
Mars Exploration Rover
NASA's Mars Exploration Rover Mission is an ongoing robotic space mission involving two rovers, Spirit and Opportunity, exploring the planet Mars...

s. The Mars Pathfinder was also remarkable for its extremely low price relative to other unmanned space missions to Mars. Originally, the mission was conceived as the first of the Mars Environmental Survey (MESUR) program.

Mission objectives


  • To prove that the development of "faster, better and cheaper" spacecraft was possible (with three years for development and a cost under $150 million).
  • To show that it was possible to send a load of scientific instruments to another planet with a simple system and at one fifteenth the cost of a Viking
    Viking program
    The Viking program consisted of a pair of American space probes sent to Mars, Viking 1 and Viking 2. Each spacecraft was composed of two main parts, an orbiter designed to photograph the surface of Mars from orbit, and a lander designed to study the planet from the surface...

     mission. (For comparison, the Viking missions cost $935 million in 1974 or $3.5 billion in 1997 dollars)
  • To demonstrate NASA's commitment to low-cost planetary exploration by finishing the mission with a total expenditure of $280 million, including the launch vehicle and mission operations.

Science experiments



The Mars Pathfinder conducted different investigations on the Martian soil using three scientific instruments. The lander contained a stereoscopic camera
Stereo camera
A stereo camera is a type of camera with two or more lenses with a separate image sensor or film frame for each lens. This allows the camera to simulate human binocular vision, and therefore gives it the ability to capture three-dimensional images, a process known as stereo photography. Stereo...

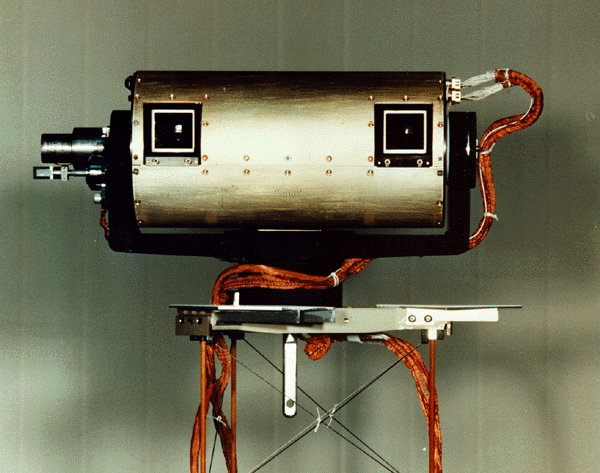

 with spatial filters on an expandable pole called Imager for Mars Pathfinder (IMP), and the Atmospheric Structure Instrument/Meteorology Package (ASI /MET) which acts as a Mars meteorological station, collecting data about pressure, temperature, and winds. The MET structure included three windsock
Windsock
A windsock is a conical textile tube designed to indicate wind direction and relative wind speed. Windsocks typically are used at airports and at chemical plants where there is risk of gaseous leakage...

s mounted at three heights on a pole, the topmost at about one meter (yard) and generally registered winds from the West.

The Sojourner rover had a Alpha Proton X-ray Spectrometer (APXS
APXS
An Alpha Particle X-Ray Spectrometer is a device that analyses the chemical element composition of a sample from the scattered alpha particles, emitted protons , and fluorescent X-rays after the sample is irradiated with alpha particles and X-rays from radioactive sources...

), which was used to analyze the components of the rocks and soil. The rover also had two black-and-white cameras and a color one. These instruments could investigate the geology of the Martian surface from just a few millimeters to many hundreds of meters, the geochemistry
Geochemistry
The field of geochemistry involves study of the chemical composition of the Earth and other planets, chemical processes and reactions that govern the composition of rocks, water, and soils, and the cycles of matter and energy that transport the Earth's chemical components in time and space, and...

 and evolutionary history of the rocks and surface, the magnetic and mechanical
Mechanics
Mechanics is the branch of physics concerned with the behavior of physical bodies when subjected to forces or displacements, and the subsequent effects of the bodies on their environment....

 properties of the land, as well as the magnetic properties of the dust, atmosphere and the rotation
Rotation
A rotation is a circular movement of an object around a center of rotation. A three-dimensional object rotates always around an imaginary line called a rotation axis. If the axis is within the body, and passes through its center of mass the body is said to rotate upon itself, or spin. A rotation...

al and orbit
Orbit
In physics, an orbit is the gravitationally curved path of an object around a point in space, for example the orbit of a planet around the center of a star system, such as the Solar System...

al dynamics of the planet. The rover had two black & white 0.3-megapixel cameras on the front (768 horizontal pixel
Pixel
In digital imaging, a pixel, or pel, is a single point in a raster image, or the smallest addressable screen element in a display device; it is the smallest unit of picture that can be represented or controlled....

s × 484 vertical pixels configured in 4 × 4 pixel blocks), coupled with five laser
Laser
A laser is a device that emits light through a process of optical amplification based on the stimulated emission of photons. The term "laser" originated as an acronym for Light Amplification by Stimulated Emission of Radiation...

 stripe projectors, which enabled stereoscopic
Stereoscopy
Stereoscopy refers to a technique for creating or enhancing the illusion of depth in an image by presenting two offset images separately to the left and right eye of the viewer. Both of these 2-D offset images are then combined in the brain to give the perception of 3-D depth...

 images to be taken along with measurements for hazard detection on the rover's path. On the back, near the APXS and rotated by 90°, there was a third camera of the same specifications which supported taking colour images. This back colour camera provided images of the APXS's target area and the rover's tracks on the ground, and had sensitivity to green (12 pixels out of the 16 total pixels in each 4 × 4 pixel block), red (2 pixels), and blue (2 pixels), with the blue-sensitive pixels being sensitive to infrared
Infrared
Infrared light is electromagnetic radiation with a wavelength longer than that of visible light, measured from the nominal edge of visible red light at 0.74 micrometres , and extending conventionally to 300 µm...

 as well. However, all cameras had zinc
Zinc
Zinc , or spelter , is a metallic chemical element; it has the symbol Zn and atomic number 30. It is the first element in group 12 of the periodic table. Zinc is, in some respects, chemically similar to magnesium, because its ion is of similar size and its only common oxidation state is +2...

-selenide
Selenide
A selenide is a chemical compound in which selenium serves as an anion with oxidation number of −2 , much as sulfur does in a sulfide. The chemistry of the selenides and sulfides are similar....

 lens which blocked blue light below 500 nm, thus only allowing infrared wavelength
Wavelength
In physics, the wavelength of a sinusoidal wave is the spatial period of the wave—the distance over which the wave's shape repeats.It is usually determined by considering the distance between consecutive corresponding points of the same phase, such as crests, troughs, or zero crossings, and is a...

s to reach the blue pixels. All three cameras were CCD
CCD
-Science:*Carbonate compensation depth, a property of oceans*Colony collapse disorder, a phenomenon involving the abrupt disappearance of the worker bees in a beehive or Western honey bee colony...

s manufactured by Eastman Kodak Company, and were controlled by the rover's CPU
Central processing unit
The central processing unit is the portion of a computer system that carries out the instructions of a computer program, to perform the basic arithmetical, logical, and input/output operations of the system. The CPU plays a role somewhat analogous to the brain in the computer. The term has been in...

. They all had auto-exposure and bad pixel handling capabilities, and the image parameters (exposure time, compression used, etc.) were included in the transmitted images as part of the image header. The rover could compress
Data compression
In computer science and information theory, data compression, source coding or bit-rate reduction is the process of encoding information using fewer bits than the original representation would use....

 the front cameras' images using the block truncation coding
Block Truncation Coding
Block Truncation Coding, or BTC, is a type of lossy image compression technique for greyscale images. It divides the original images into blocks and then uses a quantiser to reduce the number of grey levels in each block whilst maintaining the same mean and standard deviation...

 (BTC) algorithm, but it could only do the same for the back camera's images if the colour information was discarded. The cameras' optical resolution
Optical resolution
Optical resolution describes the ability of an imaging system to resolve detail in the object that is being imaged.An imaging system may have many individual components including a lens and recording and display components...

 was sufficient for resolving 0.6 cm details across a 0.65 m range.

Pathfinder lander

  1. Imager for Mars Pathfinder (IMP), (includes magnetometer
    Magnetometer
    A magnetometer is a measuring instrument used to measure the strength or direction of a magnetic field either produced in the laboratory or existing in nature...

     and anemometer
    Anemometer
    An anemometer is a device for measuring wind speed, and is a common weather station instrument. The term is derived from the Greek word anemos, meaning wind, and is used to describe any airspeed measurement instrument used in meteorology or aerodynamics...

    )
  2. Atmospheric and meteorological
    Meteorology
    Meteorology is the interdisciplinary scientific study of the atmosphere. Studies in the field stretch back millennia, though significant progress in meteorology did not occur until the 18th century. The 19th century saw breakthroughs occur after observing networks developed across several countries...

     sensors (ASI/MET)

Sojourner rover

  1. Imaging system (three cameras: front B&W stereo, 1 rear color)
  2. Laser
    Laser
    A laser is a device that emits light through a process of optical amplification based on the stimulated emission of photons. The term "laser" originated as an acronym for Light Amplification by Stimulated Emission of Radiation...

     striper hazard detection system
  3. Alpha Proton X-ray
    X-ray
    X-radiation is a form of electromagnetic radiation. X-rays have a wavelength in the range of 0.01 to 10 nanometers, corresponding to frequencies in the range 30 petahertz to 30 exahertz and energies in the range 120 eV to 120 keV. They are shorter in wavelength than UV rays and longer than gamma...

     Spectrometer
    Spectrometer
    A spectrometer is an instrument used to measure properties of light over a specific portion of the electromagnetic spectrum, typically used in spectroscopic analysis to identify materials. The variable measured is most often the light's intensity but could also, for instance, be the polarization...

     (APXS)
  4. Wheel Abrasion Experiment
  5. Material Adherence Experiment
  6. Accelerometer
    Accelerometer
    An accelerometer is a device that measures proper acceleration, also called the four-acceleration. This is not necessarily the same as the coordinate acceleration , but is rather the type of acceleration associated with the phenomenon of weight experienced by a test mass that resides in the frame...

    s

Landing site


The landing site was an ancient flood plain in Mars's northern hemisphere called "Ares Vallis
Ares Vallis
Ares Vallis is an outflow channel on Mars, named after the Greek name for Mars: Ares, the god of war; it appears to have been carved by fluids, perhaps water...

" ("the valley of Ares," the ancient Greek equivalent of the ancient Roman deity Mars) and is among the rockiest parts of Mars. Scientists chose it because they found it to be a relatively safe surface to land on and one that contained a wide variety of rocks deposited during a catastrophic flood. After the landing, at 19.13°N 33.22°W, succeeded, the landing site received the name The Carl Sagan
Carl Sagan
Carl Edward Sagan was an American astronomer, astrophysicist, cosmologist, author, science popularizer and science communicator in astronomy and natural sciences. He published more than 600 scientific papers and articles and was author, co-author or editor of more than 20 books...

 Memorial Station
in honor of the late astronomer
Astronomer
An astronomer is a scientist who studies celestial bodies such as planets, stars and galaxies.Historically, astronomy was more concerned with the classification and description of phenomena in the sky, while astrophysics attempted to explain these phenomena and the differences between them using...

.

Entry, descent and landing


Mars Pathfinder entered the Martian atmosphere and landed using an innovative system involving an entry capsule, a supersonic parachute
Parachute
A parachute is a device used to slow the motion of an object through an atmosphere by creating drag, or in the case of ram-air parachutes, aerodynamic lift. Parachutes are usually made out of light, strong cloth, originally silk, now most commonly nylon...

, followed by solid rockets and large airbags to cushion the impact.

Mars Pathfinder directly entered Mars atmosphere in a retrograde direction from a hyperbolic trajectory at 6.1 km/s using an atmospheric entry aeroshell (capsule) that was derived from the original Viking Mars lander design. The aeroshell consisted of a back shell and a specially designed ablative heatshield to slow to 370 m/s (830 MPH) where a supersonic disk-gap-band parachute was inflated to slow its descent through the thin Martian atmosphere to 68 m/s (about 160 MPH). The lander's on-board computer used redundant on-board accelerometers to determine the timing of the parachute inflation. Twenty seconds later the heatshield was pyrotechnically released. Another twenty seconds later the lander was separated and lowered from the backshell on a 20 m bridle (tether). When the lander reached 1.6 km above the surface, a radar was used by the on-board computer to determine altitude and descent velocity. This information was used by the computer to determine the precise timing of the landing events that followed.


Once the lander was 355 m above the ground, airbags were inflated in less than a second using three catalytically cooled solid rocket motors that served as gas generators. The airbags were made of 4 inter-connected multi-layer vectran
Vectran
Vectran is a manufactured fibre, spun from a liquid crystal polymer created by Celanese Acetate LLC and now manufactured by Kuraray Co., Ltd. Chemically it is an aromatic polyester produced by the polycondensation of 4-hydroxybenzoic acid and 6-hydroxynaphthalene-2-carboxylic acid.- Properties...

 bags that surrounded the tetrahedron lander. They were designed and tested to accommodate grazing angle impacts as high as 28 m/s. However, as the airbags were designed for no more than about 15 m/s vertical impacts, three solid retrorockets were mounted above the lander in the backshell. These were fired at 98 m above the ground. The lander's on-board computer estimated the best time to fire the rockets and cut the bridle so that the lander velocity would be reduced to about 0 m/s between 15 and 25 m above the ground. After 2.3 seconds, while the rockets were still firing, the lander cut the bridle loose about 21.5 m above the ground and fell to the ground. The rockets flew up and away with the backshell and parachute (they have since been sighted by orbital images). The lander impacted at 14 m/s and limited the impact to only 18 G of deceleration. The first bounce was 15.7 m high and continued bouncing for at least 15 additional bounces (accelerometer data recording did not continue through all of the bounces).

The entire entry, descent and landing (EDL) process was completed in 4 minutes.

Once the lander stopped rolling, the airbags deflated and retracted toward the lander using four winches mounted on the lander "petals". Designed to right itself from any initial orientation, the lander happened to roll right side up onto its base petal. 74 minutes after landing, the petals were deployed with Sojourner rover and the solar panels attached on the inside.

The lander arrived at night at 2:56:55 Mars local solar time (16:56:55 UTC) on July 4, 1997. The lander had to wait until sunrise to send its first digital signals and images to Earth. The landing site was located at 19.30° north latitude and 33.52° west longitude in Ares Vallis, only 19 kilometres southwest of the center of the 200 km wide landing site ellipse. During Sol 1 –or martian days– the lander took pictures and made some metereologic measurements. Once the data was received, the engineers realized that one of the airbags hadn't fully deflated and could be a problem for the forthcoming traverse of Sojourner's descent ramp. To solve the problem, they sent commands to the lander to raise one of its petals and perform additional retraction to flatten the airbag. The procedure was a success and on Sol 2, Sojourner was released, stood up and backed down one of two ramps.

The Mars Pathfinder entry descent and landing system design was used (with some modification) on the Mars Exploration Rover
Mars Exploration Rover
NASA's Mars Exploration Rover Mission is an ongoing robotic space mission involving two rovers, Spirit and Opportunity, exploring the planet Mars...

 mission. Likewise, many design aspects of the Sojourner rover (e.g. the rocker-bogie
Rocker-bogie
The Rocker-Bogie system is the suspension arrangement used in the Mars rovers introduced for the Mars Pathfinder and also used on the Mars Exploration Rover and Mars Science Laboratory missions. It is currently NASA's favored design....

 mobility architecture and the navigation algorithms) were also successfully used on the Mars Exploration Rover
Mars Exploration Rover
NASA's Mars Exploration Rover Mission is an ongoing robotic space mission involving two rovers, Spirit and Opportunity, exploring the planet Mars...

 mission.

Sojourner deployment


The Sojourner rover was the second space exploration rover
Rover (space exploration)
A rover is a space exploration vehicle designed to move across the surface of a planet or other astronomical body. Some rovers have been designed to transport members of a human spaceflight crew; others have been partially or fully autonomous robots...

 to reach another planet, and the first to be deployed. Sojourner's exit from the lander occurred on Sol 2, after its landing on July 4, 1997. As the next sols progressed it approached some rocks which were named (by the scientists) "Barnacle Bill
Barnacle Bill (Mars)
Barnacle Bill is a rock on Mars in Ares Vallis. It was the first rock on Mars analyzed by the Sojourner rover using its Alpha Proton X-ray Spectrometer...

", "Yogi
Yogi Rock
Yogi Rock is a rock on Mars that was discovered during the Mars Pathfinder mission in 1997, and named by Geoffrey A. Landis. The rocks found on the mission were named after famous icons and figures, and Yogi Rock was thought to resemble the head of a bear looking away from the spacecraft...

", and "Scooby Doo", after famous cartoon
Cartoon
A cartoon is a form of two-dimensional illustrated visual art. While the specific definition has changed over time, modern usage refers to a typically non-realistic or semi-realistic drawing or painting intended for satire, caricature, or humor, or to the artistic style of such works...

 characters. The rover made measurements of the elements found in those rocks and in the martian soil, while the lander took pictures of the Sojourner and the surrounding terrain, besides making climate observations.

The Sojourner is a six-wheeled 65 cm long vehicle, 48 cm wide, 30 cm tall and weighs 10.5 kg. When operating, it could move about 500 meters from the lander and its maximum speed reached one centimeter per second. During its 83 sols of operation, it sent 550 photographs to Earth and analyzed the chemical
Chemistry
Chemistry is the science of matter, especially its chemical reactions, but also its composition, structure and properties. Chemistry is concerned with atoms and their interactions with other atoms, and particularly with the properties of chemical bonds....

 properties of 16 locations near the lander.

Sojourner's rock analysis



The first analysis on a rock started on Sol 3 with Barnacle Bill. The Alpha Proton X-ray Spectrometer
APXS
An Alpha Particle X-Ray Spectrometer is a device that analyses the chemical element composition of a sample from the scattered alpha particles, emitted protons , and fluorescent X-rays after the sample is irradiated with alpha particles and X-rays from radioactive sources...

(APXS) was used to determine its composition, the spectrometer taking ten hours to make a full scan of the sample. It found all the elements except hydrogen
Hydrogen
Hydrogen is the chemical element with atomic number 1. It is represented by the symbol H. With an average atomic weight of , hydrogen is the lightest and most abundant chemical element, constituting roughly 75% of the Universe's chemical elemental mass. Stars in the main sequence are mainly...

, which constitutes just 0.1 percent of the rock's or soil's mass.

The APXS works by irradiating rocks and soil samples with alpha particle
Alpha particle
Alpha particles consist of two protons and two neutrons bound together into a particle identical to a helium nucleus, which is classically produced in the process of alpha decay, but may be produced also in other ways and given the same name...

s (helium
Helium
Helium is the chemical element with atomic number 2 and an atomic weight of 4.002602, which is represented by the symbol He. It is a colorless, odorless, tasteless, non-toxic, inert, monatomic gas that heads the noble gas group in the periodic table...

 nuclei
Atomic nucleus
The nucleus is the very dense region consisting of protons and neutrons at the center of an atom. It was discovered in 1911, as a result of Ernest Rutherford's interpretation of the famous 1909 Rutherford experiment performed by Hans Geiger and Ernest Marsden, under the direction of Rutherford. The...

, which consist of two proton
Proton
The proton is a subatomic particle with the symbol or and a positive electric charge of 1 elementary charge. One or more protons are present in the nucleus of each atom, along with neutrons. The number of protons in each atom is its atomic number....

s and two neutron
Neutron
The neutron is a subatomic hadron particle which has the symbol or , no net electric charge and a mass slightly larger than that of a proton. With the exception of hydrogen, nuclei of atoms consist of protons and neutrons, which are therefore collectively referred to as nucleons. The number of...

s). The results indicated that "Barnacle Bill" is much like Earth's andesite
Andesite
Andesite is an extrusive igneous, volcanic rock, of intermediate composition, with aphanitic to porphyritic texture. In a general sense, it is the intermediate type between basalt and dacite. The mineral assemblage is typically dominated by plagioclase plus pyroxene and/or hornblende. Magnetite,...

s, confirming past volcanic
Volcano
2. Bedrock3. Conduit 4. Base5. Sill6. Dike7. Layers of ash emitted by the volcano8. Flank| 9. Layers of lava emitted by the volcano10. Throat11. Parasitic cone12. Lava flow13. Vent14. Crater15...

 activity. The discovery of andesites shows that some Martian rocks have been remelted and reprocessed. On Earth, Andesite forms when magma sits in pockets of rock while some of the iron and magnesium settle out. Consequently, the final rock contains less iron and magnesiums and more silica. Volcanic rocks are usually classified by comparing the relative amount of alkalis (Na2O and K2O) with the amount of silica (SiO2). Andesite is different than the rocks found in meteorites that have come from Mars.

Analysis of the Yogi rock again using the APXS showed that it was a basalt
Basalt
Basalt is a common extrusive volcanic rock. It is usually grey to black and fine-grained due to rapid cooling of lava at the surface of a planet. It may be porphyritic containing larger crystals in a fine matrix, or vesicular, or frothy scoria. Unweathered basalt is black or grey...

ic rock, more primitive than Barnacle Bill. Yogi's shape and texture show that it was probably deposited there by a flood
Flood
A flood is an overflow of an expanse of water that submerges land. The EU Floods directive defines a flood as a temporary covering by water of land not normally covered by water...

.

Another rock, named Moe, was found to have certain marks on its surface, demonstrating erosion caused by the wind. Most rocks analyzed showed a high content of silicon
Silicon
Silicon is a chemical element with the symbol Si and atomic number 14. A tetravalent metalloid, it is less reactive than its chemical analog carbon, the nonmetal directly above it in the periodic table, but more reactive than germanium, the metalloid directly below it in the table...

. In another region known as Rock Garden, Sojourner encountered crescent moon-shaped dunes, which are similar to crescentic dunes on Earth.

By the time that final results of the mission were described in a series of articles in the journal Science (December 5, 1997), it was believed that the rock Yogi contained a coating of dust, but was similar to the rock Barnacle Bill. Calculations suggest that the two rocks contain mostly the minerals orthopyroxene (magnesium-iron silicate), feldspars (aluminum silicates of potassium, sodium, and calcium), quartz (silicon dioxide), with smaller amounts of magnetite, ilmenite, iron sulfide, and calcium phosphate.

On-board computer


The embedded
Embedded system
An embedded system is a computer system designed for specific control functions within a larger system. often with real-time computing constraints. It is embedded as part of a complete device often including hardware and mechanical parts. By contrast, a general-purpose computer, such as a personal...

 computer on board the Sojourner rover was based around the 100 kHz Intel 80C85 CPU
Central processing unit
The central processing unit is the portion of a computer system that carries out the instructions of a computer program, to perform the basic arithmetical, logical, and input/output operations of the system. The CPU plays a role somewhat analogous to the brain in the computer. The term has been in...

 with 512 KB
Kilobyte
The kilobyte is a multiple of the unit byte for digital information. Although the prefix kilo- means 1000, the term kilobyte and symbol KB have historically been used to refer to either 1024 bytes or 1000 bytes, dependent upon context, in the fields of computer science and information...

 of RAM and 176 KB of flash memory
Flash memory
Flash memory is a non-volatile computer storage chip that can be electrically erased and reprogrammed. It was developed from EEPROM and must be erased in fairly large blocks before these can be rewritten with new data...

 solid-state storage
Data storage device
thumb|200px|right|A reel-to-reel tape recorder .The magnetic tape is a data storage medium. The recorder is data storage equipment using a portable medium to store the data....

.

Lander operations


The lander sent more than 16,500 pictures and made 8.5 million measurements of the atmospheric pressure
Atmospheric pressure
Atmospheric pressure is the force per unit area exerted into a surface by the weight of air above that surface in the atmosphere of Earth . In most circumstances atmospheric pressure is closely approximated by the hydrostatic pressure caused by the weight of air above the measurement point...

, temperature and wind speed.

Results from Pathfinder



By taking multiple images of the sky at different distances from the sun, scientists were able to determine that the size of the particles in the pink haze was about one micrometer in radius. The color of some soils was similar to that of an iron oxyhydroxide phase which would support the theory of a warmer and wetter climate in the past.
Pathfinder carried a series of magnets to examine the magnetic component of the dust. Eventually, all but one of the magnets developed a coating of dust. Since the weakest magnet did not attract any soil, it was concluded that the airborne dust did not contain pure magnetite or just one type of maghemite. The dust probably was an aggregate possible cemented with ferric oxide (Fe2O3). Using much more sophisticated instruments, Mars Spirit Rover
Spirit rover
Spirit, MER-A , is a robotic rover on Mars, active from 2004 to 2010. It was one of two rovers of NASA's ongoing Mars Exploration Rover Mission. It landed successfully on Mars at 04:35 Ground UTC on January 4, 2004, three weeks before its twin, Opportunity , landed on the other side of the planet...

 found that magnetite could explain the magnetic nature of the dust and soil on Mars. Magnetite was found in the soil and that the most magnetic part of the soil was dark. Magnetite is very dark.

Using Doppler tracking and two-way ranging, scientists added earlier measurements from the Viking landers to determine that the non-hydrostatic component of the polar moment of inertia is due to the Tharsis bulge and that the interior is not melted. The central metallic core is between 1300 km and 2000 km in radius.

End of mission


Although the mission was programed to last a week to a month, it eventually lasted for almost three months. The final contact with Pathfinder was at 10:23 UTC on September 27, 1997. Although mission managers tried to restore contact during the following five months, the successful mission was terminated on March 10, 1998. After the landing, Pathfinder was renamed as the Sagan Memorial Station in honor of astronomer
Astronomy
Astronomy is a natural science that deals with the study of celestial objects and phenomena that originate outside the atmosphere of Earth...

 and planetologist Carl Sagan
Carl Sagan
Carl Edward Sagan was an American astronomer, astrophysicist, cosmologist, author, science popularizer and science communicator in astronomy and natural sciences. He published more than 600 scientific papers and articles and was author, co-author or editor of more than 20 books...

. The mission had exceeded its goals in the first month.

Mars Reconnaissance Orbiter
Mars Reconnaissance Orbiter
Mars Reconnaissance Orbiter is a NASA multipurpose spacecraft designed to conduct reconnaissance and Exploration of Mars from orbit...

 spotted Pathfinder in January 2007 (right).

Naming the rover


The name Sojourner was chosen for the Mars Pathfinder rover after a year-long, worldwide competition in which students up to 18 years old were invited to select a heroine and submit an essay about her historical accomplishments. The students were asked to address in their essays how a planetary rover named for their heroine would translate these accomplishments to the Martian environment.

Initiated in March 1994 by The Planetary Society of Pasadena, California, in cooperation with NASA's Jet Propulsion Laboratory (JPL), the contest got under way with an announcement in the January 1995 issue of the National Science Teachers Association's magazine Science and Children, circulated to 20,000 teachers and schools across the nation.

Valerie Ambroise, 12, of Bridgeport, Connecticut, submitted the winning essay about Sojourner Truth
Sojourner Truth
Sojourner Truth was the self-given name, from 1843 onward, of Isabella Baumfree, an African-American abolitionist and women's rights activist. Truth was born into slavery in Swartekill, New York, but escaped with her infant daughter to freedom in 1826. After going to court to recover her son, she...

, a black reformist who lived during the Civil War era. An abolitionist and champion of women's rights, Sojourner Truth, whose legal name was Isabella Van Wagener, made it her mission to "travel up and down the land," advocating the rights of all people to be free and the rights of women to participate fully in society. The name Sojourner was selected because it means "traveler." JPL scientists and engineers working on the Mars Pathfinder project and Planetary Society staff members reviewed the 3,500 total entries received from all over the world, including essays from students living in Canada, India, Israel, Japan, Mexico, Poland and Russia. Nearly 1,700 of the essays were submitted by students aged 5 to 18 years old.

The selection of winners from this group by representatives from JPL and NASA Headquarters was based on several factors: the quality and creativity of the essay, taking into consideration the age of each contestant, the appropriateness of the name for a Mars rover, and the knowledge of the heroine, and the understanding of the Pathfinder rover's mission conveyed in the essay.

The second place prize winner was Deepti Rohatgi, 18, of Rockville, Maryland, who proposed naming the rover after Marie Curie
Marie Curie
Marie Skłodowska-Curie was a physicist and chemist famous for her pioneering research on radioactivity. She was the first person honored with two Nobel Prizes—in physics and chemistry...

, a Polish-born chemist who won the Nobel Prize in 1911 for her discovery of the elements radium and polonium. The test model identical to Sojourner used on earth was named Marie Curie. The third place prize went to Adam Sheedy, 16, of Round Rock, Texas, who chose the late astronaut Judith Resnik as his namesake for the new rover.

Honors



  • In 1997, the Sojourner Team was awarded a JPL Award for Technical Excellence.
  • On October 21, 1997, at the Geological Society of America
    Geological Society of America
    The Geological Society of America is a nonprofit organization dedicated to the advancement of the geosciences. The society was founded in New York in 1888 by Alexander Winchell, John J. Stevenson, Charles H. Hitchcock, John R. Proctor and Edward Orton and has been headquartered at 3300 Penrose...

    's annual meeting in Salt Lake City, Utah
    Utah
    Utah is a state in the Western United States. It was the 45th state to join the Union, on January 4, 1896. Approximately 80% of Utah's 2,763,885 people live along the Wasatch Front, centering on Salt Lake City. This leaves vast expanses of the state nearly uninhabited, making the population the...

    , Sojourner was awarded honorary membership in the Planetary Geology Division of the society.
  • In 2003, Sojourner was inducted into the Robot Hall of Fame
    Robot Hall of Fame
    The Robot Hall of Fame was established in 2003 by the School of Computer Science at Carnegie Mellon University in Pittsburgh, Pennsylvania, USA. It is designed to honor both achievements in robotics technology and robots from science fiction that have served as creative inspiration in robotics...

    .
  • Images of Sojouner approaching Yogi Rock
    Yogi Rock
    Yogi Rock is a rock on Mars that was discovered during the Mars Pathfinder mission in 1997, and named by Geoffrey A. Landis. The rocks found on the mission were named after famous icons and figures, and Yogi Rock was thought to resemble the head of a bear looking away from the spacecraft...

     were used in the opening credits of the Star Trek: Enterprise
    Star Trek: Enterprise
    Star Trek: Enterprise is a science fiction television series. It follows the adventures of humanity's first warp 5 starship, the Enterprise, ten years before the United Federation of Planets shown in previous Star Trek series was formed.Enterprise premiered on September 26, 2001...

    science fiction television program, the first historical use in a science fiction film or television program of video taken on the surface of another planet.

See also

  • Exploration of Mars
    Exploration of Mars
    The exploration of Mars has been an important part of the space exploration programs of the Soviet Union, the United States, Europe, and Japan. Dozens of robotic spacecraft, including orbiters, landers, and rovers, have been launched toward Mars since the 1960s...

  • Atmospheric reentry
    Atmospheric reentry
    Atmospheric entry is the movement of human-made or natural objects as they enter the atmosphere of a celestial body from outer space—in the case of Earth from an altitude above the Kármán Line,...

  • Lunokhod program, 1970s Soviet lunar rovers
  • Mars Global Surveyor
    Mars Global Surveyor
    The Mars Global Surveyor was a US spacecraft developed by NASA's Jet Propulsion Laboratory and launched November 1996. It began the United States's return to Mars after a 10-year absence. It completed its primary mission in January 2001 and was in its third extended mission phase when, on 2...

    , Mars orbiter that arrived in 1997
  • Mars Exploration Rover
    Mars Exploration Rover
    NASA's Mars Exploration Rover Mission is an ongoing robotic space mission involving two rovers, Spirit and Opportunity, exploring the planet Mars...

    , Mars rovers that arrived in 2003/4

External links
