cement mill is the equipment used to grind the hard, nodular
clinkerthumb|200px|right|Typical clinker nodulesthumb|200px|right|Hot clinkerIn the manufacture of Portland cement, clinker is lumps or nodules, usually 3-25 mm in diameter, produced by sintering limestone and alumino-silicate during the cement kiln stage.-Uses:...
from the
cement kilnCement kilns are used for the pyroprocessing stage of manufacture of Portland and other types of hydraulic cement, in which calcium carbonate reacts with silica-bearing minerals to form a mixture of calcium silicates...
into the fine grey powder that is
cementIn the most general sense of the word, a cement is a binder, a substance that sets and hardens independently, and can bind other materials together. The word "cement" traces to the Romans, who used the term opus caementicium to describe masonry resembling modern concrete that was made from crushed...
. Most cement is currently ground in
ball millA ball mill is a type of grinder used to grind materials into extremely fine powder for use in mineral dressing processes, paints, pyrotechnics, and ceramics.-Description:...
s.
History
Early hydraulic cements, such as those of
James ParkerJames Parker was a British clergyman and cement manufacturer who invented one of the pioneering new cements of the late eighteenth century.In 1791, he was granted a patent "Method of Burning bricks, Tiles, Chalk"...
,
James FrostJames Frost was a British cement manufacturer who invented processes that led to the eventual development of Portland cement.- Biography :...
and
Joseph AspdinJoseph Aspdin was a British cement manufacturer who obtained the patent for Portland cement on 21 October 1824....
were relatively soft and readily ground by the primitive technology of the day, using flat
millstoneMillstones or mill stones are used in windmills and watermills, including tide mills, for grinding wheat or other grains.The type of stone most suitable for making millstones is a siliceous rock called burrstone , an open-textured, porous but tough, fine-grained sandstone, or a silicified,...
s. The emergence of
Portland cementPortland cement is the most common type of cement in general use around the world because it is a basic ingredient of concrete, mortar, stucco and most non-specialty grout...
in the 1840s made grinding considerably more difficult, because the clinker produced by the kiln is often as hard as the millstone material. Because of this, cement continued to be ground very coarsely (typically 20% over 100 μm particle diameter) until better grinding technology became available. Besides producing un-reactive cement with slow strength growth, this exacerbated the problem of unsoundness. This late, disruptive expansion is caused by hydration of large particles of
calcium oxideCalcium oxide , commonly known as quicklime or burnt lime, is a widely used chemical compound. It is a white, caustic, alkaline crystalline solid at room temperature....
. Fine grinding lessens this effect, and early cements had to be stored for several months to give the calcium oxide time to hydrate before it was fit for sale. From 1885 onward, the development of specialized
steelSteel is an alloy that consists mostly of iron and has a carbon content between 0.2% and 2.1% by weight, depending on the grade. Carbon is the most common alloying material for iron, but various other alloying elements are used, such as manganese, chromium, vanadium, and tungsten...
led to the development of new forms of grinding equipment, and from this point onward, the typical fineness of cement began a steady rise. The progressive reduction in the proportion of larger, un-reactive cement particles has been partially responsible for the fourfold increase in the strength of
Portland cementPortland cement is the most common type of cement in general use around the world because it is a basic ingredient of concrete, mortar, stucco and most non-specialty grout...
during the twentieth century. The recent history of the technology has been mainly concerned with reducing the energy consumption of the grinding process.
Materials ground
Portland clinker is the main constituent of most cements. In Portland cement, a little
calcium sulfateCalcium sulfate is a common laboratory and industrial chemical. In the form of γ-anhydrite , it is used as a desiccant. It is also used as a coagulant in products like tofu. In the natural state, unrefined calcium sulfate is a translucent, crystalline white rock...
(typically 3-10%) is added in order to retard the hydration of
tricalcium aluminateTricalcium aluminate Ca3Al2O6, often formulated as 3CaO·Al2O3 to highlight the proportions of the oxides from which it is made, is the most basic of the calcium aluminates...
. The calcium sulfate may consist of natural
gypsumGypsum is a very soft sulfate mineral composed of calcium sulfate dihydrate, with the chemical formula CaSO4·2H2O. It is found in alabaster, a decorative stone used in Ancient Egypt. It is the second softest mineral on the Mohs Hardness Scale...
,
anhydriteAnhydrite is a mineral – anhydrous calcium sulfate, CaSO4. It is in the orthorhombic crystal system, with three directions of perfect cleavage parallel to the three planes of symmetry. It is not isomorphous with the orthorhombic barium and strontium sulfates, as might be expected from the...
, or synthetic wastes such as
flue gas desulfurizationSulfur dioxide is one of the elements forming acid rain. Tall flue-gas stacks disperse emissions by diluting the pollutants in ambient air and transporting them to other regions....
gypsum. In addition, up to 5%
calcium carbonateCalcium carbonate is a chemical compound with the formula CaCO3. It is a common substance found in rocks in all parts of the world, and is the main component of shells of marine organisms, snails, coal balls, pearls, and eggshells. Calcium carbonate is the active ingredient in agricultural lime,...
and up to 1% of other minerals may be added. It is normal to add a certain amount of water, and small quantities of organic grinding aids and performance enhancers. "Blended cements" and Masonry cements may include large additions (up to 40%) of natural
pozzolanA pozzolan is a material which, when combined with calcium hydroxide, exhibits cementitious properties. Pozzolans are commonly used as an addition to Portland cement concrete mixtures to increase the long-term strength and other material properties of Portland cement concrete, and in some cases...
s,
fly ashFly ash is one of the residues generated in combustion, and comprises the fine particles that rise with the flue gases. Ash which does not rise is termed bottom ash. In an industrial context, fly ash usually refers to ash produced during combustion of coal...
,
limestoneLimestone is a sedimentary rock composed largely of the minerals calcite and aragonite, which are different crystal forms of calcium carbonate . Many limestones are composed from skeletal fragments of marine organisms such as coral or foraminifera....
,
silica fumeSilica fume, also known as microsilica, is a fine-grain, thin, and very high surface area silica.It is sometimes confused with fumed silica and colloidal silica...
or
metakaolinMetakaolin is a dehydroxylated form of the clay mineral kaolinite.Rocks that are rich in kaolinite are known as china clay or kaolin, traditionally used in the manufacture of porcelain. The particle size of metakaolin is smaller than cement particles, but not as fine as silica fume.-Forming...
. Blastfurnace slag cement may include up to 70%
ground granulated blast furnace slagGround-granulated blast-furnace slag is obtained by quenching molten iron slag from a blast furnace in water or steam, to produce a glassy, granular product that is then dried and ground into a fine powder.-Applications:GGBS is used to make durable concrete structures in combination with ordinary...
. See
cementIn the most general sense of the word, a cement is a binder, a substance that sets and hardens independently, and can bind other materials together. The word "cement" traces to the Romans, who used the term opus caementicium to describe masonry resembling modern concrete that was made from crushed...
. Gypsum and calcium carbonate are relatively soft minerals, and rapidly grind to ultra-fine particles. Grinding aids are typically chemicals added at a rate of 0.01-0.03% that coat the newly formed surfaces of broken mineral particles and prevent re-agglomeration. They include 1,2-propanediol,
acetic acidAcetic acid is an organic compound with the chemical formula CH3CO2H . It is a colourless liquid that when undiluted is also called glacial acetic acid. Acetic acid is the main component of vinegar , and has a distinctive sour taste and pungent smell...
,
triethanolamineTriethanolamine, often abbreviated as TEA, is an organic chemical compound which is both a tertiary amine and a triol. A triol is a molecule with three alcohol groups. Like other amines, triethanolamine is a strong base due to the lone pair of electrons on the nitrogen atom. Triethanolamine can...
and
lignosulfonatesLignosulfonates, or sulfonated lignin, are water-soluble anionic polyelectrolyte polymers: they are byproducts from the production of wood pulp using sulfite pulping....
.
Temperature control
Heat generated in the grinding process causes gypsum (CaSO
4.2H
2O) to lose water, forming bassanite (CaSO
4.0.2-0.7H
2O) or γ-anhydrite (CaSO
4.~0.05H
2O). The latter minerals are rapidly soluble, and about 2% of these in cement is needed to control
tricalcium aluminateTricalcium aluminate Ca3Al2O6, often formulated as 3CaO·Al2O3 to highlight the proportions of the oxides from which it is made, is the most basic of the calcium aluminates...
hydration. If more than this amount forms, crystallization of gypsum on their re-hydration causes "false set" - a sudden thickening of the cement mix a few minutes after mixing, which thins out on re-mixing. High milling temperature causes this. On the other hand, if milling temperature is too low, insufficient rapidly soluble sulfate is available and this causes "flash set" - an irreversible stiffening of the mix. Obtaining the optimum amount of rapidly soluble sulfate requires milling with a mill exit temperature within a few degrees of 115 °C. Where the milling system is too hot, some manufacturers use 2.5% gypsum and the remaining calcium sulfate as natural α-anhydrite (CaSO
4). Complete dehydration of this mixture yields the optimum 2% γ-anhydrite. In the case of some efficient modern mills, insufficient heat is generated. This is corrected by recirculating part of the hot exhaust air to the mill inlet.
Ball Mills

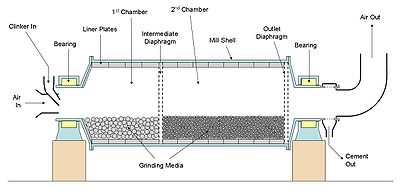

A ball mill is a horizontal cylinder partly filled with steel balls (or occasionally other shapes) that rotates on its axis, imparting a tumbling and cascading action to the balls. Material fed through the mill is crushed by impact and ground by attrition between the balls. The grinding media are usually made of high-
chromiumChromium is a chemical element which has the symbol Cr and atomic number 24. It is the first element in Group 6. It is a steely-gray, lustrous, hard metal that takes a high polish and has a high melting point. It is also odorless, tasteless, and malleable...
steelSteel is an alloy that consists mostly of iron and has a carbon content between 0.2% and 2.1% by weight, depending on the grade. Carbon is the most common alloying material for iron, but various other alloying elements are used, such as manganese, chromium, vanadium, and tungsten...
. The smaller grades are occasionally cylindrical ("pebs") rather than spherical. There exists a speed of rotation (the "critical speed") at which the contents of the mill would simply ride over the roof of the mill due to centrifugal action. The critical speed (rpm) is given by:
nC = 42.29/√
d, where
d is the internal diameter in metres.
Ball mills are normally operated at around 75% of critical speed, so a mill with diameter 5 metres will turn at around 14 rpm.
The mill is usually divided into at least two chambers,(Depends upon feed input size presently mill installed with Roller Press are mostly single chambered), allowing the use of different sizes of grinding media. Large balls are used at the inlet, to crush clinker nodules (which can be over 25 mm in diameter). Ball diameter here is in the range 60-80 mm. In a two-chamber mill, the media in the second chamber are typically in the range 15-40 mm, although media down to 5 mm are sometimes encountered. As a general rule, the size of media has to match the size of material being ground: large media can't produce the ultra-fine particles required in the finished cement, but small media can't break large clinker particles. Mills with as many as four chambers, allowing a tight segregation of media sizes, were once used, but this is now becoming rare. Alternatives to multi-chamber mills are:
- pairs of mills, run in tandem, charged with different-sized media.
- use of alternative technology (see Roll-presses below) to crush the clinker prior to fine-grinding in a ball mill.
A current of air is passed through the mill. This helps keep the mill cool, and sweeps out evaporated moisture which would otherwise cause hydration and disrupt material flow. The dusty exhaust air is cleaned, usually with bag filters.

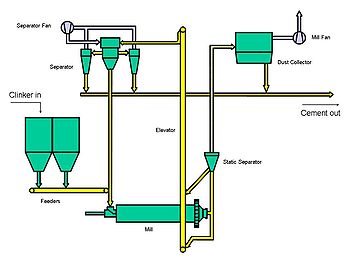

Closed-circuit systems
The efficiency of the early stages of grinding in a ball mill is much greater than that for formation of ultra-fine particles, so ball mills operate most efficiently by making a coarse product, the fine fractions of this then being separated, and the coarse part being returned to the mill inlet. The proportion of the mill-exit material returned to the inlet may vary from 10-30% when ordinary cement is being ground, to 85-95% for extremely fine cement products. It is important for system efficiency that the minimum amount of material of finished-product fineness is returned to the inlet. Modern separators are capable of making a very precise size "cut" and contribute significantly to the reduction of energy consumption, and have the additional advantage that they cool both the product and the returned material, thus minimizing overheating.
Efficient closed-circuit systems, because of their tight particle size control, lead to cements with relatively narrow
particle size distributionThe particle-size distribution of a powder, or granular material, or particles dispersed in fluid, is a list of values or a mathematical function that defines the relative amounts of particles present, sorted according to size...
s (i.e. for a given mean particle size, they have fewer large and small particles). This is of advantage in that it maximizes the strength-production potential the clinker, because large particles are inert. As a rule of thumb, only the outer 7 μm "skin" of each particle hydrates in concrete, so any particle over 14 μm diameter always leaves an un-reacted core. However, the lack of ultra-fine particles can be a disadvantage. These particles normally pack the spaces between the larger particles in a cement paste, and if absent the deficit is made up with extra water, leading to lower strength. This can be remedied by including 5%
calcium carbonateCalcium carbonate is a chemical compound with the formula CaCO3. It is a common substance found in rocks in all parts of the world, and is the main component of shells of marine organisms, snails, coal balls, pearls, and eggshells. Calcium carbonate is the active ingredient in agricultural lime,...
in the cement: this soft mineral produces adequate ultra-fines on the first pass through the mill.
Clinker hardness
The hardness of clinker is important for the energy cost of the grinding process. It depends both on the clinker's mineral composition and its thermal history. The easiest-ground clinker mineral is
aliteAlite is a name for tricalcium silicate, Ca3SiO5, sometimes formulated as 3CaO·SiO2 . It is the major, and characteristic, mineral phase in Portland cement. The name was given by Törneborn in 1897 to a crystal identified in microscopic investigation of Portland cement...
, so high-alite clinkers reduce grinding costs, although they are more expensive to make in the kiln. The toughest mineral is
beliteBelite is an industrial mineral important in Portland cement manufacture, a name for dicalcium silicate, Ca2SiO4, sometimes formulated as 2 CaO · SiO2 ....
, because it is harder, and is somewhat plastic, so that crystals tend to flatten rather than shatter when impacted in the mill. The mode of burning of the clinker is also important. Clinker rapidly burned at the minimum temperature for combination, then rapidly cooled, contains small, defective crystals that grind easily. These crystals are usually also optimal for reactivity. On the other hand, long burning at excess temperature, and slow cooling, lead to large, well-formed crystals that are hard to grind and un-reactive. The effect of such a clinker can be to double milling costs.
Roller mills
These have been used for many years for the less exacting raw-milling process, but recently roller mills, in combination with high-efficiency separators, have been used for cement grinding. The grinding action employs much greater stress on the material than in a ball mill, and is therefore more efficient. Energy consumption is typically half that of a ball mill. However, the narrowness of the particle size distribution of the cement is problematic, and the process has yet to receive wide acceptance.
High-pressure roll presses
These consist of a pair of rollers set 8-30 mm apart and counter-rotating with surface speed around 0.9 - 1.8 m.s
-1. The bearings of the rollers are designed to deliver a pressure of 50 MPa or more. The bed of material drawn between the rollers emerges as a slab-like agglomeration of highly fractured particles. The energy efficiency of this process is comparatively high. Systems have been designed, including a de-agglomerator and separator, that will deliver material of cement fineness. However, particle size distribution is again a problem, and roll presses are now increasingly popular as a "pre-grind" process, with the cement finished in a single chamber ball mill. This gives good cement performance, and reduces energy consumption by 20-40% compared with a standard ball mill system.
Capacity of cement mills
The cement mills on a cement plant are usually sized for a clinker consumption considerably greater than the output of the plant's kilns. This is for two reasons:
- The mills are sized to cope with peaks in market demand for cement. In temperate countries, the summer demand for cement is usually much higher than that in winter. Excess clinker produced in winter goes into storage in readiness for summer demand peaks. For this reason, plants with highly seasonal demand usually have very large clinker stores.

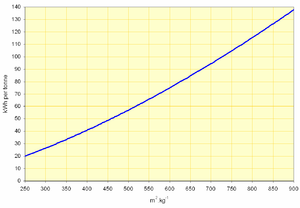

- Cement milling is the largest user of electric power on a cement plant, and because they can easily be started and stopped, it often pays to operate cement mills only during "off-peak" periods when cheaper power is available. This is also favourable for electricity producers, who can negotiate power prices with major users in order to balance their generating capacity over 24 hours. More sophisticated arrangements such as "power shedding" are often employed. This consists of the cement manufacturer shutting down the plant at short notice when the power supplier expects a critical demand peak, in return for favourable prices. Clearly, plenty of excess cement milling capacity is needed in order to "catch up" after such interruptions.
Control of product quality
In addition to control of temperature (mentioned above), the main requirement is to obtain a consistent fineness of the product. From the earliest times, fineness was measured by
sievingA sieve analysis is a practice or procedure used to assess the particle size distribution of a granular material....
the cement. As cements have become finer, the use of sieves is less applicable, but the amount retained on a 45 μm sieve is still measured, usually by air-jet sieving or wet-sieving. The amount passing this sieve (typically 95% in modern general-purpose cements) is related to the overall strength-development potential of the cement, because the larger particles are essentially unreactive.
The main measure of fineness today is
specific surfaceThe air permeability specific surface of a powder material is a single-parameter measurement of the fineness of the powder. The specific surface is derived from the resistance to flow of air through a porous bed of the powder...
. Because cement particles react with water at their surface, the specific surface area is directly related to the cement's initial reactivity. By adjusting the fineness of grind, the manufacture can produce a range of products from a single clinker. Tight control of fineness is necessary in order to obtain cement with the desired consistent day-to-day performance, so round-the-clock measurements are made on the cement as it is produced, and mill feed-rates and separator settings are adjusted to maintain constant specific surface.
A more comprehensive picture of fineness is given by
particle size analysisThe particle-size distribution of a powder, or granular material, or particles dispersed in fluid, is a list of values or a mathematical function that defines the relative amounts of particles present, sorted according to size...
, yielding a measure of the amount of each size range present, from sub-micrometer upwards. This used to be mainly a research tool, but with the advent of cheap, industrialized laser-diffraction analyzers, its use for routine control is becoming more frequent. This may take the form of a desk-top analyzer fed with automatically gathered samples in a robotized laboratory, or, increasingly commonly, instruments attached directly to the output ducts of the mill. In either case, the results can be fed directly into the mill control system, allowing complete automation of fineness control.
In addition to fineness, added materials in the cement must be controlled. In the case of gypsum addition, the material used is frequently of variable quality, and it is normal practise to measure the sulfate content of the cement regularly, typically by
x-ray fluorescenceX-ray fluorescence is the emission of characteristic "secondary" X-rays from a material that has been excited by bombarding with high-energy X-rays or gamma rays...
, using the results to adjust the gypsum feed rate. Again, this process is often completely automated. Similar measurement and control protocols are applied to other materials added, such as limestone, slag and fly-ash.
