Portland cement is the most common type of
cementIn the most general sense of the word, a cement is a binder, a substance that sets and hardens independently, and can bind other materials together. The word "cement" traces to the Romans, who used the term opus caementicium to describe masonry resembling modern concrete that was made from crushed...
in general use around the world because it is a basic ingredient of
concreteConcrete is a composite construction material, composed of cement and other cementitious materials such as fly ash and slag cement, aggregate , water and chemical admixtures.The word concrete comes from the Latin word...
,
mortarMortar is a workable paste used to bind construction blocks together and fill the gaps between them. The blocks may be stone, brick, cinder blocks, etc. Mortar becomes hard when it sets, resulting in a rigid aggregate structure. Modern mortars are typically made from a mixture of sand, a binder...
,
stuccoStucco or render is a material made of an aggregate, a binder, and water. Stucco is applied wet and hardens to a very dense solid. It is used as decorative coating for walls and ceilings and as a sculptural and artistic material in architecture...
and most non-specialty
groutGrout is a construction material used to embed rebars in masonry walls, connect sections of pre-cast concrete, fill voids, and seal joints . Grout is generally composed of a mixture of water, cement, sand, often color tint, and sometimes fine gravel...
. It is a fine
powderA powder is a dry,thick bulk solid composed of a large number of very fine particles that may flow freely when shaken or tilted. Powders are a special sub-class of granular materials, although the terms powder and granular are sometimes used to distinguish separate classes of material...
produced by grinding Portland cement
clinkerthumb|200px|right|Typical clinker nodulesthumb|200px|right|Hot clinkerIn the manufacture of Portland cement, clinker is lumps or nodules, usually 3-25 mm in diameter, produced by sintering limestone and alumino-silicate during the cement kiln stage.-Uses:...
(more than 90%), a limited amount of
calcium sulfateCalcium sulfate is a common laboratory and industrial chemical. In the form of γ-anhydrite , it is used as a desiccant. It is also used as a coagulant in products like tofu. In the natural state, unrefined calcium sulfate is a translucent, crystalline white rock...
(which controls the set time) and up to 5% minor constituents as allowed by various standards such as the
European StandardThe European Committee for Standardization or Comité Européen de Normalisation , is a non-profit organisation whose mission is to foster the European economy in global trading, the welfare of European citizens and the environment by providing an efficient infrastructure to interested parties for...
EN197-1:
(The last two requirements were already set out in the German Standard, issued in 1909).
ASTM C 150 defines portland cement as "hydraulic cement (cement that not only hardens by reacting with water but also forms a water-resistant product) produced by pulverizing clinkers consisting essentially of hydraulic calcium silicates, usually containing one or more of the forms of calcium sulfate as an inter ground addition." Clinkers are nodules (diameters, 0.2-1.0 inch [5–25 mm]) of a sintered material that is produced when a raw mixture of predetermined composition is heated to high temperature. The low cost and widespread availability of the limestone, shales, and other naturally occurring materials make portland cement one of the lowest-cost materials widely used over the last century throughout the world. Concrete becomes one of the most versatile construction materials available in the world.
Portland cement clinker is made by heating, in a
kilnCement kilns are used for the pyroprocessing stage of manufacture of Portland and other types of hydraulic cement, in which calcium carbonate reacts with silica-bearing minerals to form a mixture of calcium silicates...
, a homogeneous mixture of raw materials to a
sinteringSintering is a method used to create objects from powders. It is based on atomic diffusion. Diffusion occurs in any material above absolute zero, but it occurs much faster at higher temperatures. In most sintering processes, the powdered material is held in a mold and then heated to a temperature...
temperature, which is about 1450 °C for modern cements. The aluminium oxide and iron oxide are present as a
fluxIn metallurgy, a flux , is a chemical cleaning agent, flowing agent, or purifying agent. Fluxes may have more than one function at a time...
and contribute little to the strength. For special cements, such as Low Heat (LH) and Sulfate Resistant (SR) types, it is necessary to limit the amount of
tricalcium aluminateTricalcium aluminate Ca3Al2O6, often formulated as 3CaO·Al2O3 to highlight the proportions of the oxides from which it is made, is the most basic of the calcium aluminates...
(3 CaO·Al
2O
3) formed. The major raw material for the clinker-making is usually
limestoneLimestone is a sedimentary rock composed largely of the minerals calcite and aragonite, which are different crystal forms of calcium carbonate . Many limestones are composed from skeletal fragments of marine organisms such as coral or foraminifera....
(CaCO
3) mixed with a second material containing clay as source of alumino-silicate. Normally, an impure limestone which contains clay or SiO
2 is used. The CaCO
3 content of these limestones can be as low as 80%. Second raw materials (materials in the rawmix other than limestone) depend on the purity of the limestone. Some of the second raw materials used are
clayClay is a general term including many combinations of one or more clay minerals with traces of metal oxides and organic matter. Geologic clay deposits are mostly composed of phyllosilicate minerals containing variable amounts of water trapped in the mineral structure.- Formation :Clay minerals...
,
shaleShale is a fine-grained, clastic sedimentary rock composed of mud that is a mix of flakes of clay minerals and tiny fragments of other minerals, especially quartz and calcite. The ratio of clay to other minerals is variable. Shale is characterized by breaks along thin laminae or parallel layering...
,
sandSand is a naturally occurring granular material composed of finely divided rock and mineral particles.The composition of sand is highly variable, depending on the local rock sources and conditions, but the most common constituent of sand in inland continental settings and non-tropical coastal...
,
iron ore,
bauxiteBauxite is an aluminium ore and is the main source of aluminium. This form of rock consists mostly of the minerals gibbsite Al3, boehmite γ-AlO, and diaspore α-AlO, in a mixture with the two iron oxides goethite and hematite, the clay mineral kaolinite, and small amounts of anatase TiO2...
,
fly ashFly ash is one of the residues generated in combustion, and comprises the fine particles that rise with the flue gases. Ash which does not rise is termed bottom ash. In an industrial context, fly ash usually refers to ash produced during combustion of coal...
and
slagSlag is a partially vitreous by-product of smelting ore to separate the metal fraction from the unwanted fraction. It can usually be considered to be a mixture of metal oxides and silicon dioxide. However, slags can contain metal sulfides and metal atoms in the elemental form...
. When a
cement kilnCement kilns are used for the pyroprocessing stage of manufacture of Portland and other types of hydraulic cement, in which calcium carbonate reacts with silica-bearing minerals to form a mixture of calcium silicates...
is fired by coal, the ash of the coal acts as a secondary raw material.
History
Portland cement was developed from natural cements made in
BritainThe United Kingdom of Great Britain and Northern IrelandIn the United Kingdom and Dependencies, other languages have been officially recognised as legitimate autochthonous languages under the European Charter for Regional or Minority Languages...
in the early part of the nineteenth century, and its name is derived from its similarity to
Portland stonePortland stone is a limestone from the Tithonian stage of the Jurassic period quarried on the Isle of Portland, Dorset. The quarries consist of beds of white-grey limestone separated by chert beds. It has been used extensively as a building stone throughout the British Isles, notably in major...
, a type of building stone that was quarried on the
Isle of PortlandThe Isle of Portland is a limestone tied island, long by wide, in the English Channel. Portland is south of the resort of Weymouth, forming the southernmost point of the county of Dorset, England. A tombolo over which runs the A354 road connects it to Chesil Beach and the mainland. Portland and...
in
DorsetDorset , is a county in South West England on the English Channel coast. The county town is Dorchester which is situated in the south. The Hampshire towns of Bournemouth and Christchurch joined the county with the reorganisation of local government in 1974...
, England.
The Portland cement is considered to originate from
Joseph AspdinJoseph Aspdin was a British cement manufacturer who obtained the patent for Portland cement on 21 October 1824....
, a British
bricklayerA bricklayer or mason is a craftsman who lays bricks to construct brickwork. The term also refers to personnel who use blocks to construct blockwork walls and other forms of masonry. In British and Australian English, a bricklayer is colloquially known as a "brickie".The training of a trade in...
from Leeds. It was one of his employees (Isaac Johnson), however, who developed the production technique, which resulted in a more fast-hardening cement with a higher
compressive strengthCompressive strength is the capacity of a material or structure to withstand axially directed pushing forces. When the limit of compressive strength is reached, materials are crushed. Concrete can be made to have high compressive strength, e.g...
. This process was patented in 1824. His cement was an artificial cement similar in properties to the material known as "
Roman cementFor the architectural material actually used by the ancient Romans, see Roman concrete."Roman cement" is a substance developed by James Parker in the 1780s, and finally patented in 1796...
" (patented in 1796 by James Parker) and his process was similar to that patented in 1822 and used since 1811 by
James FrostJames Frost was a British cement manufacturer who invented processes that led to the eventual development of Portland cement.- Biography :...
who called his cement "British Cement". The name "Portland cement" is also recorded in a directory published in 1823 being associated with a William Lockwood, Dave Stewart, and possibly others.
Aspdin's son
WilliamWilliam Aspdin was an English cement manufacturer, and a pioneer of the Portland cement industry.He was born in Leeds, second son of Joseph Aspdin. His father obtained a patent for "Portland cement" in 1824 and William joined his father's cement manufacturing firm in 1829. His father's product...
, in 1843, made an improved version of this cement and he initially called it "Patent Portland cement" although he had no patent. In 1848 William Aspdin further improved his cement and in 1853 he moved to Germany where he was involved in cement making. Many people have claimed to have made the first Portland cement in the modern sense, but it is generally accepted that it was first manufactured by William Aspdin at
NorthfleetNorthfleet is a town in the Borough of Gravesham in Kent, England. Its name is derived from North creek , and the settlement on the shore of the River Thames adjacent to Gravesend was known as Norfluet in the Domesday Book, and Northflet in 1201...
, England in about 1842. The German Government issued a standard on Portland cement in 1878.
Cement grinding
In order to achieve the desired setting qualities in the finished product, a quantity (2-8%, but typically 5%) of calcium sulfate (usually
gypsumGypsum is a very soft sulfate mineral composed of calcium sulfate dihydrate, with the chemical formula CaSO4·2H2O. It is found in alabaster, a decorative stone used in Ancient Egypt. It is the second softest mineral on the Mohs Hardness Scale...
or
anhydriteAnhydrite is a mineral – anhydrous calcium sulfate, CaSO4. It is in the orthorhombic crystal system, with three directions of perfect cleavage parallel to the three planes of symmetry. It is not isomorphous with the orthorhombic barium and strontium sulfates, as might be expected from the...
) is added to the clinker and the mixture is finely ground to form the finished cement powder. This is achieved in a

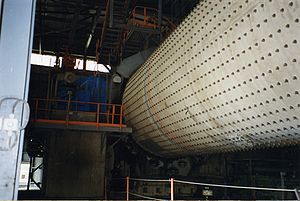

cement millA cement mill is the equipment used to grind the hard, nodular clinker from the cement kiln into the fine grey powder that is cement...
. The grinding process is controlled to obtain a powder with a broad
particle size rangeThe particle-size distribution of a powder, or granular material, or particles dispersed in fluid, is a list of values or a mathematical function that defines the relative amounts of particles present, sorted according to size...
, in which typically 15% by mass consists of particles below 5 μm diameter, and 5% of particles above 45 μm. The measure of fineness usually used is the "
specific surface areaThe air permeability specific surface of a powder material is a single-parameter measurement of the fineness of the powder. The specific surface is derived from the resistance to flow of air through a porous bed of the powder...
", which is the total particle surface area of a unit mass of cement. The rate of initial reaction (up to 24 hours) of the cement on addition of water is directly proportional to the specific surface area. Typical values are 320–380 m
2·kg
−1 for general purpose cements, and 450–650 m
2·kg
−1 for "rapid hardening" cements. The cement is conveyed by belt or powder pump to a silo for storage. Cement plants normally have sufficient silo space for 1–20 weeks production, depending upon local demand cycles. The cement is delivered to end-users either in bags or as bulk powder blown from a pressure vehicle into the customer's silo. In industrial countries, 80% or more of cement is delivered in bulk.
Typical constituents of Portland clinker plus Gypsum
Cement chemists notation under CCN.
Clinker |
CCN |
Mass % |
Tricalcium silicateAlite is a name for tricalcium silicate, Ca3SiO5, sometimes formulated as 3CaO·SiO2 . It is the major, and characteristic, mineral phase in Portland cement. The name was given by Törneborn in 1897 to a crystal identified in microscopic investigation of Portland cement...
(CaO)3 · SiO2 |
C3S |
45-75% |
Dicalcium silicateBelite is an industrial mineral important in Portland cement manufacture, a name for dicalcium silicate, Ca2SiO4, sometimes formulated as 2 CaO · SiO2 ....
(CaO)2 · SiO2 |
C2S |
7-32% |
| Tricalcium aluminate Tricalcium aluminate Ca3Al2O6, often formulated as 3CaO·Al2O3 to highlight the proportions of the oxides from which it is made, is the most basic of the calcium aluminates...
(CaO)3 · Al2O3 |
C3A |
0-13% |
| Tetracalcium aluminoferrite Calcium aluminoferrite is a dark brown crystalline phase commonly found in cements. In the cement industry it is termed ferrite...
(CaO)4 · Al2O3 · Fe2O3 |
C4AF |
0-18% |
GypsumGypsum is a very soft sulfate mineral composed of calcium sulfate dihydrate, with the chemical formula CaSO4·2H2O. It is found in alabaster, a decorative stone used in Ancient Egypt. It is the second softest mineral on the Mohs Hardness Scale...
CaSO4 · 2 H2O |
|
2-10% |
Typical constituents of Portland cement
Cement chemists notation under CCN.
Cement |
CCN |
Mass % |
| Calcium oxide, CaO |
C |
61-67% |
| Silicon oxide, SiO2 |
S |
19-23% |
| Aluminum oxide, Al2O3 |
A |
2.5-6% |
| Ferric oxide, Fe2O3 |
F |
0-6% |
| Sulfate |
 |
1.5-4.5% |
An alternative fabrication technique EMC (Energetically modified cement) uses very finely ground cements that are made from mixtures of cement with sand or with slag or other pozzolan type minerals which are extremely finely ground together. Such cements can have the same physical characteristics as normal cement but with 50% less cement particularly due to their increased surface area for the chemical reaction. Even with intensive grinding they can use up to 50% less energy to fabricate than ordinary Portland cements.
Chemical composition of EMC (50/50 OPC/FA - Fly Ash)
Compound |
OPC % |
FA % |
EMC % |
| CaO |
62.4 |
15.0 |
40.9 |
| SiO2 |
17.8 |
49.4 |
33.2 |
| Al2O3 |
4.0 |
19.6 |
6.3 |
| Fe2O3 |
3.9 |
5.2 |
4.1 |
| SO3 |
3.2 |
0.8 |
1.6 |
| Na2O |
<0.1 |
0.3 |
0.1 |
| K2O |
0.3 |
1.2 |
1.2 |
| Insolubles |
0.5 |
51.3 |
21.6 |
Setting and hardening
Cement sets when mixed with water by way of a complex series of chemical reactions still only partly understood. The different constituents slowly crystallise and the interlocking of their crystals gives cement its strength.
Carbon dioxideCarbon dioxide is a naturally occurring chemical compound composed of two oxygen atoms covalently bonded to a single carbon atom...
is slowly absorbed to convert the
portlanditePortlandite is a rare oxide mineral, the naturally occurring form of calcium hydroxide . It is the calcium analogue of brucite .-Occurrence:...
(Ca(OH)
2) into insoluble
calcium carbonateCalcium carbonate is a chemical compound with the formula CaCO3. It is a common substance found in rocks in all parts of the world, and is the main component of shells of marine organisms, snails, coal balls, pearls, and eggshells. Calcium carbonate is the active ingredient in agricultural lime,...
. After the initial setting, immersion in warm water will speed up setting.
In Portland cement,
gypsumGypsum is a very soft sulfate mineral composed of calcium sulfate dihydrate, with the chemical formula CaSO4·2H2O. It is found in alabaster, a decorative stone used in Ancient Egypt. It is the second softest mineral on the Mohs Hardness Scale...
is added as a compound preventing cement flash setting.
Use
The most common use for Portland cement is in the production of concrete.
ConcreteConcrete is a composite construction material, composed of cement and other cementitious materials such as fly ash and slag cement, aggregate , water and chemical admixtures.The word concrete comes from the Latin word...
is a composite material consisting of
aggregateConstruction aggregate, or simply "aggregate", is a broad category of coarse particulate material used in construction, including sand, gravel, crushed stone, slag, recycled concrete and geosynthetic aggregates. Aggregates are the most mined material in the world...
(
gravelGravel is composed of unconsolidated rock fragments that have a general particle size range and include size classes from granule- to boulder-sized fragments. Gravel can be sub-categorized into granule and cobble...
and
sandSand is a naturally occurring granular material composed of finely divided rock and mineral particles.The composition of sand is highly variable, depending on the local rock sources and conditions, but the most common constituent of sand in inland continental settings and non-tropical coastal...
), cement, and water. As a construction material, concrete can be cast in almost any shape desired, and once hardened, can become a structural (load bearing) element. Users may be involved in the factory production of pre-cast units, such as panels, beams, road furniture, or may make cast-
in-situ concrete such as building superstructures,
roadA road is a thoroughfare, route, or way on land between two places, which typically has been paved or otherwise improved to allow travel by some conveyance, including a horse, cart, or motor vehicle. Roads consist of one, or sometimes two, roadways each with one or more lanes and also any...
s,
damA dam is a barrier that impounds water or underground streams. Dams generally serve the primary purpose of retaining water, while other structures such as floodgates or levees are used to manage or prevent water flow into specific land regions. Hydropower and pumped-storage hydroelectricity are...
s. These may be supplied with concrete mixed on site, or may be provided with "ready-mixed" concrete made at permanent mixing sites. Portland cement is also used in
mortarMortar is a workable paste used to bind construction blocks together and fill the gaps between them. The blocks may be stone, brick, cinder blocks, etc. Mortar becomes hard when it sets, resulting in a rigid aggregate structure. Modern mortars are typically made from a mixture of sand, a binder...
s (with sand and water only) for
plasterPlaster is a building material used for coating walls and ceilings. Plaster starts as a dry powder similar to mortar or cement and like those materials it is mixed with water to form a paste which liberates heat and then hardens. Unlike mortar and cement, plaster remains quite soft after setting,...
s and screeds, and in
groutGrout is a construction material used to embed rebars in masonry walls, connect sections of pre-cast concrete, fill voids, and seal joints . Grout is generally composed of a mixture of water, cement, sand, often color tint, and sometimes fine gravel...
s (cement/water mixes squeezed into gaps to consolidate foundations, road-beds, etc.).
When water is mixed with Portland Cement, the product sets in a few hours and hardens over a period of weeks. These processes can vary widely depending upon the mix used and the conditions of curing of the product, but a typical concrete sets in about 6 hours and develops a
compressive strengthCompressive strength is the capacity of a material or structure to withstand axially directed pushing forces. When the limit of compressive strength is reached, materials are crushed. Concrete can be made to have high compressive strength, e.g...
of 8 MPa in 24 hours. The strength rises to 15 MPa at 3 days, 23 MPa at 1 week, 35 MPa at 4 weeks and 41 MPa at 3 months. In principle, the strength continues to rise slowly as long as water is available for continued hydration, but concrete is usually allowed to dry out after a few weeks and this causes strength growth to stop.
General
There are different standards for classification of Portland cement. The two major standards are the
ASTMASTM International, known until 2001 as the American Society for Testing and Materials , is an international standards organization that develops and publishes voluntary consensus technical standards for a wide range of materials, products, systems, and services...
C150 used primarily in the U.S. and European EN-197. EN 197 cement types CEM I, II, III, IV, and V do not correspond to the similarly named cement types in ASTM C 150.
ASTM C150
There are five types of Portland cements with variations of the first three according to ASTM C150.
Type I Portland cement is known as common or general purpose cement. It is generally assumed unless another type is specified. It is commonly used for general construction especially when making precast and precast-prestressed concrete that is not to be in contact with soils or ground water. The typical compound compositions of this type are:
55% (C
3S), 19% (C
2S), 10% (C
3A), 7% (C
4AF), 2.8% MgO, 2.9% (SO
3), 1.0%
Ignition lossLoss on Ignition is a test used in inorganic analytical chemistry, particularly in the analysis of minerals. It consists of strongly heating a sample of the material at a specified temperature, allowing volatile substances to escape, until its mass ceases to change. This may be done in air, or...
, and 1.0% free CaO.
A limitation on the composition is that the (C
3A) shall not exceed fifteen percent.
Type II is intended to have moderate
sulfateIn inorganic chemistry, a sulfate is a salt of sulfuric acid.-Chemical properties:...
resistance with or without moderate heat of hydration. This type of cement costs about the same as Type I. Its typical compound composition is:
51% (C
3S), 24% (C
2S), 6% (C
3A), 11% (C
4AF), 2.9% MgO, 2.5% (SO
3), 0.8% Ignition loss, and 1.0% free CaO.
A limitation on the composition is that the (C
3A) shall not exceed eight percent which reduces its vulnerability to sulfates. This type is for general construction that is exposed to moderate sulfate attack and is meant for use when concrete is in contact with soils and ground water especially in the western United States due to the high sulfur content of the soil. Because of similar price to that of Type I, Type II is much used as a general purpose cement, and the majority of Portland cement sold in North America meets this specification.
Note: Cement meeting (among others) the specifications for Type I and II has become commonly available on the world market.
Type III is has relatively high early strength. Its typical compound composition is:
57% (C
3S), 19% (C
2S), 10% (C
3A), 7% (C
4AF), 3.0% MgO, 3.1% (SO
3), 0.9% Ignition loss, and 1.3% free CaO.
This cement is similar to Type I, but ground finer. Some manufacturers make a separate clinker with higher C
3S and/or C
3A content, but this is increasingly rare, and the general purpose clinker is usually used, ground to a
specific surfaceSpecific surface area is a material property of solids which measures the total surface area per unit of mass, solid or bulk volume, or cross-sectional area...
typically 50-80% higher. The gypsum level may also be increased a small amount. This gives the concrete using this type of cement a three day compressive strength equal to the seven day compressive strength of types I and II. Its seven day compressive strength is almost equal to types I and II 28 day compressive strengths. The only downside is that the six month strength of type III is the same or slightly less than that of types I and II. Therefore the long-term strength is sacrificed a little. It is usually used for precast concrete manufacture, where high 1-day strength allows fast turnover of molds. It may also be used in emergency construction and repairs and construction of machine bases and gate installations.
Type IV Portland cement is generally known for its low heat of hydration. Its typical compound composition is:
28% (C
3S), 49% (C
2S), 4% (C
3A), 12% (C
4AF), 1.8% MgO, 1.9% (SO
3), 0.9% Ignition loss, and 0.8% free CaO.
The percentages of (C
2S) and (C
4AF) are relatively high and (C
3S) and (C
3A) are relatively low. A limitation on this type is that the maximum percentage of (C
3A) is seven, and the maximum percentage of (C
3S) is thirty-five. This causes the heat given off by the
hydration reactionIn organic chemistry, a hydration reaction is a chemical reaction in which a hydroxyl group and a hydrogen cation are added to the two carbon atoms bonded together in the carbon-carbon double bond which makes up an alkene functional group. The reaction usually runs in a strong acidic, aqueous...
to develop at a slower rate. However, as a consequence the strength of the
concreteConcrete is a composite construction material, composed of cement and other cementitious materials such as fly ash and slag cement, aggregate , water and chemical admixtures.The word concrete comes from the Latin word...
develops slowly. After one or two years the strength is higher than the other types after full curing. This cement is used for very large concrete structures, such as dams, which have a low surface to volume ratio. This type of cement is generally not stocked by manufacturers but some might consider a large special order. This type of cement has not been made for many years, because Portland-pozzolan cements and
ground granulated blast furnace slagGround-granulated blast-furnace slag is obtained by quenching molten iron slag from a blast furnace in water or steam, to produce a glassy, granular product that is then dried and ground into a fine powder.-Applications:GGBS is used to make durable concrete structures in combination with ordinary...
addition offer a cheaper and more reliable alternative.
Type V is used where sulfate resistance is important. Its typical compound composition is:
38% (C
3S), 43% (C
2S), 4% (C
3A), 9% (C
4AF), 1.9% MgO, 1.8% (SO
3), 0.9% Ignition loss, and 0.8% free CaO.
This cement has a very low (C
3A) composition which accounts for its high sulfate resistance. The maximum content of (C
3A) allowed is five percent for Type V Portland cement. Another limitation is that the (C
4AF) + 2(C
3A) composition cannot exceed twenty percent. This type is used in concrete that is to be exposed to
alkaliIn chemistry, an alkali is a basic, ionic salt of an alkali metal or alkaline earth metal element. Some authors also define an alkali as a base that dissolves in water. A solution of a soluble base has a pH greater than 7. The adjective alkaline is commonly used in English as a synonym for base,...
soil and ground water sulfates which react with (C
3A) causing disruptive expansion. It is unavailable in many places although its use is common in the western United States and Canada. As with Type IV, Type V Portland cement has mainly been supplanted by the use of ordinary cement with added ground granulated blast furnace slag or tertiary blended cements containing slag and fly ash.
Types Ia, IIa, and IIIa have the same composition as types I, II, and III. The only difference is that in Ia, IIa, and IIIa an air-entraining agent is ground into the mix. The air-entrainment must meet the minimum and maximum optional specification found in the ASTM manual. These types are only available in the eastern United States and Canada but can only be found on a limited basis. They are a poor approach to air-entrainment which improves resistance to freezing under low temperatures.
Types II(MH) and II(MH)a have recently been added with a similar composition as types II and IIa but with a mild heat. The cements were added to ASTM C-150 in 2009 and will be in publication in 2010.
EN 197
ENThe European Committee for Standardization or Comité Européen de Normalisation , is a non-profit organisation whose mission is to foster the European economy in global trading, the welfare of European citizens and the environment by providing an efficient infrastructure to interested parties for...
197-1 defines 5 classes of common cement that comprise Portland cement as a main constituent. These classes differ from the ASTM classes.
| I |
Portland cement |
Comprising Portland cement and up to 5% of minor additional constituents |
| II |
Portland-composite cement |
Portland cement and up to 35% of other single constituents |
| III |
Blastfurnace cement |
Portland cement and higher percentages of blastfurnace slag |
| IV |
Pozzolanic cement |
Portland cement and up to 55% of pozzolanic constituents(volcaince ashs) |
| V |
Composite cement |
Portland cement, blastfurnace slag or fly ash and pozzolana |
Constituents that are permitted in Portland-composite cements are artificial pozzolans (blastfurnace slag, silica fume, and fly ashes) or natural pozzolans (siliceous or siliceous aluminous materials such as volcanic ash glasses, calcined clays and shale).
White Portland cement
White Portland cement or white ordinary Portland cement (WOPC) is similar to ordinary, gray Portland cement in all respects except for its high degree of whiteness. Obtaining this color requires substantial modification to the method of manufacture and, because of this, it is somewhat more expensive than the gray product.
Safety issues
Bags of cement routinely have health and safety warnings printed on them because not only is cement highly
alkaliIn chemistry, an alkali is a basic, ionic salt of an alkali metal or alkaline earth metal element. Some authors also define an alkali as a base that dissolves in water. A solution of a soluble base has a pH greater than 7. The adjective alkaline is commonly used in English as a synonym for base,...
ne, but the setting process is
exothermicIn thermodynamics, the term exothermic describes a process or reaction that releases energy from the system, usually in the form of heat, but also in the form of light , electricity , or sound...
. As a result, wet cement is strongly caustic and can easily cause severe skin burns if not promptly washed off with water. Similarly, dry cement powder in contact with
mucous membraneThe mucous membranes are linings of mostly endodermal origin, covered in epithelium, which are involved in absorption and secretion. They line cavities that are exposed to the external environment and internal organs...
s can cause severe eye or respiratory irritation. Cement users should wear protective clothing.
When traditional Portland cement is mixed with water the dissolution of
calciumCalcium is the chemical element with the symbol Ca and atomic number 20. It has an atomic mass of 40.078 amu. Calcium is a soft gray alkaline earth metal, and is the fifth-most-abundant element by mass in the Earth's crust...
,
sodiumSodium is a chemical element with the symbol Na and atomic number 11. It is a soft, silvery-white, highly reactive metal and is a member of the alkali metals; its only stable isotope is 23Na. It is an abundant element that exists in numerous minerals, most commonly as sodium chloride...
and
potassiumPotassium is the chemical element with the symbol K and atomic number 19. Elemental potassium is a soft silvery-white alkali metal that oxidizes rapidly in air and is very reactive with water, generating sufficient heat to ignite the hydrogen emitted in the reaction.Potassium and sodium are...
hydroxideHydroxide is a diatomic anion with chemical formula OH−. It consists of an oxygen and a hydrogen atom held together by a covalent bond, and carrying a negative electric charge. It is an important but usually minor constituent of water. It functions as a base, as a ligand, a nucleophile, and a...
s produces a highly alkaline solution (
pHIn chemistry, pH is a measure of the acidity or basicity of an aqueous solution. Pure water is said to be neutral, with a pH close to 7.0 at . Solutions with a pH less than 7 are said to be acidic and solutions with a pH greater than 7 are basic or alkaline...
~13):
gloveA glove is a garment covering the hand. Gloves have separate sheaths or openings for each finger and the thumb; if there is an opening but no covering sheath for each finger they are called "fingerless gloves". Fingerless gloves with one large opening rather than individual openings for each...
s, goggles and a filter mask should be used for protection, and hands should be washed after contact as most cement can cause acute ulcerative damage 8–12 hours after contact if skin is not washed promptly. The reaction of cement dust with moisture in the sinuses and lungs can also cause a chemical burn as well as headaches, fatigue, and lung cancer. The development of formulations of cement that include fast-reacting
pozzolanA pozzolan is a material which, when combined with calcium hydroxide, exhibits cementitious properties. Pozzolans are commonly used as an addition to Portland cement concrete mixtures to increase the long-term strength and other material properties of Portland cement concrete, and in some cases...
s such as
silica fumeSilica fume, also known as microsilica, is a fine-grain, thin, and very high surface area silica.It is sometimes confused with fumed silica and colloidal silica...
as well as some slow-reacting products such as
fly ashFly ash is one of the residues generated in combustion, and comprises the fine particles that rise with the flue gases. Ash which does not rise is termed bottom ash. In an industrial context, fly ash usually refers to ash produced during combustion of coal...
have allowed for the production of comparatively low-alkalinity cements (pH<11)
that are much less toxic and which have become widely commercially available, largely replacing high-pH formulations in much of the United States. Once any cement sets, the hardened mass loses chemical reactivity and can be safely touched without gloves.
In
ScandinaviaScandinavia is a cultural, historical and ethno-linguistic region in northern Europe that includes the three kingdoms of Denmark, Norway and Sweden, characterized by their common ethno-cultural heritage and language. Modern Norway and Sweden proper are situated on the Scandinavian Peninsula,...
, France and the UK, the level of chromium(VI), which is considered to be toxic and a major skin irritant, may not exceed 2 ppm (parts per million).
Environmental effects
Portland cement manufacture can cause environmental impacts at all stages of the process. These include emissions of airborne pollution in the form of dust, gases, noise and vibration when operating machinery and during blasting in quarries, consumption of large quantities of fuel during manufacture, release of CO
2 from the raw materials during manufacture, and damage to countryside from quarrying. Equipment to reduce dust emissions during quarrying and manufacture of cement is widely used, and equipment to trap and separate exhaust gases are coming into increased use. Environmental protection also includes the re-integration of quarries into the countryside after they have been closed down by returning them to nature or re-cultivating them.
"The Arizona Department of Environmental Quality was informed this week that the Arizona Portland Cement Co. failed a second round of testing for emissions of hazardous air pollutants at the company's Rillito plant near Tucson. The latest round of testing, performed in January 2003 by the company, is designed to ensure that the facility complies with federal standards governing the emissions of dioxins and furans, which are byproducts of the manufacturing process." Cement Reviews' "Environmental News" web page details case after case of environmental problems with cement manufacturing.
An independent research effort of
AEA TechnologyAEA Technology plc was formed in 1996 as the privatised offshoot of the United Kingdom Atomic Energy Authority. It is a constituent of the FTSE Fledgling Index. Originally it consisted of divisions with expertise in a wide variety of areas, mostly the products of nuclear-related research...
to identify critical issues for the cement industry today concluded the most important environment, health and safety performance issues facing the cement industry are atmospheric releases (including greenhouse gas emissions, dioxin, NO
x, SO
2, and particulates), accidents and worker exposure to dust.
The CO
2 associated with Portland cement manufacture falls into 3 categories:
Source 1. CO
2 derived from decarbonation of
limestoneLimestone is a sedimentary rock composed largely of the minerals calcite and aragonite, which are different crystal forms of calcium carbonate . Many limestones are composed from skeletal fragments of marine organisms such as coral or foraminifera....
,
Source 2. CO
2 from kiln fuel combustion,
Source 3. CO
2 produced by vehicles in cement plants and distribution.
Source 1 is fairly constant: minimum around 0.47 kg CO
2 per kg of cement, maximum 0.54, typical value around 0.50 worldwide. Source 2 varies with plant efficiency: efficient precalciner plant 0.24 kg CO
2 per kg cement, low-efficiency wet process as high as 0.65, typical modern practices (e.g. UK) averaging around 0.30. Source 3 is almost insignificant at 0.002-0.005. So typical total CO
2 is around 0.80 kg CO
2 per kg finished cement. This leaves aside the CO
2 associated with electric power consumption, since this varies according to the local generation type and efficiency. Typical electrical energy consumption is of the order of 90-150 kWh per tonne cement, equivalent to 0.09-0.15 kg CO
2 per kg finished cement if the electricity is coal-generated.
Overall, with nuclear- or hydroelectric power and efficient manufacturing, CO
2 generation can be as little as 0.7 kg per kg cement, but can be as high as twice this amount. The thrust of innovation for the future is to reduce sources 1 and 2 by modification of the chemistry of cement, by the use of wastes, and by adopting more efficient processes. Although cement manufacturing is clearly a very large CO
2 emitter,
concreteConcrete is a composite construction material, composed of cement and other cementitious materials such as fly ash and slag cement, aggregate , water and chemical admixtures.The word concrete comes from the Latin word...
(of which cement makes up about 15%) compares quite favorably with other building systems in this regard.
Cement plants used for waste disposal or processing
Due to the high temperatures inside
cement kilnCement kilns are used for the pyroprocessing stage of manufacture of Portland and other types of hydraulic cement, in which calcium carbonate reacts with silica-bearing minerals to form a mixture of calcium silicates...
s, combined with the oxidizing (oxygen-rich) atmosphere and long residence times, cement kilns are used as a processing option for various types of waste streams: indeed, they efficiently destroy many hazardous organic compounds. The waste streams also often contain combustible materials which allow the substitution of part of the fossil fuel normally used in the process.
Waste materials used in cement kilns as a fuel supplement:
- Car and truck tire
A tire or tyre is a ring-shaped covering that fits around a wheel rim to protect it and enable better vehicle performance by providing a flexible cushion that absorbs shock while keeping the wheel in close contact with the ground...
s – steel belts are easily tolerated in the kilns
- Paint sludge from automobile industries
- Waste solvents and lubricants
- Meat and bone meal
Meat and bone meal is a product of the rendering industry. It is typically about 48 - 52% protein, 33-...
- slaughterhouseA slaughterhouse or abattoir is a facility where animals are killed for consumption as food products.Approximately 45-50% of the animal can be turned into edible products...
waste due to bovine spongiform encephalopathyBovine spongiform encephalopathy , commonly known as mad-cow disease, is a fatal neurodegenerative disease in cattle that causes a spongy degeneration in the brain and spinal cord. BSE has a long incubation period, about 30 months to 8 years, usually affecting adult cattle at a peak age onset of...
contamination concerns
- Waste plastics
- Sewage sludge
Sludge refers to the residual, semi-solid material left from industrial wastewater, or sewage treatment processes. It can also refer to the settled suspension obtained from conventional drinking water treatment, and numerous other industrial processes...
- Rice hulls
Rice hulls are the hard protecting coverings of grains of rice. In addition to protecting rice during the growing season, rice hulls can be put to use as building material, fertilizer, insulation material, or fuel.-Production:...
- Sugarcane
Sugarcane refers to any of six to 37 species of tall perennial grasses of the genus Saccharum . Native to the warm temperate to tropical regions of South Asia, they have stout, jointed, fibrous stalks that are rich in sugar, and measure two to six metres tall...
waste
- Used wooden railroad tie
A railroad tie/railway tie , or railway sleeper is a rectangular item used to support the rails in railroad tracks...
s (railway sleepers)
- Spent Cell Liner (SCL) from the aluminium smelting industry (also called Spent Pot Liner or SPL)
Portland cement manufacture also has the potential to benefit from using industrial by-products from the waste-stream. These include in particular:
- Slag
Slag is a partially vitreous by-product of smelting ore to separate the metal fraction from the unwanted fraction. It can usually be considered to be a mixture of metal oxides and silicon dioxide. However, slags can contain metal sulfides and metal atoms in the elemental form...
- Fly ash
Fly ash is one of the residues generated in combustion, and comprises the fine particles that rise with the flue gases. Ash which does not rise is termed bottom ash. In an industrial context, fly ash usually refers to ash produced during combustion of coal...
(from power plants)
- Silica fume
Silica fume, also known as microsilica, is a fine-grain, thin, and very high surface area silica.It is sometimes confused with fumed silica and colloidal silica...
(from steel mills)
- Synthetic gypsum
Gypsum is a very soft sulfate mineral composed of calcium sulfate dihydrate, with the chemical formula CaSO4·2H2O. It is found in alabaster, a decorative stone used in Ancient Egypt. It is the second softest mineral on the Mohs Hardness Scale...
(from desulfurisation)
See also
- Cement
In the most general sense of the word, a cement is a binder, a substance that sets and hardens independently, and can bind other materials together. The word "cement" traces to the Romans, who used the term opus caementicium to describe masonry resembling modern concrete that was made from crushed...
- Lime mortar
Lime mortar is a type of mortar composed of lime and an aggregate such as sand, mixed with water. It is one of the oldest known types of mortar, dating back to the 4th century BC and widely used in Ancient Rome and Greece, when it largely replaced the clay and gypsum mortars common to Ancient...
- Mortar (masonry)
Mortar is a workable paste used to bind construction blocks together and fill the gaps between them. The blocks may be stone, brick, cinder blocks, etc. Mortar becomes hard when it sets, resulting in a rigid aggregate structure. Modern mortars are typically made from a mixture of sand, a binder...
- Rosendale cement
Rosendale cement refers to a type of natural cement produced in and around Rosendale, New York from argilaceous limestone. The fast-setting Rosendale natural cement mortars proved to be more efficient than the traditional mortars based on lime and sand...
- White Portland cement
White Portland cement or white ordinary Portland cement is similar to ordinary, gray Portland cement in all respects except for its high degree of whiteness...
- Calcium Silicate Hydrate
Calcium Silicate Hydrate is the main product of the hydration of Portland cement and is primarily responsible for the strength in cement based materials.-Preparation:...
External links
- World Production of Hydraulic Cement, by Country
- PCA - The Portland Cement Association
- Alpha The Guaranteed Portland Cement Company: 1917 Trade Literature from Smithsonian Institution Libraries
- Cement Sustainability Initiative
- A cracking alternative to cement
- What is the Difference Between Cement, Portland Cement & Concrete?
- Aerial views of the world's largest concentration of cement manufacturing capacity, Saraburi Province
Saraburi is one of the central provinces of Thailand. Neighboring provinces are Lopburi, Nakhon Ratchasima, Nakhon Nayok, Pathum Thani and Ayutthaya. Saraburi has been an important town since ancient times...
, ThailandThailand , officially the Kingdom of Thailand , formerly known as Siam , is a country located at the centre of the Indochina peninsula and Southeast Asia. It is bordered to the north by Burma and Laos, to the east by Laos and Cambodia, to the south by the Gulf of Thailand and Malaysia, and to the...
, at 14.6325°N 101.0771°E
