The
RQ-2 Pioneer is an
unmanned aerial vehicleAn unmanned aerial vehicle is an aircraft that flies without a human crew. Their largest uses are in military applications. To distinguish UAVs from missiles, a UAV is defined as a reusable, uncrewed vehicle capable of controlled, sustained, level flight and powered by a jet or reciprocating...
(UAV) that has been utilized by the
United StatesThe United States of America is a federal constitutional republic comprising fifty states and a federal district...
NavyThe United States Navy is the sea branch of the U.S. Armed Forces. It is one of the seven uniformed services of the United States. As of 31 December 2008, the U.S. Navy had about 331,682 personnel on active duty and 124,000 in the Navy Reserve. It operates 283 ships in active service and more than...
,
Marine CorpsThe United States Marine Corps is a branch of the United States armed forces responsible for providing force projection from the sea, using the mobility of the United States Navy to rapidly deliver combined-arms task forces. It is one of seven uniformed services of the United States...
, and
ArmyThe United States Army is the branch of the United States Military responsible for land-based military operations. It is the largest and oldest established branch of the U.S. military and is one of seven uniformed services...
, deploying aboard ship and ashore since 1986. Initially deployed aboard
battleshipsThe Iowa class battleships were a class of six fast battleships ordered by the United States Navy in 1939 and 1940 to escort the Fast Carrier Task Forces that would operate in the Pacific Theater of World War II. Four were completed in the early to mid-1940s; two more were laid down, but they...
to provide gunnery spotting, its mission evolved into
reconnaissanceReconnaissance is a military and medical term denoting exploration conducted to gain information. Militarily, its shorthand Canadian and British form is recce , its American usage form is recon...
and surveillance, primarily for
amphibious forcesAmphibious warfare is the use of naval firepower, logistics and strategy to project military power ashore. In previous eras it stood as the primary method of delivering troops to non-contiguous enemy-held terrain...
. It is now deployed aboard the
Austin class amphibious transport dockThe Austin class of amphibious transport dock followed theRaleigh class and was followed by the San Antonio classes. Note that some sources consider Cleveland and Trenton ships to be a part of the Austin class, but the Naval Vessel Registry lists them as a separate class.- Ships :-Cleveland...
.
It was developed jointly by
AAI CorporationAAI Corporation is an aerospace and defense development and manufacturing firm in Hunt Valley, Maryland. It is wholly owned subsidiary of United Industrial Corporation, which was acquired by Textron in 2007...
and
Israel Aircraft IndustriesIsrael Aerospace Industries or IAI is Israel's prime aerospace and aviation manufacturer, producing aerial systems for both military and civilian usage...
. The program grew out of successful testing and field operation of the Tadiran Mastiff UAV by the
AmericanThe United States armed forces are the overall unified military forces of the United States.The history of the United States armed forces dates to 1775, even before the Declaration of Independence marked the establishment of the United States...
and
IsraeliThe Israel Defense Forces , commonly known in Israel by the Hebrew acronym Tzahal , are Israel's military forces, comprising the ground forces, air force and navy. It is the sole military wing of the Israeli security forces, and has no civilian jurisdiction within Israel...
militaries.
Launched by rocket assist (shipboard), by
catapultAn aircraft catapult is a device used to launch aircraft from ships—in particular aircraft carriers—as a form of assisted take off. It consists of a track built into the flight deck, below which is a large piston or shuttle that is attached through the track to the nose gear of the aircraft.Older...
, or from a
runwayA runway is a strip of land at an airport on which aircraft can take off and land and forms part of the maneuvering area. Runways may be a man-made surface or a natural surface .By extension, the term has come to mean, in addition, any long, flat, straight area, such as that used in fashion...
, the Pioneer recovers into a net (shipboard) or with
arresting gearArresting gear is the term used for mechanical systems designed to rapidly decelerate an aircraft as it lands. Arresting gear on aircraft carriers is an essential component of naval aviation, and it is most commonly used on CATOBAR and STOBAR aircraft carriers. Similar systems are also found at...
after flying up to 5 hours with a payload.
The
RQ-2 Pioneer is an
unmanned aerial vehicleAn unmanned aerial vehicle is an aircraft that flies without a human crew. Their largest uses are in military applications. To distinguish UAVs from missiles, a UAV is defined as a reusable, uncrewed vehicle capable of controlled, sustained, level flight and powered by a jet or reciprocating...
(UAV) that has been utilized by the
United StatesThe United States of America is a federal constitutional republic comprising fifty states and a federal district...
NavyThe United States Navy is the sea branch of the U.S. Armed Forces. It is one of the seven uniformed services of the United States. As of 31 December 2008, the U.S. Navy had about 331,682 personnel on active duty and 124,000 in the Navy Reserve. It operates 283 ships in active service and more than...
,
Marine CorpsThe United States Marine Corps is a branch of the United States armed forces responsible for providing force projection from the sea, using the mobility of the United States Navy to rapidly deliver combined-arms task forces. It is one of seven uniformed services of the United States...
, and
ArmyThe United States Army is the branch of the United States Military responsible for land-based military operations. It is the largest and oldest established branch of the U.S. military and is one of seven uniformed services...
, deploying aboard ship and ashore since 1986. Initially deployed aboard
battleshipsThe Iowa class battleships were a class of six fast battleships ordered by the United States Navy in 1939 and 1940 to escort the Fast Carrier Task Forces that would operate in the Pacific Theater of World War II. Four were completed in the early to mid-1940s; two more were laid down, but they...
to provide gunnery spotting, its mission evolved into
reconnaissanceReconnaissance is a military and medical term denoting exploration conducted to gain information. Militarily, its shorthand Canadian and British form is recce , its American usage form is recon...
and surveillance, primarily for
amphibious forcesAmphibious warfare is the use of naval firepower, logistics and strategy to project military power ashore. In previous eras it stood as the primary method of delivering troops to non-contiguous enemy-held terrain...
. It is now deployed aboard the
Austin class amphibious transport dockThe Austin class of amphibious transport dock followed theRaleigh class and was followed by the San Antonio classes. Note that some sources consider Cleveland and Trenton ships to be a part of the Austin class, but the Naval Vessel Registry lists them as a separate class.- Ships :-Cleveland...
.
It was developed jointly by
AAI CorporationAAI Corporation is an aerospace and defense development and manufacturing firm in Hunt Valley, Maryland. It is wholly owned subsidiary of United Industrial Corporation, which was acquired by Textron in 2007...
and
Israel Aircraft IndustriesIsrael Aerospace Industries or IAI is Israel's prime aerospace and aviation manufacturer, producing aerial systems for both military and civilian usage...
. The program grew out of successful testing and field operation of the Tadiran Mastiff UAV by the
AmericanThe United States armed forces are the overall unified military forces of the United States.The history of the United States armed forces dates to 1775, even before the Declaration of Independence marked the establishment of the United States...
and
IsraeliThe Israel Defense Forces , commonly known in Israel by the Hebrew acronym Tzahal , are Israel's military forces, comprising the ground forces, air force and navy. It is the sole military wing of the Israeli security forces, and has no civilian jurisdiction within Israel...
militaries.
Operation
Launched by rocket assist (shipboard), by
catapultAn aircraft catapult is a device used to launch aircraft from ships—in particular aircraft carriers—as a form of assisted take off. It consists of a track built into the flight deck, below which is a large piston or shuttle that is attached through the track to the nose gear of the aircraft.Older...
, or from a
runwayA runway is a strip of land at an airport on which aircraft can take off and land and forms part of the maneuvering area. Runways may be a man-made surface or a natural surface .By extension, the term has come to mean, in addition, any long, flat, straight area, such as that used in fashion...
, the Pioneer recovers into a net (shipboard) or with
arresting gearArresting gear is the term used for mechanical systems designed to rapidly decelerate an aircraft as it lands. Arresting gear on aircraft carriers is an essential component of naval aviation, and it is most commonly used on CATOBAR and STOBAR aircraft carriers. Similar systems are also found at...
after flying up to 5 hours with a payload. It flies with a
gimbal250px|thumb|right|Illustration of a simple two-axis gimbal set.A gimbal is a pivoted support that allows the rotation of an object about a single axis. A set of two gimbals, one mounted on the other with pivot axes orthogonal, may be used to allow an object mounted on the innermost gimbal to...
ed EO/IR sensor, relaying analog video in real time via a
C-bandC band is a name given to certain portions of the electromagnetic spectrum, as well as a range of wavelengths of light, used for communications. The IEEE C band and its variations, in particular, are microwave ranges used for certain satellite television broadcasts, and by some Wi-Fi devices,...
line-of-sight (LOS) data link. Since 1991, Pioneer has flown reconnaissance missions during the
Persian GulfThe Persian Gulf War , known also as the Gulf War, the First Gulf War,or often as the Second Gulf War and by Iraqi leader Saddam Hussein as The Mother of all Battles, or commonly as Desert Storm, for the military response...
,
SomaliaSomalia , officially the Republic of Somalia and formerly known as the Somali Democratic Republic, is a country located in the Horn of Africa...
(UNOSOM II),
BosniaThe NATO intervention in Bosnia consisted of a series of actions undertaken by NATO to establish and then preserve peace during and after the Bosnian War...
,
KosovoThe NATO Bombing of Yugoslavia was NATO's military operation against the Federal Republic of Yugoslavia during the Kosovo War. The strikes lasted from March 24, 1999 to June 11, 1999...
and
IraqThe Iraq War, also known as the Occupation of Iraq or Operation Iraqi Freedom, is an ongoing military campaign which began on March 20, 2003 with the invasion of Iraq by a multinational force led by troops from the United States and the United Kingdom.Prior to the war, the governments of the United...
conflicts. In 2005, the
NavyThe United States Navy is the sea branch of the U.S. Armed Forces. It is one of the seven uniformed services of the United States. As of 31 December 2008, the U.S. Navy had about 331,682 personnel on active duty and 124,000 in the Navy Reserve. It operates 283 ships in active service and more than...
operated two Pioneer systems (one for training) and the
MarinesThe United States Marine Corps is a branch of the United States armed forces responsible for providing force projection from the sea, using the mobility of the United States Navy to rapidly deliver combined-arms task forces. It is one of seven uniformed services of the United States...
operated two, each with five or more aircraft. It is also operated by
IsraelIsrael officially the State of Israel , is a developed state in Western Asia located on the eastern shore of the Mediterranean Sea. It borders Lebanon in the north, Syria in the northeast, Jordan in the east, and Egypt on the southwest, and contains geographically diverse features within its...
and the
Republic of Singapore Air ForceThe Republic of Singapore Air Force is the air arm of the Singapore Armed Forces. It was first established in 1968 as the Singapore Air Defence Command .-Mission Statement:The following excerpts was taken from the : --History:...
. In 2007 Pioneer was retired by the U.S. Navy and was replaced by the Shadow UAV.
Internationally, Pioneer drones are perhaps most remembered for their role in the 1991
Gulf WarThe Persian Gulf War , known also as the Gulf War, the First Gulf War,or often as the Second Gulf War and by Iraqi leader Saddam Hussein as The Mother of all Battles, or commonly as Desert Storm, for the military response...
, when a Pioneer launched by the
battleshipThe Iowa class battleships were a class of six fast battleships ordered by the United States Navy in 1939 and 1940 to escort the Fast Carrier Task Forces that would operate in the Pacific Theater of World War II. Four were completed in the early to mid-1940s; two more were laid down, but they...
observed Iraqi troops on
Failaka IslandFailaka Island is an island that belongs to Kuwait in the Persian Gulf. The island is 20 km off the coast of Kuwait City in the Persian Gulf. It is thought the name "Failaka" is derived from the ancient Greek for outpost, "fylakio".-History:...
surrendering shortly after
Missouri’sUSS Missouri is a United States Navy Iowa-class battleship, and was the fourth ship of the U.S. Navy to be named in honor of the U.S. state of Missouri...
attack on their trenchlines. When Navy officials offered to transfer a Pioneer to the
Smithsonian InstitutionThe Smithsonian Institution is an educational and research institute and associated museum complex, administered and funded by the government of the United States and by funds from its endowment, contributions, and profits from its shops and its magazines...
, curators at the
National Air and Space MuseumThe National Air and Space Museum of the Smithsonian Institution is a museum in Washington, D.C., United States, and is the most popular of the Smithsonian museums. It maintains the largest collection of aircraft and spacecraft in the world...
specifically asked for the UAV that Iraqi troops surrendered to during the Gulf War.
The "R" is the Department of Defense designation for reconnaissance; "Q" means unmanned aircraft system. The "2" refers to its being the second of a series of purpose-built unmanned reconnaissance aircraft systems.
General characteristics
- Primary Function: Artillery Targeting and Acquisition
An artillery observer is a soldier responsible for directing artillery fire and close air support onto enemy positions. Because artillery is an indirect-fire weapon system, the guns are rarely in line-of-sight of their target, often located tens of miles away...
, ControlForward air control is the provision of guidance to Close Air Support aircraft intended to ensure that their attack hits the intended target and does not injure friendly troops. This task is carried out by a forward air controller , for NATO forces the qualifications and experience required to be...
of Close Air SupportIn military tactics, close air support is air action against hostile targets that requires detailed coordination and integration with ground forces. It is typically used to support ground troops, providing firepower at critical points....
, ReconnaissanceReconnaissance is a military and medical term denoting exploration conducted to gain information. Militarily, its shorthand Canadian and British form is recce , its American usage form is recon...
and SurveillanceSurveillance is the monitoring of the behavior, activities, or other changing information, usually of people and often in a surreptitious manner...
, Battle Damage AssessmentBomb, or battle damage assessment, often referred to as BDA, is the practice of assessing damage inflicted on a target by an air campaign. It is part of the larger discipline of combat assessment...
, Search and RescueSearch and rescue is the search for and provision of aid to people who are in distress or imminent danger.-Definitions of Search and Rescue:There are many different definitions of search and rescue, depending on the agency involved....
, Psychological OperationsPsychological Operations are techniques used by any set of groups to influence a target audience's value systems, belief systems, emotions, motives, reasoning, or behavior...
- Contractor: Pioneer UAVs, Incorporated; Israel Aircraft Industries
Israel Aerospace Industries or IAI is Israel's prime aerospace and aviation manufacturer, producing aerial systems for both military and civilian usage...
- Power Plant: Sachs
ZF Sachs GmbH is a German manufacturer of motorcycles, mopeds, motorised bicycles and ATVs.On 1 August 1895, the Schweinfurter Präzisions-Kugellagerwerke Fichtel & Sachs oHG was founded in Schweinfurt by inventors Ernst Sachs and Karl Fichtel, to produce ball bearings and bicycle hubs...
2-stroke crankcase-scavenged 2-cylinder horizontally-opposed piston engine, simultaneously firing or alternative RQ-2C: UEL AR-741 rotary engine; 28.3 kW (38 hp)

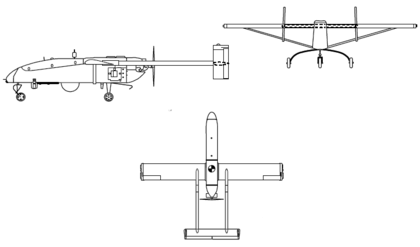

.png)
- Length:
- Height:
- Weight: 205 kilograms (452 pounds)
- Wingspan:
- Speed:
- Range: five hours at 185 kilometers (100 nautical miles)
- Ceiling: 4600 meters (15,000 ft)
- Fuel Capacity: 44-47 liters
- Payload: Dual Sensor (12DS/POP-200/POP-300)
- System Cost:
- Inventory: 175 Delivered/35 In-Service
Operators
- United States Navy
The United States Navy is the sea branch of the U.S. Armed Forces. It is one of the seven uniformed services of the United States. As of 31 December 2008, the U.S. Navy had about 331,682 personnel on active duty and 124,000 in the Navy Reserve. It operates 283 ships in active service and more than...
- VC-6 'Firebees' - Naval Station Norfolk
Naval Station Norfolk, in Norfolk, Virginia, is a base of the United States Navy, supporting naval forces in the United States Fleet Forces Command, those operating in the Atlantic Ocean, Mediterranean Sea, and Indian Ocean...
(Defunct)
- Training Air Wing 6 UAV Detachment - Naval Air Station Whiting Field
Naval Air Station Whiting Field is a United States Navy base located in Milton, Florida, in central Santa Rosa County, and is one of the Navy's two primary pilot training bases . NAS Whiting Field also provides training for U.S. Marine Corps, Coast Guard, and Air Force student pilots, as well as...
(Defunct)
- United States Marine Corps
The United States Marine Corps is a branch of the United States armed forces responsible for providing force projection from the sea, using the mobility of the United States Navy to rapidly deliver combined-arms task forces. It is one of seven uniformed services of the United States...
- VMU-1 'Watchdogs' - Marine Corps Air Ground Combat Center Twentynine Palms
The Marine Corps Air Ground Combat Center , also known as 29 Palms, Twentynine Stumps, or simply the Stumps, is the United States Marine Corps' largest base. It is a census-designated place officially known as Twentynine Palms Base, California located adjacent to the city of Twentynine Palms in...
, CaliforniaCalifornia is the most populous state in the United States, and the third largest by area. California is the second most populous sub-national entity in the Americas, behind only São Paulo, Brazil...
- VMU-2 'Night Owls'
Marine Unmanned Aerial Vehicle Squadron 2 is an unmanned aerial vehicle squadron in the United States Marine Corps that operates the RQ-7 Shadow. They are based at Marine Corps Air Station Cherry Point, North Carolina and provide aerial surveillance for the II Marine Expeditionary Force...
- MCAS Cherry PointMarine Corps Air Station Cherry Point or MCAS Cherry Point is a United States Marine Corps airfield located in Havelock, North Carolina, USA, in the eastern part of the state...
, North CarolinaNorth Carolina is a state located on the Atlantic Seaboard in the southeastern United States. The state borders South Carolina and Georgia to the south, Tennessee to the west and Virginia to the north. North Carolina contains 100 counties...
