Petriscript

PetriScript is a modelling language for Petri net

Petri net

A Petri net is one of several mathematical modeling languages for the description of distributed systems. A Petri net is a directed bipartite graph, in which the nodes represent transitions and places...

s, designed by Alexandre Hamez and Xavier Renault.

The CPN-AMI

CPN-AMI

CPN-AMI is a computer-aided software engineering environment based on Petri Net specifications. It allows to specify the behavior of a distributed system and the to evaluate properties on it such as invariants , absence of deadlocks, liveness or temporal logic properties .CPN-AMI relies on...

platform provides many tools to work on Petri nets, such as verifying or model-checking tools. It was easily possible to graphically design simple Petri nets with Macao, but various works made internally at LIP6 reveal that it was needed to automate such task.

Therefore PetriScript has been designed to provide some facilities in modelling places-transition and coloured Petri nets within the CPN-AMI platform.

Its main purpose is to automate modelling operations on Petri nets such as merging, creating, and connecting nodes. Thus, it supports almost everything needed like macros, loops control, lists, string and arithmetic expressions, and avoids to the maximum the intervention of the user. Its syntax is more or less Ada-like.

For example, the following script produces a FIFO with three sections:

define(FIFO_SIZE,3)
define(FIFO_BASE_X,100)
define(FIFO_BASE_Y,100)
define(FIFO_STEP,120)
int $wave := 0;
for $wave in 1..FIFO_SIZE loop
create place "Slot_" & '$wave' (x FIFO_BASE_X + FIFO_STEP * $wave,
y FIFO_BASE_Y);
create place "Empty_" & '$wave' (x FIFO_BASE_X + FIFO_STEP * $wave,
y FIFO_BASE_Y + 100, marking "1");
end loop;
for $wave in 1..FIFO_SIZE+1 loop
create transition "t" & '$wave -1' & "_to_" & '$wave' (x FIFO_BASE_X + FIFO_STEP * $wave - FIFO_STEP / 2,
y FIFO_BASE_Y + 50);
if $wave < FIFO_SIZE+1 then
connect "1" transition "t" &'$wave -1' & "_to_" & '$wave' to place "Slot_" & '$wave';
connect "1" place "Empty_" & '$wave' to transition "t" &'$wave -1' & "_to_" & '$wave';
end if;
if $wave > 1 then
connect "1" transition "t" &'$wave -1' & "_to_" & '$wave' to place "Empty_" & '$wave - 1';
connect "1" place "Slot_" & '$wave - 1' to transition "t" &'$wave -1' & "_to_" & '$wave';
end if;
end loop;
set transition "t0_to_1" to (name "FIFO_Start");
set transition "t" & 'FIFO_SIZE' & "_to_" & 'FIFO_SIZE + 1' to (name "FIFO_End");

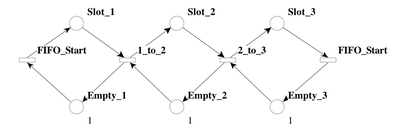

Which produces the following graph:


Here is another example that shows the power of PetriScript:

define(X,250)
define(Y,350)
define(radius,50)
define(R,150)

define(SECTIONS,15)

define(INNER_ANGLE,360/SECTIONS)
define(OUTER_ANGLE,360/(2*SECTIONS))

int $i := 0;
int $j := 0;

for $i in 1.. SECTIONS loop
create place "F" & '$i' ( x X, y Y, r radius, t $i * INNER_ANGLE);
create place "Section_" & '$i' ( x X, y Y, r R, t $i * INNER_ANGLE);
create transition "t" & '$i' & "_to_" & '$i mod SECTIONS + 1' ( x X, y Y, r R, t $i * INNER_ANGLE + OUTER_ANGLE);
end loop;
for $i in 1.. SECTIONS loop
connect place "Section_" & '$i' to transition "t"&'$i' & "_to_" & '$i mod SECTIONS + 1';

connect transition "t" & '$i' & "_to_" & '$i mod SECTIONS + 1' to place "Section_" & '$i mod SECTIONS + 1';

if $i /= 1 then
connect place "F" & '$i' to transition "t" & '$i-1' & "_to_" & '$i';
else
connect place "F1" to transition "t" & 'SECTIONS' & "_to_" & '1';
end if;

connect transition "t" &'$i mod SECTIONS + 1' & "_to_" & '($i+1) mod SECTIONS + 1' to place "F" & '$i';

end loop;

for $i in 1.. SECTIONS loop
if $i mod 3 = 0 then
set place "Section_" & '$i' to marking "1";
else
set place "F" & '$i' to marking "1";
end if;
end loop;

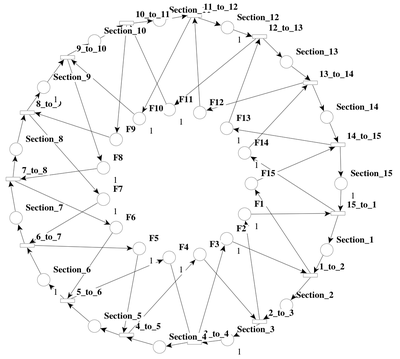

Which produces the following graph:
