A parabolic antenna is an antenna
Antenna (radio)
An antenna is an electrical device which converts electric currents into radio waves, and vice versa. It is usually used with a radio transmitter or radio receiver...

 that uses a parabolic reflector
Parabolic reflector
A parabolic reflector is a reflective device used to collect or project energy such as light, sound, or radio waves. Its shape is that of a circular paraboloid, that is, the surface generated by a parabola revolving around its axis...

, a curved surface with the cross-sectional shape of a parabola
Parabola
In mathematics, the parabola is a conic section, the intersection of a right circular conical surface and a plane parallel to a generating straight line of that surface...

, to direct the radio waves. The most common form is shaped like a dish and is popularly called a dish antenna or parabolic dish. The main advantage of a parabolic antenna is that it is highly directive
Directivity
In electromagnetics, directivity is a figure of merit for an antenna. It measures the power density the antenna radiates in the direction of its strongest emission, versus the power density radiated by an ideal isotropic radiator radiating the same total power.An antenna's directivity is a...

; it functions similarly to a searchlight
Searchlight
A searchlight is an apparatus that combines a bright light source with some form of curved reflector or other optics to project a powerful beam of light of approximately parallel rays in a particular direction, usually constructed so that it can be swiveled about.-Military use:The Royal Navy used...

 or flashlight
Flashlight
A flashlight is a hand-held electric-powered light source. Usually the light source is a small incandescent lightbulb or light-emitting diode...

 reflector to direct the radio waves in a narrow beam, or receive radio waves from one particular direction only. Parabolic antennas have some of the highest gain
Antenna gain
In electromagnetics, an antenna's power gain or simply gain is a key performance figure which combines the antenna's directivity and electrical efficiency. As a transmitting antenna, the figure describes how well the antenna converts input power into radio waves headed in a specified direction...

s, that is they can produce the narrowest beam width
Beamwidth
In telecommunication, the term beamwidth has the following meanings:1. In the radio regime, of an antenna pattern, the angle between the half-power points of the main lobe, when referenced to the peak effective radiated power of the main lobe....

 angles, of any antenna type. In order to achieve narrow beamwidths, the parabolic reflector must be much larger than the wavelength
Wavelength
In physics, the wavelength of a sinusoidal wave is the spatial period of the wave—the distance over which the wave's shape repeats.It is usually determined by considering the distance between consecutive corresponding points of the same phase, such as crests, troughs, or zero crossings, and is a...

 of the radio waves used, so parabolic antennas are used in the high frequency part of the radio spectrum
Radio spectrum
Radio spectrum refers to the part of the electromagnetic spectrum corresponding to radio frequencies – that is, frequencies lower than around 300 GHz ....

, at UHF and microwave
Microwave
Microwaves, a subset of radio waves, have wavelengths ranging from as long as one meter to as short as one millimeter, or equivalently, with frequencies between 300 MHz and 300 GHz. This broad definition includes both UHF and EHF , and various sources use different boundaries...

 (SHF
Super high frequency
Super high frequency refers to radio frequencies in the range of 3 GHz and 30 GHz. This band of frequencies is also known as the centimetre band or centimetre wave as the wavelengths range from ten to one centimetres....

) frequencies, at which wavelengths are small enough that conveniently sized dishes can be used.

Parabolic antennas are used as high-gain antenna
High-gain antenna
A high-gain antenna is an antenna with a focused, narrow radiowave beam width. This narrow beam width allows more precise targeting of the radio signal - also known as a directional antenna...

s for point-to-point communication, in applications such as microwave relay
Microwave transmission
Microwave transmission refers to the technology of transmitting information or power by the use of radio waves whose wavelengths are conveniently measured in small numbers of centimeters; these are called microwaves. This part of the radio spectrum ranges across frequencies of roughly...

 links that carry telephone and television signals between nearby cities, wireless WAN/LAN
Wireless network
Wireless network refers to any type of computer network that is not connected by cables of any kind. It is a method by which homes, telecommunications networks and enterprise installations avoid the costly process of introducing cables into a building, or as a connection between various equipment...

 links for data communications, satellite and spacecraft communication antennas, and radio telescope
Radio telescope
A radio telescope is a form of directional radio antenna used in radio astronomy. The same types of antennas are also used in tracking and collecting data from satellites and space probes...

s. Their other large use is in radar
Radar
Radar is an object-detection system which uses radio waves to determine the range, altitude, direction, or speed of objects. It can be used to detect aircraft, ships, spacecraft, guided missiles, motor vehicles, weather formations, and terrain. The radar dish or antenna transmits pulses of radio...

 antennas, which need to emit a narrow beam of radio waves to locate objects like ships and airplanes. With the advent of home satellite television
Direct broadcast satellite
Direct broadcast satellite is a term used to refer to satellite television broadcasts intended for home reception.A designation broader than DBS would be direct-to-home signals, or DTH. This has initially distinguished the transmissions directly intended for home viewers from cable television...

 dishes, parabolic antennas have become a ubiquitous feature of the modern landscape.


Design


The operating principle of a parabolic antenna is that a point source of radio waves at the focal point
Focus (optics)
In geometrical optics, a focus, also called an image point, is the point where light rays originating from a point on the object converge. Although the focus is conceptually a point, physically the focus has a spatial extent, called the blur circle. This non-ideal focusing may be caused by...

 in front of a parabolic reflector of conductive material will be reflected into a collimated
Collimated light
Collimated light is light whose rays are parallel, and therefore will spread slowly as it propagates. The word is related to "collinear" and implies light that does not disperse with distance , or that will disperse minimally...

 plane wave
Plane wave
In the physics of wave propagation, a plane wave is a constant-frequency wave whose wavefronts are infinite parallel planes of constant peak-to-peak amplitude normal to the phase velocity vector....

 beam along the axis of the reflector. Conversely, an incoming plane wave parallel to the axis will be focused to a point at the focal point.

A typical parabolic antenna consists of a metal parabolic reflector
Parabolic reflector
A parabolic reflector is a reflective device used to collect or project energy such as light, sound, or radio waves. Its shape is that of a circular paraboloid, that is, the surface generated by a parabola revolving around its axis...

 with a small feed antenna
Feed horn
In satellite dish and antenna design, a feedhorn is a small horn antenna used to convey radio waves between the transmitter and/or receiver and the reflector, particularly in parabolic antennas...

 suspended in front of the reflector at its focus, pointed back toward the reflector. The reflector is a metallic surface formed into a paraboloid
Paraboloid
In mathematics, a paraboloid is a quadric surface of special kind. There are two kinds of paraboloids: elliptic and hyperbolic. The elliptic paraboloid is shaped like an oval cup and can have a maximum or minimum point....

 of revolution and usually truncated in a circular rim that forms the diameter of the antenna. In a transmitting antenna, radio frequency
Radio frequency
Radio frequency is a rate of oscillation in the range of about 3 kHz to 300 GHz, which corresponds to the frequency of radio waves, and the alternating currents which carry radio signals...

 current
Electric current
Electric current is a flow of electric charge through a medium.This charge is typically carried by moving electrons in a conductor such as wire...

 from a transmitter
Transmitter
In electronics and telecommunications a transmitter or radio transmitter is an electronic device which, with the aid of an antenna, produces radio waves. The transmitter itself generates a radio frequency alternating current, which is applied to the antenna. When excited by this alternating...

 is supplied through a transmission line
Transmission line
In communications and electronic engineering, a transmission line is a specialized cable designed to carry alternating current of radio frequency, that is, currents with a frequency high enough that its wave nature must be taken into account...

 cable to the feed antenna
Antenna feed
In telecommunications and electronics, an antenna feed refers to the components of an antenna which feed the radio waves to the rest of the antenna structure, or in receiving antennas collect the incoming radio waves, convert them to electric currents and transmit them to the receiver...

, which converts it into radio waves. The radio waves are emitted back toward the dish by the feed antenna and reflect off the dish into a parallel beam. In a receiving antenna the incoming radio waves bounce off the dish and are focussed to a point at the feed antenna, which converts them to electric currents which travel through a transmission line
Transmission line
In communications and electronic engineering, a transmission line is a specialized cable designed to carry alternating current of radio frequency, that is, currents with a frequency high enough that its wave nature must be taken into account...

 to the receiver.

Parabolic reflector


The reflector can be of sheet metal, metal screen, or wire grill construction, and it can be either a circular "dish" or various other shapes to create different beam shapes. A metal screen reflects radio waves as well as a solid metal surface as long as the holes are smaller than 1/10 of a wavelength
Wavelength
In physics, the wavelength of a sinusoidal wave is the spatial period of the wave—the distance over which the wave's shape repeats.It is usually determined by considering the distance between consecutive corresponding points of the same phase, such as crests, troughs, or zero crossings, and is a...

, so screen reflectors are often used to reduce weight and wind loads on the dish. To achieve the maximum gain
Antenna gain
In electromagnetics, an antenna's power gain or simply gain is a key performance figure which combines the antenna's directivity and electrical efficiency. As a transmitting antenna, the figure describes how well the antenna converts input power into radio waves headed in a specified direction...

, it is necessary that the shape of the dish be accurate within a small fraction of a wavelength, to ensure the waves from different parts of the antenna arrive at the focus in phase. Large dishes often require a supporting truss
Truss
In architecture and structural engineering, a truss is a structure comprising one or more triangular units constructed with straight members whose ends are connected at joints referred to as nodes. External forces and reactions to those forces are considered to act only at the nodes and result in...

 structure behind them to provide the required stiffness.
A reflector made of a grill of parallel wires or bars oriented in one direction acts as a polarizing filter as well as a reflector. It only reflects linearly polarized
Linear polarization
In electrodynamics, linear polarization or plane polarization of electromagnetic radiation is a confinement of the electric field vector or magnetic field vector to a given plane along the direction of propagation...

 radio waves, with the electric field
Electric field
In physics, an electric field surrounds electrically charged particles and time-varying magnetic fields. The electric field depicts the force exerted on other electrically charged objects by the electrically charged particle the field is surrounding...

 parallel to the grill elements. This type is often used in radar
Radar
Radar is an object-detection system which uses radio waves to determine the range, altitude, direction, or speed of objects. It can be used to detect aircraft, ships, spacecraft, guided missiles, motor vehicles, weather formations, and terrain. The radar dish or antenna transmits pulses of radio...

 antennas. Combined with a linearly polarized feed horn
Feed horn
In satellite dish and antenna design, a feedhorn is a small horn antenna used to convey radio waves between the transmitter and/or receiver and the reflector, particularly in parabolic antennas...

, it helps filter out noise in the receiver and reduces false returns.

Feed antenna


The feed antenna at the reflector's focus is typically a low-gain
Low-gain antenna
A low-gain antenna is an antenna with a broad radiowave beam width. This very wide beam allows for a more reliable signal that is best used in mountainous regions, where the signal will propagate reasonably well regardless of terrain. The mountains become the equivalent of rocks in a stream,...

 type such as a half-wave dipole
Dipole antenna
A dipole antenna is a radio antenna that can be made of a simple wire, with a center-fed driven element. It consists of two metal conductors of rod or wire, oriented parallel and collinear with each other , with a small space between them. The radio frequency voltage is applied to the antenna at...

 or more often a small horn antenna
Horn antenna
A horn antenna or microwave horn is an antenna that consists of a flaring metal waveguide shaped like a horn to direct the radio waves. Horns are widely used as antennas at UHF and microwave frequencies, above 300 MHz...

 called a feed horn
Feed horn
In satellite dish and antenna design, a feedhorn is a small horn antenna used to convey radio waves between the transmitter and/or receiver and the reflector, particularly in parabolic antennas...

. In more complex designs, such as the Cassegrain
Cassegrain antenna
In telecommunications and radar, a Cassegrain antenna is a parabolic antenna in which the feed radiator is mounted at or behind the surface of the concave main parabolic reflector dish and is aimed at a smaller convex secondary reflector suspended in front of the primary reflector...

 and Gregorian, a secondary reflector is used to direct the energy into the parabolic reflector from a feed antenna located away from the primary focal point. The feed antenna is connected to the associated radio-frequency (RF) transmitting
Transmitter
In electronics and telecommunications a transmitter or radio transmitter is an electronic device which, with the aid of an antenna, produces radio waves. The transmitter itself generates a radio frequency alternating current, which is applied to the antenna. When excited by this alternating...

 or receiving equipment by means of a coaxial cable
Coaxial cable
Coaxial cable, or coax, has an inner conductor surrounded by a flexible, tubular insulating layer, surrounded by a tubular conducting shield. The term coaxial comes from the inner conductor and the outer shield sharing the same geometric axis...

 transmission line
Transmission line
In communications and electronic engineering, a transmission line is a specialized cable designed to carry alternating current of radio frequency, that is, currents with a frequency high enough that its wave nature must be taken into account...

 or waveguide
Waveguide
A waveguide is a structure which guides waves, such as electromagnetic waves or sound waves. There are different types of waveguides for each type of wave...

.

An advantage of parabolic antennas is that most of the structure of the antenna (all of it except the feed antenna) is nonresonant
Resonance
In physics, resonance is the tendency of a system to oscillate at a greater amplitude at some frequencies than at others. These are known as the system's resonant frequencies...

, so it can function over a wide range of frequencies
Frequency
Frequency is the number of occurrences of a repeating event per unit time. It is also referred to as temporal frequency.The period is the duration of one cycle in a repeating event, so the period is the reciprocal of the frequency...

, that is a wide bandwidth. All that is necessary to change the frequency of operation is to replace the feed antenna with one that works at the new frequency. Some parabolic antennas transmit or receive at multiple frequencies by having several feed antennas mounted at the focal point, close together.

Types


Parabolic antennas are distinguished by their shapes:
  • Paraboloidal or dish - The reflector is shaped like a paraboloid
    Paraboloid
    In mathematics, a paraboloid is a quadric surface of special kind. There are two kinds of paraboloids: elliptic and hyperbolic. The elliptic paraboloid is shaped like an oval cup and can have a maximum or minimum point....

    . This is the most common type. It radiates a narrow pencil-shaped beam along the axis of the dish.
    • Shrouded dish - Sometimes a cylindrical metal shield is attached to the rim of the dish. The shroud shields the antenna from radiation from angles outside the main beam axis, reducing the sidelobes. It is sometimes used to prevent interference in terrestrial microwave links, where several antennas using the same frequency are located close together. The shroud is coated inside with microwave absorbent material. Shrouds can reduce back lobe radiation by 10 dB.
  • Cylindrical - The reflector is curved in only one direction and flat in the other. The radio waves come to a focus not at a point but along a line. The feed is sometimes a dipole antenna
    Dipole antenna
    A dipole antenna is a radio antenna that can be made of a simple wire, with a center-fed driven element. It consists of two metal conductors of rod or wire, oriented parallel and collinear with each other , with a small space between them. The radio frequency voltage is applied to the antenna at...

     located along the focal line. Cylindrical parabolic antennas radiate a fan-shaped beam, narrow in the curved dimension, and wide in the uncurved dimension. The curved ends of the reflector are sometimes capped by flat plates, to prevent radiation out the ends, and this is called a pillbox antenna.
    • "Orange peel" - Another type is very long and narrow, shaped like the letter "C". This is called an orange peel design, and radiates an even wider fan beam. It is often used for radar
      Radar
      Radar is an object-detection system which uses radio waves to determine the range, altitude, direction, or speed of objects. It can be used to detect aircraft, ships, spacecraft, guided missiles, motor vehicles, weather formations, and terrain. The radar dish or antenna transmits pulses of radio...

       antennas.

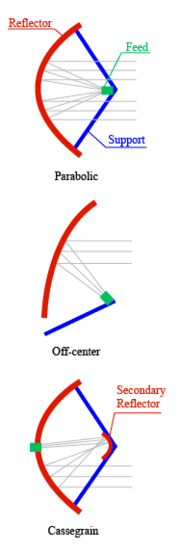

They are also classified by the type of feed
Antenna feed
In telecommunications and electronics, an antenna feed refers to the components of an antenna which feed the radio waves to the rest of the antenna structure, or in receiving antennas collect the incoming radio waves, convert them to electric currents and transmit them to the receiver...

; how the radio waves are supplied to the antenna:
  • Axial or front feed - This is the most common type of feed, with the feed antenna
    Antenna feed
    In telecommunications and electronics, an antenna feed refers to the components of an antenna which feed the radio waves to the rest of the antenna structure, or in receiving antennas collect the incoming radio waves, convert them to electric currents and transmit them to the receiver...

     located in front of the dish at the focus, on the beam axis. A disadvantage of this type is that the feed and its supports block some of the beam, which limits the aperture efficiency to only 55 - 60%.
  • Offset or off-axis feed - The reflector is an asymmetrical segment of a paraboloid, so the focus, and the feed antenna, are located to one side of the dish. The purpose of this design is to move the feed structure out of the beam path, so it doesn't block the beam. It is widely used in home satellite television
    Satellite television
    Satellite television is television programming delivered by the means of communications satellite and received by an outdoor antenna, usually a parabolic mirror generally referred to as a satellite dish, and as far as household usage is concerned, a satellite receiver either in the form of an...

     dishes, which are small enough that the feed structure would otherwise block a significant percentage of the signal.
  • Cassegrain - In a Cassegrain antenna
    Cassegrain antenna
    In telecommunications and radar, a Cassegrain antenna is a parabolic antenna in which the feed radiator is mounted at or behind the surface of the concave main parabolic reflector dish and is aimed at a smaller convex secondary reflector suspended in front of the primary reflector...

     the feed is located on or behind the dish, and radiates forward, illuminating a convex hyperboloidal secondary reflector at the focus of the dish. The radio waves from the feed reflect back off the secondary reflector to the dish, which forms the outgoing beam. An advantage of this configuration is that the feed, with its waveguides and "front end
    RF front end
    In a radio receiver circuit, the RF front end is a generic term for all the circuitry between the antenna and the first intermediate frequency stage. It consists of all the components in the receiver that process the signal at the original incoming radio frequency , before it is converted to a...

    " electronics does not have to be suspended in front of the dish, so it is used for antennas with complicated or bulky feeds, such as large satellite communication antennas and radio telescope
    Radio telescope
    A radio telescope is a form of directional radio antenna used in radio astronomy. The same types of antennas are also used in tracking and collecting data from satellites and space probes...

    s. Aperture efficiency is on the order of 65 - 70%
  • Gregorian
    Gregorian telescope
    The Gregorian telescope is a type of reflecting telescope designed by Scottish mathematician and astronomer James Gregory in the 17th century, and first built in 1673 by Robert Hooke...

    - Similar to the Cassegrain design except that the secondary reflector is concave, (ellipsoidal) in shape. Aperture efficiency over 70% can be achieved.

Feed pattern


The radiation pattern
Radiation pattern
In the field of antenna design the term radiation pattern most commonly refers to the directional dependence of the strength of the radio waves from the antenna or other source ....

 of the feed antenna
Antenna feed
In telecommunications and electronics, an antenna feed refers to the components of an antenna which feed the radio waves to the rest of the antenna structure, or in receiving antennas collect the incoming radio waves, convert them to electric currents and transmit them to the receiver...

 has to be tailored to the shape of the dish, because it has a strong influence on the aperture efficiency, which determines the antenna gain (see Gain section below). Radiation from the feed that falls outside the edge of the dish is called "spillover" and is wasted, reducing the gain and increasing the backlobes, possibly causing interference
Electromagnetic interference
Electromagnetic interference is disturbance that affects an electrical circuit due to either electromagnetic induction or electromagnetic radiation emitted from an external source. The disturbance may interrupt, obstruct, or otherwise degrade or limit the effective performance of the circuit...

 or (in receiving antennas) increasing susceptibility to ground noise. However, maximum gain is only achieved when the dish is uniformly "illuminated" with a constant field strength to its edges. So the ideal radiation pattern of a feed antenna would be a constant field strength throughout the solid angle of the dish, dropping abruptly to zero at the edges. However, practical feed antennas have radiation patterns that drop off gradually at the edges, so the feed antenna is a compromise between acceptably low spillover and adequate illumination. For most front feed horns, optimum illumination is achieved when the power radiated by the feed horn is 10 dB
Decibel
The decibel is a logarithmic unit that indicates the ratio of a physical quantity relative to a specified or implied reference level. A ratio in decibels is ten times the logarithm to base 10 of the ratio of two power quantities...

 less at the dish edge than its maximum value at the center of the dish.

History


The idea of using parabolic reflectors for radio antennas was taken from optics
Optics
Optics is the branch of physics which involves the behavior and properties of light, including its interactions with matter and the construction of instruments that use or detect it. Optics usually describes the behavior of visible, ultraviolet, and infrared light...

, where the power of a parabolic mirror to focus light into a beam has been known since classical antiquity
Classical antiquity
Classical antiquity is a broad term for a long period of cultural history centered on the Mediterranean Sea, comprising the interlocking civilizations of ancient Greece and ancient Rome, collectively known as the Greco-Roman world...

. The designs of some specific types of parabolic antenna, such as the Cassegrain
Cassegrain antenna
In telecommunications and radar, a Cassegrain antenna is a parabolic antenna in which the feed radiator is mounted at or behind the surface of the concave main parabolic reflector dish and is aimed at a smaller convex secondary reflector suspended in front of the primary reflector...

 and Gregorian
Gregorian telescope
The Gregorian telescope is a type of reflecting telescope designed by Scottish mathematician and astronomer James Gregory in the 17th century, and first built in 1673 by Robert Hooke...

, come from similarly named analogous types of reflecting telescope
Reflecting telescope
A reflecting telescope is an optical telescope which uses a single or combination of curved mirrors that reflect light and form an image. The reflecting telescope was invented in the 17th century as an alternative to the refracting telescope which, at that time, was a design that suffered from...

, which were invented by astronomer
Astronomer
An astronomer is a scientist who studies celestial bodies such as planets, stars and galaxies.Historically, astronomy was more concerned with the classification and description of phenomena in the sky, while astrophysics attempted to explain these phenomena and the differences between them using...

s during the 15th century.

German physicist Heinrich Hertz constructed the world's first parabolic reflector antenna in 1888. The antenna was a cylindrical parabolic reflector made of zinc sheet metal supported by a wooden frame, and had a spark-gap excited dipole along the focal line. Its aperture was 1.2 meters wide, with a focal length
Focal length
The focal length of an optical system is a measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus...

 of 0.12 meters, and was used at an operating frequency of about 450 MHz. With two such antennas, one used for transmitting and the other for receiving, Hertz demonstrated the existence of radio wave
Radio Wave
Radio Wave may refer to:*Radio frequency*Radio Wave 96.5, a radio station in Blackpool, UK...

s which had been predicted by James Clerk Maxwell
James Clerk Maxwell
James Clerk Maxwell of Glenlair was a Scottish physicist and mathematician. His most prominent achievement was formulating classical electromagnetic theory. This united all previously unrelated observations, experiments and equations of electricity, magnetism and optics into a consistent theory...

 some 22 years earlier.

Italian radio pioneer Guglielmo Marconi
Guglielmo Marconi
Guglielmo Marconi was an Italian inventor, known as the father of long distance radio transmission and for his development of Marconi's law and a radio telegraph system. Marconi is often credited as the inventor of radio, and indeed he shared the 1909 Nobel Prize in Physics with Karl Ferdinand...

 used a parabolic reflector during the 1930s in investigations of UHF transmission from his boat in the Mediterranean. In 1931 a microwave relay link across the English Channel
English Channel
The English Channel , often referred to simply as the Channel, is an arm of the Atlantic Ocean that separates southern England from northern France, and joins the North Sea to the Atlantic. It is about long and varies in width from at its widest to in the Strait of Dover...

 using 10 ft. (3 meter) diameter dishes was demonstrated. In 1934 Karl Jansky built the first radio telescope
Radio telescope
A radio telescope is a form of directional radio antenna used in radio astronomy. The same types of antennas are also used in tracking and collecting data from satellites and space probes...

 to use a parabolic antenna, and with it detected radio emissions from the Milky Way, a discovery which founded the field of radio astronomy
Radio astronomy
Radio astronomy is a subfield of astronomy that studies celestial objects at radio frequencies. The initial detection of radio waves from an astronomical object was made in the 1930s, when Karl Jansky observed radiation coming from the Milky Way. Subsequent observations have identified a number of...

. The development of radar
Radar
Radar is an object-detection system which uses radio waves to determine the range, altitude, direction, or speed of objects. It can be used to detect aircraft, ships, spacecraft, guided missiles, motor vehicles, weather formations, and terrain. The radar dish or antenna transmits pulses of radio...

 during World War II
World War II
World War II, or the Second World War , was a global conflict lasting from 1939 to 1945, involving most of the world's nations—including all of the great powers—eventually forming two opposing military alliances: the Allies and the Axis...

 provided a great impetus to parabolic antenna research, and saw the evolution of shaped-beam antennas, in which the curve of the reflector is different in the vertical and horizontal directions, tailored to produce a beam with a particular shape. During the 1950s dish antennas became widely used in terrestrial microwave relay communication systems.

The first parabolic antenna used for satellite communications was constructed in 1962 at Goonhilly
Goonhilly Satellite Earth Station
Goonhilly Satellite Earth Station is a large telecommunications site located on Goonhilly Downs near Helston on the Lizard peninsula in Cornwall, England, UK. Owned by BT Group plc, it was at one time the largest satellite earth station in the world, with more than 25 communications dishes in use...

 in Cornwall
Cornwall
Cornwall is a unitary authority and ceremonial county of England, within the United Kingdom. It is bordered to the north and west by the Celtic Sea, to the south by the English Channel, and to the east by the county of Devon, over the River Tamar. Cornwall has a population of , and covers an area of...

, England, UK to communicate with the Telstar
Telstar
Telstar is the name of various communications satellites, including the first such satellite to relay television signals.The first two Telstar satellites were experimental and nearly identical. Telstar 1 was launched on top of a Thor-Delta rocket on July 10, 1962...

 satellite.

Gain


The directive qualities of an antenna are measured by a dimensionless parameter called its gain
Antenna gain
In electromagnetics, an antenna's power gain or simply gain is a key performance figure which combines the antenna's directivity and electrical efficiency. As a transmitting antenna, the figure describes how well the antenna converts input power into radio waves headed in a specified direction...

, which is the ratio of the power received by the antenna from a source along its beam axis to the power received by a hypothetical isotropic antenna
Isotropic radiator
An isotropic radiator is a theoretical point source of electromagnetic or sound waves which radiates the same intensity of radiation in all directions. It has no preferred direction of radiation. It radiates uniformly in all directions over a sphere centred on the source...

. The gain of a parabolic antenna is:


where:
  • is the area of the antenna aperture, that is, the mouth of the parabolic reflector
  • is the diameter of the parabolic reflector
  • is the wavelength of the radio waves.
  • is a dimensionless parameter between 0 and 1 called the aperture efficiency
    Antenna aperture
    In electromagnetics and antenna theory, antenna aperture or effective area is a measure of how effective an antenna is at receiving the power of radio waves. The aperture is defined as the area, oriented perpendicular to the direction of an incoming radio wave, which would intercept the same...

    . The aperture efficiency of typical parabolic antennas is 0.55 to 0.70.


It can be seen that, as with any aperture antenna, the larger the aperture is, compared to the wavelength
Wavelength
In physics, the wavelength of a sinusoidal wave is the spatial period of the wave—the distance over which the wave's shape repeats.It is usually determined by considering the distance between consecutive corresponding points of the same phase, such as crests, troughs, or zero crossings, and is a...

, the higher the gain. The gain increases with the square of the ratio of aperture width to wavelength, so large parabolic antennas, such as those used for spacecraft communication and radio telescope
Radio telescope
A radio telescope is a form of directional radio antenna used in radio astronomy. The same types of antennas are also used in tracking and collecting data from satellites and space probes...

s, can have extremely high gain. Applying the above formula to the 25-meter-diameter antennas used by the VLA
Very Large Array
The Very Large Array is a radio astronomy observatory located on the Plains of San Agustin, between the towns of Magdalena and Datil, some fifty miles west of Socorro, New Mexico, USA...

 and VLBA
Very Long Baseline Array
The Very Long Baseline Array is a system of ten radio telescopes controlled remotely from the Array Operations Center in Socorro, New Mexico by the National Radio Astronomy Observatory. The array works together as the world's largest dedicated, full-time astronomical instrument using the...

 radio telescopes at a wavelength of 21 cm (1.42 GHz, a common radio astronomy
Radio astronomy
Radio astronomy is a subfield of astronomy that studies celestial objects at radio frequencies. The initial detection of radio waves from an astronomical object was made in the 1930s, when Karl Jansky observed radiation coming from the Milky Way. Subsequent observations have identified a number of...

 frequency) yields an approximate maximum gain of 140,000 times or about 50 dBi (decibel
Decibel
The decibel is a logarithmic unit that indicates the ratio of a physical quantity relative to a specified or implied reference level. A ratio in decibels is ten times the logarithm to base 10 of the ratio of two power quantities...

s above the isotropic level).

Aperture efficiency eA is a catchall variable which accounts for various losses that reduce the gain of the antenna from the maximum that could be achieved with the given aperture. The major factors reducing the aperture efficiency in parabolic antennas are:.
  • Feed spillover - Some of the radiation from the feed antenna
    Antenna feed
    In telecommunications and electronics, an antenna feed refers to the components of an antenna which feed the radio waves to the rest of the antenna structure, or in receiving antennas collect the incoming radio waves, convert them to electric currents and transmit them to the receiver...

     falls outside the edge of the dish and so doesn't contribute to the main beam.
  • Feed illumination taper - The maximum gain for any aperture antenna is only achieved when the intensity of the radiated beam is constant across the entire aperture area. However the radiation pattern from the feed antenna usually tapers off toward the outer part of the dish, so the outer parts of the dish are "illuminated" with a lower intensity of radiation. Even if the feed provided constant illumination across the angle subtended by the dish, the outer parts of the dish are farther away from the feed antenna than the inner parts, so the intensity would drop off with distance from the center. So the intensity of the beam radiated by a parabolic antenna is maximum at the center of the dish and falls off with distance from the axis, reducing the efficiency.
  • Aperture blockage - In front-fed parabolic dishes where the feed antenna is located in front of the dish in the beam path (and in Cassegrain and Gregorian designs as well), the feed structure and its supports block some of the beam. In small dishes such as home satellite dishes, where the size of the feed structure is comparable with the size of the dish, this can seriously reduce the antenna gain. To prevent this problem these types of antennas often use an offset feed, where the feed antenna is located to one side, outside the beam area. The aperture efficiency for these types of antennas can reach 0.7 to 0.8.
  • Shape errors - random surface errors in the shape of the reflector reduce efficiency. The loss is approximated by Ruze's Equation
    Ruze's Equation
    Ruze's Equation is an equation relating the gain of an antenna to the RMS of the random surface errors. The equation is applicable to parabolic reflector and antennas, and recently extended to phased arrays. The equation is named after John Ruze who introduced the equation in a paper he wrote in 1952...

    .

For theoretical considerations of mutual interference (at frequencies between 2 and c. 30 GHz - typically in the Fixed Satellite Service
Fixed Service Satellite
Fixed Service Satellite , is the official classification for geostationary communications satellites used for broadcast feeds for television stations and radio stations and broadcast networks, as well as for telephony, telecommunications and data communications.FSS satellites have also been used...

) where specific antenna performance has not been defined, a reference antenna based on Recommendation ITU-R
ITU-R
The ITU Radiocommunication Sector is one of the three sectors of the International Telecommunication Union and is responsible for radio communication....

 S.465 is used to calculate the interference, which will include the likely sidelobes for off-axis effects.

Beamwidth


The angular width of the beam radiated by high-gain antennas is measured by the half-power beam width (HPBW), which is the angular separation between the points on the antenna radiation pattern
Radiation pattern
In the field of antenna design the term radiation pattern most commonly refers to the directional dependence of the strength of the radio waves from the antenna or other source ....

 at which the power drops to one-half (-3 dB) its maximum value. For parabolic antennas, the HPBW θ is given by:


where k is a factor which depends on the shape of the reflector and the feed illumination pattern. For a "typical" parabolic antenna k = 70 when θ is in degrees.

For a typical 2 meter satellite dish
Satellite dish
A satellite dish is a dish-shaped type of parabolic antenna designed to receive microwaves from communications satellites, which transmit data transmissions or broadcasts, such as satellite television.-Principle of operation:...

 operating on C band
C band
The C band is a name given to certain portions of the electromagnetic spectrum, including wavelengths of microwaves that are used for long-distance radio telecommunications. The IEEE C-band - and its slight variations - contains frequency ranges that are used for many satellite communications...

 (4 GHz), like the one shown at right, this formula gives a beamwidth of about 2.6°. For the Arecibo antenna at 2.4 GHz the beamwidth is 0.028°. It can be seen that parabolic antennas can produce very narrow beams, and aiming them can be a problem. Some parabolic dishes are equipped with a boresight
Boresight
Boresight is a term used to describe crude adjustments made to an optical firearm sight, or iron sights, to align the firearm barrel and sights. This method is usually used to pre-align the sights, which makes zeroing much faster.Traditional boresighting, as the name suggests involves removing...

 so they can be aimed accurately at the other antenna.

It can be seen there is an inverse relation between gain and beam width. By combining the beamwidth equation with the gain equation, the relation is:
