An
opposed-piston engine is a
reciprocatingA reciprocating engine, also often known as a piston engine, is a heat engine that uses one or more reciprocating pistons to convert pressure into a rotating motion. This article describes the common features of all types...
internal combustion engineThe internal combustion engine is an engine in which the combustion of a fuel occurs with an oxidizer in a combustion chamber. In an internal combustion engine, the expansion of the high-temperature and high -pressure gases produced by combustion apply direct force to some component of the engine...
in which each
cylinderA cylinder is the central working part of a reciprocating engine or pump, the space in which a piston travels. Multiple cylinders are commonly arranged side by side in a bank, or engine block, which is typically cast from aluminum or cast iron before receiving precision machine work...
has a
pistonA piston is a component of reciprocating engines, reciprocating pumps, gas compressors and pneumatic cylinders, among other similar mechanisms. It is the moving component that is contained by a cylinder and is made gas-tight by piston rings. In an engine, its purpose is to transfer force from...
at both ends, and no
cylinder headIn an internal combustion engine, the cylinder head sits above the cylinders on top of the cylinder block. It closes in the top of the cylinder, forming the combustion chamber. This joint is sealed by a head gasket...
.
Configurations
Some variations of the Opposed Piston or OP designs use a single
crankshaftThe crankshaft, sometimes casually abbreviated to crank, is the part of an engine which translates reciprocating linear piston motion into rotation...
, such as the Doxford ship engines and the Commer OP truck engines. They should not be confused with
flat engineA flat engine is an internal combustion engine with multiple pistons that move in a horizontal plane. Typically, the layout has cylinders arranged in two banks on either side of a single crankshaft and is sometimes known as the boxer, or horizontally opposed engine. The concept was patented in 1896...
s. Though flat engines are sometimes referred to as horizontally opposed, they are very different mechanically.
A more common layout uses two crankshafts, with the crankshafts geared together, or even three geared crankshafts in the
Napier DelticThe Napier Deltic engine is a British opposed-piston valveless, two-stroke diesel engine used in marine and locomotive applications, designed and produced by Napier & Son...
diesel engines. The Deltic uses three crankshafts serving three banks of double-ended cylinders arranged in an equilateral triangle, with the crankshafts at the corners. These were used in railway locomotives and to power fast patrol boats. Both types are now largely obsolete, although the
Royal NavyThe Royal Navy is the naval warfare service branch of the British Armed Forces. Founded in the 16th century, it is the oldest service branch and is known as the Senior Service...
still maintains some Deltic-powered Hunt class mine countermeasure vessels.
The first opposed-piston diesel engines were developed in the beginning of the 20th century. In 1907, Raymond Koreyvo, the engineer of Kolomna Works, built an opposed-piston two-stroke diesel with two crankshafts connected by gearing. Although Koreyvo patented his engine in France in November 1907, the management would not go on to manufacture opposed-piston engines.
The first Junkers engines had one crankshaft, the upper pistons having long connecting rods outside the cylinder. These engines were the forerunner of the Doxford marine engine, and this layout was also used for two- and three-cylinder car engines from around 1900-1922 by Gobron-Brillié. There is currently a resurgence of this design in a boxer configuration as a small diesel aircraft engine, and for other applications, called the 'OPOC' engine by Advanced Propulsion Technologies, Inc. of
CaliforniaCalifornia is a state located on the West Coast of the United States. It is by far the most populous U.S. state, and the third-largest by land area...
. Later Junkers engines, such as the
Junkers Jumo 205The Junkers Jumo 205 aircraft engine was the most famous of a series of diesel engines that were the first, and for more than half a century, the only successful aircraft diesel engines. The Jumo 204 first entered service in 1932. Later engines in the series were styled Jumo 206, Jumo 207 and Jumo...
diesel aircraft engine, use two crankshafts, one at either end of a single bank of cylinders. There are efforts to reintroduce the opposed-piston diesel aircraft engine with twin geared crankshafts for
General aviationGeneral aviation is one of the two categories of civil aviation. It refers to all flights other than military and scheduled airline and regular cargo flights, both private and commercial. General aviation flights range from gliders and powered parachutes to large, non-scheduled cargo jet flights...
applications, by both Dair and PowerPlant Developments in the UK.
This configuration has also been used for marine auxiliary generators and for larger marine propulsion engines, notably
Fairbanks-MorseFairbanks Morse and Company was a manufacturing company in the late 19th and early 20th century. Originally a weighing scale manufacturer, it later diversified into pumps, engines, windmills, locomotives and industrial supplies until it was merged in 1958...
diesel engineA diesel engine is an internal combustion engine that uses the heat of compression to initiate ignition to burn the fuel, which is injected into the combustion chamber...
s used in both conventional and nuclear US
submarineA submarine is a watercraft capable of independent operation below the surface of the water. It differs from a submersible, which has more limited underwater capability...
s. Fairbanks-Morse also used it in
diesel locomotiveA diesel locomotive is a type of railroad locomotive in which the prime mover is a diesel engine, a reciprocating engine operating on the Diesel cycle as invented by Dr. Rudolf Diesel...
s starting in 1944. With the addition of a
superchargerA supercharger is an air compressor used for forced induction of an internal combustion engine.The greater mass flow-rate provides more oxygen to support combustion than would be available in a naturally aspirated engine, which allows more fuel to be burned and more work to be done per cycle,...
or
turbochargerA turbocharger, or turbo , from the Greek "τύρβη" is a centrifugal compressor powered by a turbine that is driven by an engine's exhaust gases. Its benefit lies with the compressor increasing the mass of air entering the engine , thereby resulting in greater performance...
, opposed-piston designs can make efficient
two-stroke cycleA two-stroke engine is an internal combustion engine that completes the process cycle in one revolution of the crankshaft...
Diesel engines. Attempts were made to build non-diesel 4-stroke engines, but as there is no cylinder head, the bad location of the valves and the spark plug makes them inefficient.
Koreyvo, Jumo and Deltic engines used one piston per cylinder to expose an intake port, and the other to expose an exhaust port. Each piston is referred to as either an
intake piston or an
exhaust piston depending on its function in this regard. This layout gives superior scavenging, as gas flow through the cylinder is axial rather than radial, and simplifies design of the piston crowns. In the Jumo 205 and its variants, the upper crankshaft serves the exhaust pistons, and the lower crankshaft the intake pistons. In designs using multiple cylinder banks, such as the
Junkers Jumo 223The Junkers Jumo 223 was an experimental 24-cylinder aircraft engine based on the Junkers Jumo 205. Like the Jumo 205, it was an opposed piston two-stroke diesel engine. It had four banks of six cylinders in a rhomboid configuration, with four crankshafts one at each vertex of the rhombus, and 48...
and the Deltic, each big end bearing serves one inlet and one exhaust piston, using a forked connecting rod for the exhaust piston.
The Doxford Engine Works of the UK designed and built very large opposed-piston engines for marine use. These engines differ in design from Jumo and Fairbanks-Morse engines by having external connecting rods linking the upper and lower pistons, thus requiring a single crankshaft. The first engine of this type was developed by Karl Otto Keller in 1912. Doxford obtained a sole UK license from Oechelhauser and
JunkersJunkers Flugzeug- und Motorenwerke AG , more commonly Junkers, was a major German aircraft manufacturer. It produced some of the world's most innovative and best-known airplanes over the course of its fifty-plus year history in Dessau, Germany. It was founded there in 1895 by Hugo Junkers,...
to build this design of engine. After World War I, these engines were produced in a number of models, such as the P and J series, with outputs as high as 20000 hp. Certain models were license-built in the US. Production of Doxford engines in the UK ceased in 1980.
Assembly and function

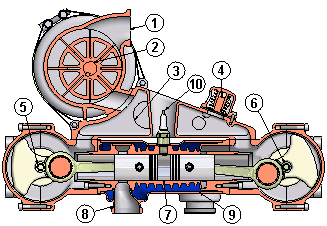

Shown at right is the layout of a two-stroke engine similar to the one developed by engineer Kurt Bang at the Prüssing Office on the basis of the prewar DKW race engine. There were two versions: one with a
displacementEngine displacement is the volume swept by all the pistons inside the cylinders of an internal combustion engine in a single movement from top dead centre to bottom dead centre . It is commonly specified in cubic centimeters , litres , or cubic inches...
of 250 cm³ (15.2 cu in), and one with 350 cm³ (21.3 cu in) displacement. The engine had two
cylindersA cylinder is the central working part of a reciprocating engine or pump, the space in which a piston travels. Multiple cylinders are commonly arranged side by side in a bank, or engine block, which is typically cast from aluminum or cast iron before receiving precision machine work...
with four
pistonA piston is a component of reciprocating engines, reciprocating pumps, gas compressors and pneumatic cylinders, among other similar mechanisms. It is the moving component that is contained by a cylinder and is made gas-tight by piston rings. In an engine, its purpose is to transfer force from...
s, two
crankshaftThe crankshaft, sometimes casually abbreviated to crank, is the part of an engine which translates reciprocating linear piston motion into rotation...
s and a
superchargerA supercharger is an air compressor used for forced induction of an internal combustion engine.The greater mass flow-rate provides more oxygen to support combustion than would be available in a naturally aspirated engine, which allows more fuel to be burned and more work to be done per cycle,...
. The crankshafts were connected by
gearA gear is a rotating machine part having cut teeth, or cogs, which mesh with another toothed part in order to transmit torque. Two or more gears working in tandem are called a transmission and can produce a mechanical advantage through a gear ratio and thus may be considered a simple machine....
s.
The supercharger takes in the fuel-air mixture, compressing it and pushing it into the airbox. From here it reaches the crank housings. On the outlet side it cools the thermically high loaded piston. After
ignitionAn ignition system is a system for igniting a fuel-air mixture. Ignition systems are well known in the field of internal combustion engines such as those used in petrol engines used to power the majority of motor vehicles, but they are also used in many other applications such as in oil-fired and...
the pistons move outwards, performing the power stroke. At first, the outlet piston opens its slots in the cylinder. The remaining pressure accelerates the gas column towards the exhaust. Then the other piston opens the inlet slots. The pressurized fresh mixture pushes the remaining waste gas out. While the inlet is still opened, the outlet is closed. The supercharger forces additional gas into the cylinder until the inlet slots are closed by the piston. Then the compression stroke starts and the cycle repeats. This type of two-cycle system is similar to the famous Grey Marine Diesel, later to be known as the GM Diesel (
Detroit DieselAs a corporation, Daimler Trucks North America has decided to rename the company "DETROIT".Detroit Diesel Corporation is an American-based diesel engine producer headquartered in Detroit, Michigan, USA...
). Production ceased in 1998 but the U.S. and British Militaries still purchase remanufactured engines on occasion.
Free-piston engine
An interesting variation on the opposed-piston engine is the free-piston engine which was patented in 1934 by Raúl Pateras de Pescara. It has no crankshaft and the pistons are returned after each firing stroke by compression and expansion of air in a separate cylinder. Early applications were for use as an air compressor or as a gas generator for a
gas turbineA gas turbine, also called a combustion turbine, is a type of internal combustion engine. It has an upstream rotating compressor coupled to a downstream turbine, and a combustion chamber in-between....
, such as the
Pratt & Whitney PT1-External links:*...
design. There is now renewed interest in it for powering vehicles by using it to drive a
linear alternatorA linear alternator is essentially a linear motor used as an electrical generator.An alternator is a type of alternating current electrical generator. The devices are often physically equivalent. The principal difference is in how they are used and which direction the energy flows...
.
