Encyclopedia
In telecommunication
Telecommunication
Telecommunication is the transmission of information over significant distances to communicate. In earlier times, telecommunications involved the use of visual signals, such as beacons, smoke signals, semaphore telegraphs, signal flags, and optical heliographs, or audio messages via coded...

s, a Network Interface Device (NID) is a device that serves as the demarcation point
Demarcation point
In telephony, the demarcation point is the point at which the public switched telephone network ends and connects with the customer's on-premises wiring. It is the dividing line which determines who is responsible for installation and maintenance of wiring and equipment -- customer/subscriber, or...

 between the carrier's local loop
Local loop
In telephony, the local loop is the physical link or circuit that connects from the demarcation point of the customer premises to the edge of the carrier or telecommunications service provider's network...

 and the customer's premises wiring
On-premises wiring
In telecommunication, on-premises wiring is customer-owned communications transmission lines. It is also called customer premises wiring . The transmission lines can be metallic or optical fiber, and may be installed within or between buildings.Premises wiring may consist of horizontal wiring,...

.

Generically, an NID may also be called a Network Interface Unit (NIU), Telephone Network Interface (TNI), or telephone network box. A smartjack is a type of NID with capabilities beyond simple electrical connection, such as diagnostics. An Optical Network Terminal (ONT) is a type of NID used with fiber-to-the-premises applications.

Wiring termination




The simplest NIDs are essentially just a specialized set of wiring terminals
Terminal (electronics)
A terminal is the point at which a conductor from an electrical component, device or network comes to an end and provides a point of connection to external circuits. A terminal may simply be the end of a wire or it may be fitted with a connector or fastener...

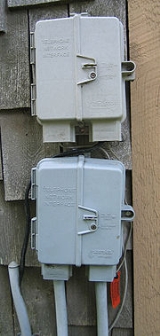

. These will typically take the form of a small, weather-proof box, mounted on the outside of the building. The telephone line
Telephone line
A telephone line or telephone circuit is a single-user circuit on a telephone communication system...

 from the telephone company
Telephone company
A telephone company is a service provider of telecommunications services such as telephony and data communications access. Many were at one time nationalized or state-regulated monopolies...

 will enter the NID and be connected to one side. The customer connects their wiring to the other side. A single NID enclosure may contain termination for a single line or multiple lines.

In its role as the demarcation point, the NID separates the telephone company's equipment from the customer's wiring and equipment. The telephone company owns the NID itself, and all wiring up to it. Anything past the NID is the customer's responsibility. To facilitate this, there is typically a test jack inside the NID. Accessing the test jack disconnects the customer premises wiring from the network
Public switched telephone network
The public switched telephone network is the network of the world's public circuit-switched telephone networks. It consists of telephone lines, fiber optic cables, microwave transmission links, cellular networks, communications satellites, and undersea telephone cables, all inter-connected by...

 and allows the customer to plug a "known good" telephone
Telephone
The telephone , colloquially referred to as a phone, is a telecommunications device that transmits and receives sounds, usually the human voice. Telephones are a point-to-point communication system whose most basic function is to allow two people separated by large distances to talk to each other...

 into the jack to isolate trouble. If the telephone works at the test jack, the problem is the customer's wiring, and the customer is responsible for repair. If the telephone does not work, the line is faulty and the telephone company is responsible for repair.

Most NIDs also include "circuit protectors", which are surge protector
Surge protector
A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold...

s for a telephone line. They protect customer wiring, equipment, and personnel from any transient energy
Energy
In physics, energy is an indirectly observed quantity. It is often understood as the ability a physical system has to do work on other physical systems...

 on the line, such as from a lightning
Lightning
Lightning is an atmospheric electrostatic discharge accompanied by thunder, which typically occurs during thunderstorms, and sometimes during volcanic eruptions or dust storms...

 strike to a telephone pole.

Simple NIDs contain no "intelligence" or "logic"; they are "dumb" devices. They have no capabilities beyond wiring termination, circuit protection, and providing a place to connect test equipment.

Smartjack


Several types of NIDs provide more than just a terminal for the connection of wiring. Such NIDs are colloquially called "smartjacks" as an indication of their built-in "intelligence", as opposed to a simple NID, which is just a wiring device. Smartjacks are typically used for more complicated types of telecommunications service, such as T1 lines
Digital Signal 1
Digital signal 1 is a T-carrier signaling scheme devised by Bell Labs. DS1 is a widely used standard in telecommunications in North America and Japan to transmit voice and data between devices. E1 is used in place of T1 outside North America, Japan, and South Korea...

. Plain old telephone service
Plain old telephone service
Plain old telephone service is the voice-grade telephone service that remains the basic form of residential and small business service connection to the telephone network in many parts of the world....

 lines generally cannot be equipped with smartjacks.

Despite the name, most smartjacks are much more than a simple telephone jack
Telephone plug
A telephone plug is a type of male connector used to connect a telephone to the telephone wiring in a home or business, and in turn to a local telephone network. It is inserted into its female counterpart, a telephone "jack", commonly affixed to a wall or baseboard...

. One common form for a smartjack is a circuit board
Printed circuit board
A printed circuit board, or PCB, is used to mechanically support and electrically connect electronic components using conductive pathways, tracks or signal traces etched from copper sheets laminated onto a non-conductive substrate. It is also referred to as printed wiring board or etched wiring...

 with a face plate on one edge, mounted in an enclosure.

A smartjack may provide signal conversion, converting codes and protocols (e.g. framing types) to the type needed by the customer equipment. It may buffer and/or regenerate the signal, to compensate for signal degradation from line transmission, similar to what a repeater
Repeater
A repeater is an electronic device that receives asignal and retransmits it at a higher level and/or higher power, or onto the other side of an obstruction, so that the signal can cover longer distances.-Description:...

 does.

Smartjacks also typically provide diagnostic capabilities. A very common capability provided by a smartjack is loopback
Loopback
Loopback describes ways of routing electronic signals, digital data streams, or flows of items from their originating facility back to the source without intentional processing or modification...

, such that the signal from the telephone company is transmitted back to the telephone company. This allows the telephone company to test the line from the central office, without the need to have test equipment at the customer site. The telephone company usually has the ability to remotely activate loopback, without even needing personnel at the customer site. When looped back, the customer equipment is disconnected from the line.

Additional smartjack diagnostic capabilities include alarm indication signal
Alarm indication signal
Alarm indication signal is a signal transmitted by an intermediate element of a multi-node transport circuit that is part of a concatenated telecommunications system to alert the receiving end of the circuit that a segment of the end-to-end link has failed at a logical or physical level, even if...

, which reports trouble at one end of the line to the far end. This helps the telephone company know if trouble is present in the line, the smartjack, or customer equipment. Indicator lights to show configuration, status, and alarms are also common.

Smartjacks typically derive their operating power from the telephone line, rather than relying on premises electrical power, although this is not a universal rule.

Optical network terminals


In fiber-to-the-premises systems, the signal is transmitted to the customer premises using fiber optic technologies. Unlike many conventional telephone technologies, this does not provide power for premises equipment, nor is it suitable for direct connection to customer equipment. An ONT (optical network terminal) is used to terminate the fiber optic line, demultiplex
Multiplexing
The multiplexed signal is transmitted over a communication channel, which may be a physical transmission medium. The multiplexing divides the capacity of the low-level communication channel into several higher-level logical channels, one for each message signal or data stream to be transferred...

 the signal into its component parts (voice telephone, television
Television
Television is a telecommunication medium for transmitting and receiving moving images that can be monochrome or colored, with accompanying sound...

, and Internet), and provide power to customer telephones. As the ONT must derive its power from the customer premises electrical supply, many ONTs have the option for a battery
Battery (electricity)
An electrical battery is one or more electrochemical cells that convert stored chemical energy into electrical energy. Since the invention of the first battery in 1800 by Alessandro Volta and especially since the technically improved Daniell cell in 1836, batteries have become a common power...

 backup, to maintain service in the event of a power outage
Power outage
A power outage is a short- or long-term loss of the electric power to an area.There are many causes of power failures in an electricity network...

.
