A light-emitting diode (LED) is a semiconductor
Semiconductor
A semiconductor is a material with electrical conductivity due to electron flow intermediate in magnitude between that of a conductor and an insulator. This means a conductivity roughly in the range of 103 to 10−8 siemens per centimeter...

 light source. LEDs are used as indicator lamps in many devices and are increasingly used for other lighting
Lighting
Lighting or illumination is the deliberate application of light to achieve some practical or aesthetic effect. Lighting includes the use of both artificial light sources such as lamps and light fixtures, as well as natural illumination by capturing daylight...

. Introduced as a practical electronic component in 1962, early LEDs emitted low-intensity red light, but modern versions are available across the visible
Visible spectrum
The visible spectrum is the portion of the electromagnetic spectrum that is visible to the human eye. Electromagnetic radiation in this range of wavelengths is called visible light or simply light. A typical human eye will respond to wavelengths from about 390 to 750 nm. In terms of...

, ultraviolet
Ultraviolet
Ultraviolet light is electromagnetic radiation with a wavelength shorter than that of visible light, but longer than X-rays, in the range 10 nm to 400 nm, and energies from 3 eV to 124 eV...

, and infrared
Infrared
Infrared light is electromagnetic radiation with a wavelength longer than that of visible light, measured from the nominal edge of visible red light at 0.74 micrometres , and extending conventionally to 300 µm...

 wavelengths, with very high brightness.

When a light-emitting diode is forward-biased (switched on), electrons are able to recombine
Carrier generation and recombination
In the solid state physics of semiconductors, carrier generation and recombination are processes by which mobile charge carriers are created and eliminated. Carrier generation and recombination processes are fundamental to the operation of many optoelectronic semiconductor devices, such as...

 with electron hole
Electron hole
An electron hole is the conceptual and mathematical opposite of an electron, useful in the study of physics, chemistry, and electrical engineering. The concept describes the lack of an electron at a position where one could exist in an atom or atomic lattice...

s within the device, releasing energy in the form of photon
Photon
In physics, a photon is an elementary particle, the quantum of the electromagnetic interaction and the basic unit of light and all other forms of electromagnetic radiation. It is also the force carrier for the electromagnetic force...

s.
Discussion
Ask a question about 'Light-emitting diode'
Start a new discussion about 'Light-emitting diode'
Answer questions from other users
Full Discussion Forum

Unanswered Questions
Encyclopedia
A light-emitting diode (LED) is a semiconductor
Semiconductor
A semiconductor is a material with electrical conductivity due to electron flow intermediate in magnitude between that of a conductor and an insulator. This means a conductivity roughly in the range of 103 to 10−8 siemens per centimeter...

 light source. LEDs are used as indicator lamps in many devices and are increasingly used for other lighting
Lighting
Lighting or illumination is the deliberate application of light to achieve some practical or aesthetic effect. Lighting includes the use of both artificial light sources such as lamps and light fixtures, as well as natural illumination by capturing daylight...

. Introduced as a practical electronic component in 1962, early LEDs emitted low-intensity red light, but modern versions are available across the visible
Visible spectrum
The visible spectrum is the portion of the electromagnetic spectrum that is visible to the human eye. Electromagnetic radiation in this range of wavelengths is called visible light or simply light. A typical human eye will respond to wavelengths from about 390 to 750 nm. In terms of...

, ultraviolet
Ultraviolet
Ultraviolet light is electromagnetic radiation with a wavelength shorter than that of visible light, but longer than X-rays, in the range 10 nm to 400 nm, and energies from 3 eV to 124 eV...

, and infrared
Infrared
Infrared light is electromagnetic radiation with a wavelength longer than that of visible light, measured from the nominal edge of visible red light at 0.74 micrometres , and extending conventionally to 300 µm...

 wavelengths, with very high brightness.

When a light-emitting diode is forward-biased (switched on), electrons are able to recombine
Carrier generation and recombination
In the solid state physics of semiconductors, carrier generation and recombination are processes by which mobile charge carriers are created and eliminated. Carrier generation and recombination processes are fundamental to the operation of many optoelectronic semiconductor devices, such as...

 with electron hole
Electron hole
An electron hole is the conceptual and mathematical opposite of an electron, useful in the study of physics, chemistry, and electrical engineering. The concept describes the lack of an electron at a position where one could exist in an atom or atomic lattice...

s within the device, releasing energy in the form of photon
Photon
In physics, a photon is an elementary particle, the quantum of the electromagnetic interaction and the basic unit of light and all other forms of electromagnetic radiation. It is also the force carrier for the electromagnetic force...

s. This effect is called electroluminescence
Electroluminescence
Electroluminescence is an optical phenomenon and electrical phenomenon in which a material emits light in response to the passage of an electric current or to a strong electric field...

 and the color
Color
Color or colour is the visual perceptual property corresponding in humans to the categories called red, green, blue and others. Color derives from the spectrum of light interacting in the eye with the spectral sensitivities of the light receptors...

 of the light (corresponding to the energy of the photon) is determined by the energy gap of the semiconductor. LEDs are often small in area (less than 1 mm2), and integrated optical components may be used to shape its radiation pattern. LEDs present many advantages over incandescent light sources including lower energy consumption
Energy conservation
Energy conservation refers to efforts made to reduce energy consumption. Energy conservation can be achieved through increased efficient energy use, in conjunction with decreased energy consumption and/or reduced consumption from conventional energy sources...

, longer lifetime
Service life
A product's service life is its expected lifetime, or the acceptable period of use in service. It is the time that any manufactured item can be expected to be 'serviceable' or supported by its manufacturer....

, improved robustness, smaller size, and faster switching. LEDs powerful enough for room lighting are relatively expensive and require more precise current and heat management than compact fluorescent lamp
Fluorescent lamp
A fluorescent lamp or fluorescent tube is a gas-discharge lamp that uses electricity to excite mercury vapor. The excited mercury atoms produce short-wave ultraviolet light that then causes a phosphor to fluoresce, producing visible light. A fluorescent lamp converts electrical power into useful...

 sources of comparable output.

Light-emitting diodes are used in applications as diverse as replacements for aviation lighting, automotive lighting (in particular brake lamps, turn signals, and indicators) as well as in traffic signals. LEDs have allowed new text, video displays, and sensors to be developed, while their high switching rates are also useful in advanced communications technology. Infrared
Infrared
Infrared light is electromagnetic radiation with a wavelength longer than that of visible light, measured from the nominal edge of visible red light at 0.74 micrometres , and extending conventionally to 300 µm...

 LEDs are also used in the remote control
Remote control
A remote control is a component of an electronics device, most commonly a television set, used for operating the television device wirelessly from a short line-of-sight distance.The remote control is usually contracted to remote...

 units of many commercial products including televisions, DVD players, and other domestic appliances.

Discoveries and early devices



Electroluminescence
Electroluminescence
Electroluminescence is an optical phenomenon and electrical phenomenon in which a material emits light in response to the passage of an electric current or to a strong electric field...

 as a phenomenon was discovered in 1907 by the British experimenter H. J. Round
H. J. Round
Captain Henry Joseph Round was one of the early pioneers of radio and received 117 patents. He was the first to report observation of electroluminescence from a diode, leading to the discovery of the light-emitting diode...

 of Marconi Labs
Marconi Company
The Marconi Company Ltd. was founded by Guglielmo Marconi in 1897 as The Wireless Telegraph & Signal Company...

, using a crystal of silicon carbide
Silicon carbide
Silicon carbide , also known as carborundum, is a compound of silicon and carbon with chemical formula SiC. It occurs in nature as the extremely rare mineral moissanite. Silicon carbide powder has been mass-produced since 1893 for use as an abrasive...

 and a cat's-whisker detector.
Russian Oleg Vladimirovich Losev reported creation of the first LED in 1927.
His research was distributed in Russian, German and British scientific journals, but no practical use was made of the discovery for several decades. Rubin Braunstein of the Radio Corporation of America reported on infrared emission from gallium arsenide (GaAs) and other semiconductor alloys in 1955. Braunstein observed infrared emission generated by simple diode structures using gallium antimonide (GaSb), GaAs, indium phosphide (InP), and silicon-germanium (SiGe) alloys at room temperature and at 77 kelvin.

In 1961, American experimenters Robert Biard and Gary Pittman working at Texas Instruments
Texas Instruments
Texas Instruments Inc. , widely known as TI, is an American company based in Dallas, Texas, United States, which develops and commercializes semiconductor and computer technology...

, found that GaAs emitted infrared radiation when electric current was applied and received the patent for the infrared LED.

The first practical visible-spectrum (red) LED was developed in 1962 by Nick Holonyak Jr.
Nick Holonyak
Nick Holonyak, Jr. invented the first practically useful visible LED in 1962 while working as a consulting scientist at a General Electric Company laboratory in Syracuse, New York and has been called "the father of the light-emitting diode"...

, while working at General Electric Company. Holonyak is seen as the "father of the light-emitting diode".
M. George Craford, a former graduate student of Holonyak, invented the first yellow LED and improved the brightness of red and red-orange LEDs by a factor of ten in 1972. In 1976, T.P. Pearsall created the first high-brightness, high-efficiency LEDs for optical fiber telecommunications by inventing new semiconductor materials specifically adapted to optical fiber transmission wavelengths.

Until 1968, visible and infrared LEDs were extremely costly, on the order of US $200 per unit, and so had little practical use.
The Monsanto Company was the first organization to mass-produce visible LEDs, using gallium arsenide phosphide in 1968 to produce red LEDs suitable for indicators.
Hewlett Packard (HP) introduced LEDs in 1968, initially using GaAsP supplied by Monsanto. The technology proved to have major uses for alphanumeric displays and was integrated into HP's early handheld calculators. In the 1970s commercially successful LED devices at under five cents each were produced by Fairchild Optoelectronics. These devices employed compound semiconductor chips fabricated with the planar process
Planar process
The planar process is a manufacturing process used in the semiconductor industry to build individual components of a transistor, and in turn, connect those transistors together. It is the primary process by which modern integrated circuits are built...

 invented by Dr. Jean Hoerni at Fairchild Semiconductor
Fairchild Semiconductor
Fairchild Semiconductor International, Inc. is an American semiconductor company based in San Jose, California. Founded in 1957, it was a pioneer in transistor and integrated circuit manufacturing...

. The combination of planar processing for chip fabrication and innovative packaging methods enabled the team at Fairchild led by optoelectronics pioneer Thomas Brandt to achieve the needed cost reductions. These methods continue to be used by LED producers.

Practical use


The first commercial LEDs were commonly used as replacements for incandescent
Incandescence
Incandescence is the emission of light from a hot body as a result of its temperature. The term derives from the Latin verb incandescere, to glow white....

 and neon
Neon lamp
A neon lamp is a miniature gas discharge lamp that typically contains neon gas at a low pressure in a glass capsule. Only a thin region adjacent to the electrodes glows in these lamps, which distinguishes them from the much longer and brighter neon tubes used for signage...

 indicator lamps, and in seven-segment display
Seven-segment display
A seven-segment display , or seven-segment indicator, is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot-matrix displays...

s, first in expensive equipment such as laboratory and electronics test equipment, then later in such appliances as TVs, radios, telephones, calculators, and even watches (see list of signal uses). These red LEDs were bright enough only for use as indicators, as the light output was not enough to illuminate an area. Readouts in calculators were so small that plastic lenses were built over each digit to make them legible. Later, other colors grew widely available and also appeared in appliances and equipment. As LED materials technology grew more advanced, light output rose, while maintaining efficiency and reliability at acceptable levels. The invention and development of the high-power white-light LED led to use for illumination, which is fast replacing incandescent and fluorescent lighting.
(see list of illumination applications).

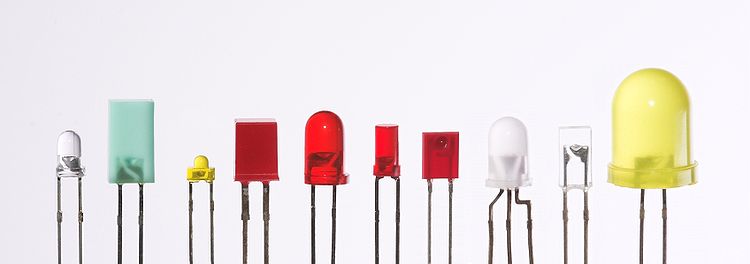

Most LEDs were made in the very common 5 mm T1¾ and 3 mm T1 packages, but with rising power output, it has grown increasingly necessary to shed excess heat to maintain reliability, so more complex packages have been adapted for efficient heat dissipation. Packages for state-of-the-art high-power LEDs bear little resemblance to early LEDs.


Continuing development


The first high-brightness blue LED was demonstrated by Shuji Nakamura
Shuji Nakamura
is a professor at the Materials Department of the College of Engineering, University of California, Santa Barbara .- Career :Nakamura graduated from the University of Tokushima in 1977 with a degree in electronic engineering, and obtained a master's degree in the same subject two years later, after...

 of Nichia Corporation
Nichia Corporation
The is a Japanese chemical engineering and manufacturing company, headquartered in Tokushima, Japan with global subsidiaries, that specializes in the manufacturing and distribution of phosphors, including light-emitting diodes , laser diodes, battery materials, and calcium chloride...

 and was based on InGaN
Indium gallium nitride
Indium gallium nitride is a semiconductor material made of a mix of gallium nitride and indium nitride . It is a ternary group III/group V direct bandgap semiconductor. Its bandgap can be tuned by varying the amount of indium in the alloy...

, borrowing on critical developments in GaN nucleation on sapphire substrates and the demonstration of p-type doping of GaN, which were developed by Isamu Akasaki
Isamu Akasaki
is a Japanese scientist, best known for inventing p-n junction blue LEDs using gallium nitride as early as 1989.-Blue LEDs:Akasaki was born in Kagoshima Prefecture in 1929, and received a Bachelor of Science degree in 1952 from Kyoto University. He received his PhD degree in Electronics from...

 and H. Amano in Nagoya. In 1995, Alberto Barbieri at the Cardiff University
Cardiff University
Cardiff University is a leading research university located in the Cathays Park area of Cardiff, Wales, United Kingdom. It received its Royal charter in 1883 and is a member of the Russell Group of Universities. The university is consistently recognised as providing high quality research-based...

 Laboratory (GB) investigated the efficiency and reliability of high-brightness LEDs and demonstrated a very impressive result by using a transparent contact made of indium tin oxide
Indium tin oxide
Indium tin oxide is a solid solution of indium oxide and tin oxide , typically 90% In2O3, 10% SnO2 by weight. It is transparent and colorless in thin layers while in bulk form it is yellowish to grey...

 (ITO) on (AlGaInP/GaAs) LED. The existence of blue LEDs and high-efficiency LEDs quickly led to the development of the first white LED, which employed a :Ce, or "YAG", phosphor coating to mix yellow (down-converted) light with blue to produce light that appears white. Nakamura was awarded the 2006 Millennium Technology Prize
Millennium Technology Prize
The Millennium Technology Prize is the largest technology prize in the world. It is awarded once every two years by Technology Academy Finland, an independent fund established by Finnish industry and the Finnish state in partnership. The prize is presented by the President of Finland...

 for his invention.

The development of LED technology has caused their efficiency and light output to rise exponentially
Exponential growth
Exponential growth occurs when the growth rate of a mathematical function is proportional to the function's current value...

, with a doubling occurring about every 36 months since the 1960s, in a way similar to Moore's law
Moore's Law
Moore's law describes a long-term trend in the history of computing hardware: the number of transistors that can be placed inexpensively on an integrated circuit doubles approximately every two years....

. The advances are in general attributed to the parallel development of other semiconductor technologies and advances in optics and material science. This trend is called Haitz's Law
Haitz's Law
Haitz's Law is an observation/prediction about the steady improvement over the years of light-emitting diodes – LEDs.It states that every decade, the cost per lumen falls by a factor of 10, the amount of light generated per LED package increases by a factor of 20, for a given wavelength of light...

 after Dr. Roland Haitz.
In February 2008, a luminous efficacy
Luminous efficacy
Luminous efficacy is a measure of how well a light source produces visible light. It is the ratio of luminous flux to power. Depending on context, the power can be either the radiant flux of the source's output, or it can be the total electric power consumed by the source.Which sense of the term is...

 of 300 lumens
Lumen (unit)
The lumen is the SI derived unit of luminous flux, a measure of the total "amount" of visible light emitted by a source. Luminous flux differs from power in that luminous flux measurements reflect the varying sensitivity of the human eye to different wavelengths of light, while radiant flux...

 of visible light per watt of radiation
Radiant flux
In radiometry, radiant flux or radiant power is the measure of the total power of electromagnetic radiation...

 (not per electrical watt) and warm-light emission was achieved by using nanocrystal
Nanocrystal
B. D. Fahlman has described a nanocrystal as any nanomaterial with at least one dimension ≤ 100nm and that is singlecrystalline.-Summary:More properly, any material with a dimension of less than 1 micrometre, i.e., 1000 nanometers, should be referred to as a nanoparticle, not a nanocrystal...

s.

In 2009, a process for growing gallium nitride (GaN) LEDs on silicon has been reported. Epitaxy
Epitaxy
Epitaxy refers to the deposition of a crystalline overlayer on a crystalline substrate, where the overlayer is in registry with the substrate. In other words, there must be one or more preferred orientations of the overlayer with respect to the substrate for this to be termed epitaxial growth. The...

 costs could be reduced by up to 90% using six-inch silicon wafers instead of two-inch sapphire wafers.

Technology




Physics


The LED consists of a chip of semiconducting material doped
Doping (semiconductor)
In semiconductor production, doping intentionally introduces impurities into an extremely pure semiconductor for the purpose of modulating its electrical properties. The impurities are dependent upon the type of semiconductor. Lightly and moderately doped semiconductors are referred to as extrinsic...

 with impurities to create a p-n junction
P-n junction
A p–n junction is formed at the boundary between a P-type and N-type semiconductor created in a single crystal of semiconductor by doping, for example by ion implantation, diffusion of dopants, or by epitaxy .If two separate pieces of material were used, this would...

. As in other diodes, current flows easily from the p-side, or anode
Anode
An anode is an electrode through which electric current flows into a polarized electrical device. Mnemonic: ACID ....

, to the n-side, or cathode
Cathode
A cathode is an electrode through which electric current flows out of a polarized electrical device. Mnemonic: CCD .Cathode polarity is not always negative...

, but not in the reverse direction. Charge-carriers—electron
Electron
The electron is a subatomic particle with a negative elementary electric charge. It has no known components or substructure; in other words, it is generally thought to be an elementary particle. An electron has a mass that is approximately 1/1836 that of the proton...

s and holes
Electron hole
An electron hole is the conceptual and mathematical opposite of an electron, useful in the study of physics, chemistry, and electrical engineering. The concept describes the lack of an electron at a position where one could exist in an atom or atomic lattice...

—flow into the junction from electrode
Electrode
An electrode is an electrical conductor used to make contact with a nonmetallic part of a circuit...

s with different voltages. When an electron meets a hole, it falls into a lower energy level
Energy level
A quantum mechanical system or particle that is bound -- that is, confined spatially—can only take on certain discrete values of energy. This contrasts with classical particles, which can have any energy. These discrete values are called energy levels...

, and releases energy
Energy
In physics, energy is an indirectly observed quantity. It is often understood as the ability a physical system has to do work on other physical systems...

 in the form of a photon
Photon
In physics, a photon is an elementary particle, the quantum of the electromagnetic interaction and the basic unit of light and all other forms of electromagnetic radiation. It is also the force carrier for the electromagnetic force...

.

The wavelength
Wavelength
In physics, the wavelength of a sinusoidal wave is the spatial period of the wave—the distance over which the wave's shape repeats.It is usually determined by considering the distance between consecutive corresponding points of the same phase, such as crests, troughs, or zero crossings, and is a...

 of the light emitted, and thus its color depends on the band gap
Band gap
In solid state physics, a band gap, also called an energy gap or bandgap, is an energy range in a solid where no electron states can exist. In graphs of the electronic band structure of solids, the band gap generally refers to the energy difference between the top of the valence band and the...

 energy of the materials forming the p-n junction. In silicon
Silicon
Silicon is a chemical element with the symbol Si and atomic number 14. A tetravalent metalloid, it is less reactive than its chemical analog carbon, the nonmetal directly above it in the periodic table, but more reactive than germanium, the metalloid directly below it in the table...

 or germanium
Germanium
Germanium is a chemical element with the symbol Ge and atomic number 32. It is a lustrous, hard, grayish-white metalloid in the carbon group, chemically similar to its group neighbors tin and silicon. The isolated element is a semiconductor, with an appearance most similar to elemental silicon....

 diodes, the electrons and holes recombine by a non-radiative transition, which produces no optical emission, because these are indirect band gap materials. The materials used for the LED have a direct band gap with energies corresponding to near-infrared, visible, or near-ultraviolet light.

LED development began with infrared and red devices made with gallium arsenide. Advances in materials science
Materials science
Materials science is an interdisciplinary field applying the properties of matter to various areas of science and engineering. This scientific field investigates the relationship between the structure of materials at atomic or molecular scales and their macroscopic properties. It incorporates...

 have enabled making devices with ever-shorter wavelengths, emitting light in a variety of colors.

LEDs are usually built on an n-type substrate, with an electrode attached to the p-type layer deposited on its surface. P-type substrates, while less common, occur as well. Many commercial LEDs, especially GaN/InGaN, also use sapphire
Sapphire
Sapphire is a gemstone variety of the mineral corundum, an aluminium oxide , when it is a color other than red or dark pink; in which case the gem would instead be called a ruby, considered to be a different gemstone. Trace amounts of other elements such as iron, titanium, or chromium can give...

 substrate.

Most materials used for LED production have very high refractive indices
Refractive index
In optics the refractive index or index of refraction of a substance or medium is a measure of the speed of light in that medium. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium....

. This means that much light will be reflected back into the material at the material/air surface interface. Thus, light extraction in LEDs
Light extraction in LEDs
Light extraction in LEDs involves the set of particular problems that is connected with getting light from the light emitting p-n junction in an LED to the surroundings, such that the light might be useful, for instance for lighting....

 is an important aspect of LED production, subject to much research and development.

Refractive index


Bare uncoated semiconductors such as silicon
Silicon
Silicon is a chemical element with the symbol Si and atomic number 14. A tetravalent metalloid, it is less reactive than its chemical analog carbon, the nonmetal directly above it in the periodic table, but more reactive than germanium, the metalloid directly below it in the table...

 exhibit a very high refractive index
Refractive index
In optics the refractive index or index of refraction of a substance or medium is a measure of the speed of light in that medium. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium....

 relative to open air, which prevents passage of photons at sharp angles relative to the air-contacting surface of the semiconductor. This property affects both the light-emission efficiency of LEDs as well as the light-absorption efficiency of photovoltaic cells. The refractive index of silicon is 4.24, while air is 1.0002926

In general, a flat-surface uncoated LED semiconductor chip will emit light only perpendicular to the semiconductor's surface, and a few degrees to the side, in a cone shape referred to as the light cone, cone of light, or the escape cone. The maximum angle of incidence
Angle of incidence
Angle of incidence is a measure of deviation of something from "straight on", for example:* in the approach of a ray to a surface, or* the angle at which the wing or horizontal tail of an airplane is installed on the fuselage, measured relative to the axis of the fuselage.-Optics:In geometric...

 is referred to as the critical angle. When this angle is exceeded, photons no longer penetrate the semiconductor but are instead reflected both internally inside the semiconductor crystal and externally off the surface of the crystal as if it were a mirror
Mirror
A mirror is an object that reflects light or sound in a way that preserves much of its original quality prior to its contact with the mirror. Some mirrors also filter out some wavelengths, while preserving other wavelengths in the reflection...

.

Internal reflections can escape through other crystalline faces, if the incidence angle is low enough and the crystal is sufficiently transparent to not re-absorb the photon emission. But for a simple square LED with 90-degree angled surfaces on all sides, the faces all act as equal angle mirrors. In this case the light can not escape and is lost as waste heat in the crystal.

A convoluted chip surface with angled facet
Facet
Facets are flat faces on geometric shapes. The organization of naturally occurring facets was key to early developments in crystallography, since they reflect the underlying symmetry of the crystal structure...

s similar to a jewel or fresnel lens
Fresnel lens
A Fresnel lens is a type of lens originally developed by French physicist Augustin-Jean Fresnel for lighthouses.The design allows the construction of lenses of large aperture and short focal length without the mass and volume of material that would be required by a lens of conventional design...

 can increase light output by allowing light to be emitted perpendicular to the chip surface while far to the sides of the photon emission point.

The ideal shape of a semiconductor with maximum light output would be a microsphere
Microsphere
Microsphere are small spherical particles, with diameters in the micrometer range . Microspheres are sometimes referred to as microparticles....

 with the photon emission occurring at the exact center, with electrodes penetrating to the center to contact at the emission point. All light rays emanating from the center would be perpendicular to the entire surface of the sphere, resulting in no internal reflections. A hemispherical semiconductor would also work, with the flat back-surface serving as a mirror to back-scattered photons.

Transition coatings


Many LED semiconductor chips are potted
Potting (electronics)
In electronics, potting is a process of filling a complete electronic assembly with a solid or gelatinous compound for resistance to shock and vibration, and for exclusion of moisture and corrosive agents...

 in clear or colored molded plastic shells. The plastic shell has three purposes:
  1. Mounting the semiconductor chip in devices is easier to accomplish.
  2. The tiny fragile electrical wiring is physically supported and protected from damage.
  3. The plastic acts as a refractive intermediary between the relatively high-index semiconductor and low-index open air.

The third feature helps to boost the light emission from the semiconductor by acting as a diffusing lens, allowing light to be emitted at a much higher angle of incidence from the light cone than the bare chip is able to emit alone.

Efficiency and operational parameters


Typical indicator LEDs are designed to operate with no more than 30–60 milliwatts (mW) of electrical power. Around 1999, Philips Lumileds
Philips Lumileds Lighting Company
Philips Lumileds Lighting Company is the manufacturer of a wide range of high-power/high-efficiency light-emitting diodes . It is a now a fully owned division of Philips Lighting.-History:...

 introduced power LEDs capable of continuous use at one watt
Watt
The watt is a derived unit of power in the International System of Units , named after the Scottish engineer James Watt . The unit, defined as one joule per second, measures the rate of energy conversion.-Definition:...

. These LEDs used much larger semiconductor die sizes to handle the large power inputs. Also, the semiconductor dies were mounted onto metal slugs to allow for heat removal from the LED die.

One of the key advantages of LED-based lighting sources is high luminous efficacy
Luminous efficacy
Luminous efficacy is a measure of how well a light source produces visible light. It is the ratio of luminous flux to power. Depending on context, the power can be either the radiant flux of the source's output, or it can be the total electric power consumed by the source.Which sense of the term is...

. White LEDs quickly matched and overtook the efficacy of standard incandescent lighting systems. In 2002, Lumileds made five-watt LEDs available with a luminous efficacy
Luminous efficacy
Luminous efficacy is a measure of how well a light source produces visible light. It is the ratio of luminous flux to power. Depending on context, the power can be either the radiant flux of the source's output, or it can be the total electric power consumed by the source.Which sense of the term is...

 of 18–22 lumens per watt (lm/W). For comparison, a conventional incandescent light bulb
Incandescent light bulb
The incandescent light bulb, incandescent lamp or incandescent light globe makes light by heating a metal filament wire to a high temperature until it glows. The hot filament is protected from air by a glass bulb that is filled with inert gas or evacuated. In a halogen lamp, a chemical process...

 of 60–100 watts emits around 15 lm/W, and standard fluorescent lights emit up to 100 lm/W. A recurring problem is that efficacy falls sharply with rising current. This effect is known as droop and effectively limits the light output of a given LED, raising heating more than light output for higher current.

In September 2003, a new type of blue LED was demonstrated by the company Cree Inc.
Cree Inc.
Cree Inc. is a multinational manufacturer of semiconductor materials and devices, headquartered in Durham, North Carolina. Cree is noted for their improvements in light emitting diode technologies. Those improvements in lumens per watt suggest a time when LEDs will displace other lighting...

 to provide 24 mW at 20 milliamperes (mA). This produced a commercially packaged white light giving 65 lm/W at 20 mA, becoming the brightest white LED commercially available at the time, and more than four times as efficient as standard incandescents. In 2006, they demonstrated a prototype with a record white LED luminous efficacy of 131 lm/W at 20 mA. Nichia Corporation
Nichia Corporation
The is a Japanese chemical engineering and manufacturing company, headquartered in Tokushima, Japan with global subsidiaries, that specializes in the manufacturing and distribution of phosphors, including light-emitting diodes , laser diodes, battery materials, and calcium chloride...

 has developed a white LED with luminous efficacy of 150 lm/W at a forward current of 20 mA. Cree's XLamp XM-L LEDs, commercially available in 2011, produce 100 lumens per watt at their full power of 10 watts, and up to 160 lumens/watt at around 2 watts input power.

Practical general lighting needs high-power LEDs, of one watt or more. Typical operating currents for such devices begin at 350 mA.

Note that these efficiencies are for the LED chip only, held at low temperature in a lab. Lighting works at higher temperature and with drive circuit losses, so efficiencies are much lower. United States Department of Energy
United States Department of Energy
The United States Department of Energy is a Cabinet-level department of the United States government concerned with the United States' policies regarding energy and safety in handling nuclear material...

 (DOE) testing of commercial LED lamps designed to replace incandescent lamps or CFLs
Compact fluorescent lamp
A compact fluorescent lamp , also called compact fluorescent light, energy-saving light, and compact fluorescent tube, is a fluorescent lamp designed to replace an incandescent lamp; some types fit into light fixtures formerly used for incandescent lamps...

 showed that average efficacy was still about 46 lm/W in 2009 (tested performance ranged from 17 lm/W to 79 lm/W).

Cree issued a press release on February 3, 2010 about a laboratory prototype LED achieving 208 lumens per watt at room temperature. The correlated color temperature
Color temperature
Color temperature is a characteristic of visible light that has important applications in lighting, photography, videography, publishing, manufacturing, astrophysics, and other fields. The color temperature of a light source is the temperature of an ideal black-body radiator that radiates light of...

 was reported to be 4579 K.

Lifetime and failure



Solid state devices such as LEDs are subject to very limited wear and tear
Wear and tear
Wear and tear is damage that naturally and inevitably occurs as a result of normal wear or aging. It is used in a legal context for such areas as warranty contracts from manufacturers, which usually stipulate that damage due to wear and tear will not be covered.Wear and tear is a form of...

 if operated at low currents and at low temperatures. Many of the LEDs made in the 1970s and 1980s are still in service today. Typical lifetimes quoted are 25,000 to 100,000 hours, but heat and current settings can extend or shorten this time significantly.
The most common symptom of LED (and diode laser) failure is the gradual lowering of light output and loss of efficiency. Sudden failures, although rare, can occur as well. Early red LEDs were notable for their short lifetime. With the development of high-power LEDs the devices are subjected to higher junction temperature
Junction temperature
Junction temperature is the highest temperature of the actual semiconductor in an electronic device. In operation it is higher than case temperature and the temperature of the part's exterior...

s and higher current densities than traditional devices. This causes stress on the material and may cause early light-output degradation. To quantitatively classify lifetime in a standardized manner it has been suggested to use the terms L75 and L50, which is the time it will take a given LED to reach 75% and 50% light output respectively.

Like other lighting devices, LED performance is temperature dependent. Most manufacturers’ published ratings of LEDs are for an operating temperature of 25 °C. LEDs used outdoors, such as traffic signals or in-pavement signal lights, and that are utilized in climates where the temperature within the luminaire gets very hot, could result in low signal intensities or even failure.

LED light output actually rises at colder temperatures (leveling off depending on type at around −30C). As a consequence, LED technology may be a good replacement in uses such as supermarket freezer lighting and will last longer than other technologies. Because LEDs emit less heat than incandescent bulbs, they are an energy-efficient technology for uses such as freezers. However, because they emit little heat, ice and snow may build up on the LED luminaire in colder climates. This lack of waste heat generation has been observed to cause sometimes significant problems with street traffic signals and airport runway lighting in snow-prone areas, although some research has been done to try to develop heat sink technologies to transfer heat to other areas of the luminaire.

Colors and materials


Conventional LEDs are made from a variety of inorganic semiconductor materials
Semiconductor materials
Semiconductor materials are nominally small band gap insulators. The defining property of a semiconductor material is that it can be doped with impurities that alter its electronic properties in a controllable way...

, the following table shows the available colors with wavelength range, voltage drop and material:
Color Wavelength
Wavelength
In physics, the wavelength of a sinusoidal wave is the spatial period of the wave—the distance over which the wave's shape repeats.It is usually determined by considering the distance between consecutive corresponding points of the same phase, such as crests, troughs, or zero crossings, and is a...

 [nm]
Voltage [V] Semiconductor material
Infrared
Infrared
Infrared light is electromagnetic radiation with a wavelength longer than that of visible light, measured from the nominal edge of visible red light at 0.74 micrometres , and extending conventionally to 300 µm...


λ
Wavelength
In physics, the wavelength of a sinusoidal wave is the spatial period of the wave—the distance over which the wave's shape repeats.It is usually determined by considering the distance between consecutive corresponding points of the same phase, such as crests, troughs, or zero crossings, and is a...

 > 760
Δ
Delta (letter)
Delta is the fourth letter of the Greek alphabet. In the system of Greek numerals it has a value of 4. It was derived from the Phoenician letter Dalet...

V < 1.9
Gallium arsenide (GaAs)
Aluminium gallium arsenide
Aluminium gallium arsenide
Aluminium gallium arsenide is a semiconductor material with very nearly the same lattice constant as GaAs, but a larger bandgap. The x in the formula above is a number between 0 and 1 - this indicates an arbitrary alloy between GaAs and AlAs.The bandgap varies between 1.42 eV and 2.16 eV...

 (AlGaAs)
Red
Red
Red is any of a number of similar colors evoked by light consisting predominantly of the longest wavelengths of light discernible by the human eye, in the wavelength range of roughly 630–740 nm. Longer wavelengths than this are called infrared , and cannot be seen by the naked eye...


610 < λ < 760 1.63 < ΔV < 2.03 Aluminium gallium arsenide
Aluminium gallium arsenide
Aluminium gallium arsenide is a semiconductor material with very nearly the same lattice constant as GaAs, but a larger bandgap. The x in the formula above is a number between 0 and 1 - this indicates an arbitrary alloy between GaAs and AlAs.The bandgap varies between 1.42 eV and 2.16 eV...

 (AlGaAs)
Gallium arsenide phosphide
Gallium arsenide phosphide
Gallium arsenide phosphide is a semiconductor material, an alloy of gallium arsenide and gallium phosphide. It exists in various composition ratios indicated in its formula by the fraction x....

 (GaAsP)
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide is a semiconductor material.AlGaInP is used in manufacture of light-emitting diodes of high-brightness red, orange, green, and yellow color, to form the heterostructure emitting light...

 (AlGaInP)
Gallium(III) phosphide
Gallium(III) phosphide
Gallium phosphide , a phosphide of gallium, is a compound semiconductor material with an indirect band gap of 2.26 eV. The polycrystalline material has the appearance of pale orange pieces. Undoped single crystal wafers appear clear orange, but strongly doped wafers appear darker due to...

 (GaP)
Orange
Orange (colour)
The colour orange occurs between red and yellow in the visible spectrum at a wavelength of about 585–620 nm, and has a hue of 30° in HSV colour space. It is numerically halfway between red and yellow in a gamma-compressed RGB colour space, the expression of which is the RGB colour wheel. The...


590 < λ < 610 2.03 < ΔV < 2.10 Gallium arsenide phosphide
Gallium arsenide phosphide
Gallium arsenide phosphide is a semiconductor material, an alloy of gallium arsenide and gallium phosphide. It exists in various composition ratios indicated in its formula by the fraction x....

 (GaAsP)
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide is a semiconductor material.AlGaInP is used in manufacture of light-emitting diodes of high-brightness red, orange, green, and yellow color, to form the heterostructure emitting light...

 (AlGaInP)
Gallium(III) phosphide
Gallium(III) phosphide
Gallium phosphide , a phosphide of gallium, is a compound semiconductor material with an indirect band gap of 2.26 eV. The polycrystalline material has the appearance of pale orange pieces. Undoped single crystal wafers appear clear orange, but strongly doped wafers appear darker due to...

 (GaP)
Yellow
Yellow
Yellow is the color evoked by light that stimulates both the L and M cone cells of the retina about equally, with no significant stimulation of the S cone cells. Light with a wavelength of 570–590 nm is yellow, as is light with a suitable mixture of red and green...


570 < λ < 590 2.10 < ΔV < 2.18 Gallium arsenide phosphide
Gallium arsenide phosphide
Gallium arsenide phosphide is a semiconductor material, an alloy of gallium arsenide and gallium phosphide. It exists in various composition ratios indicated in its formula by the fraction x....

 (GaAsP)
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide is a semiconductor material.AlGaInP is used in manufacture of light-emitting diodes of high-brightness red, orange, green, and yellow color, to form the heterostructure emitting light...

 (AlGaInP)
Gallium(III) phosphide
Gallium(III) phosphide
Gallium phosphide , a phosphide of gallium, is a compound semiconductor material with an indirect band gap of 2.26 eV. The polycrystalline material has the appearance of pale orange pieces. Undoped single crystal wafers appear clear orange, but strongly doped wafers appear darker due to...

 (GaP)
Green
Green
Green is a color, the perception of which is evoked by light having a spectrum dominated by energy with a wavelength of roughly 520–570 nanometres. In the subtractive color system, it is not a primary color, but is created out of a mixture of yellow and blue, or yellow and cyan; it is considered...


500 < λ < 570 1.9 < ΔV < 4.0 Indium gallium nitride
Indium gallium nitride
Indium gallium nitride is a semiconductor material made of a mix of gallium nitride and indium nitride . It is a ternary group III/group V direct bandgap semiconductor. Its bandgap can be tuned by varying the amount of indium in the alloy...

 (InGaN) / Gallium(III) nitride
Gallium(III) nitride
Gallium nitride is a binary III/V direct bandgap semiconductor commonly used in bright light-emitting diodes since the 1990s. The compound is a very hard material that has a Wurtzite crystal structure. Its wide band gap of 3.4 eV affords it special properties for applications in optoelectronic,...

 (GaN)
Gallium(III) phosphide
Gallium(III) phosphide
Gallium phosphide , a phosphide of gallium, is a compound semiconductor material with an indirect band gap of 2.26 eV. The polycrystalline material has the appearance of pale orange pieces. Undoped single crystal wafers appear clear orange, but strongly doped wafers appear darker due to...

 (GaP)
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide
Aluminium gallium indium phosphide is a semiconductor material.AlGaInP is used in manufacture of light-emitting diodes of high-brightness red, orange, green, and yellow color, to form the heterostructure emitting light...

 (AlGaInP)
Aluminium gallium phosphide
Aluminium gallium phosphide
Aluminium gallium phosphide, P, a phosphide of aluminium and gallium, is a semiconductor material. It is an alloy of aluminium phosphide and gallium phosphide. It is used to manufacture light-emitting diodes emitting green light.-External links:*...

 (AlGaP)
Blue
Blue
Blue is a colour, the perception of which is evoked by light having a spectrum dominated by energy with a wavelength of roughly 440–490 nm. It is considered one of the additive primary colours. On the HSV Colour Wheel, the complement of blue is yellow; that is, a colour corresponding to an equal...


450 < λ < 500 2.48 < ΔV < 3.7 Zinc selenide
Zinc selenide
Zinc selenide , is a light yellow binary solid compound. It is an intrinsic semiconductor with a band gap of about 2.70 eV at 25 °C. ZnSe rarely occurs in nature...

 (ZnSe)
Indium gallium nitride
Indium gallium nitride
Indium gallium nitride is a semiconductor material made of a mix of gallium nitride and indium nitride . It is a ternary group III/group V direct bandgap semiconductor. Its bandgap can be tuned by varying the amount of indium in the alloy...

 (InGaN)
Silicon carbide
Silicon carbide
Silicon carbide , also known as carborundum, is a compound of silicon and carbon with chemical formula SiC. It occurs in nature as the extremely rare mineral moissanite. Silicon carbide powder has been mass-produced since 1893 for use as an abrasive...

 (SiC) as substrate
Silicon
Silicon
Silicon is a chemical element with the symbol Si and atomic number 14. A tetravalent metalloid, it is less reactive than its chemical analog carbon, the nonmetal directly above it in the periodic table, but more reactive than germanium, the metalloid directly below it in the table...

 (Si) as substrate – (under development)
Violet
Violet (color)
As the name of a color, violet is synonymous with a bluish purple, when the word "purple" is used in the common English language sense of any color between blue and red, not including either blue or red...


400 < λ < 450 2.76 < ΔV < 4.0 Indium gallium nitride
Indium gallium nitride
Indium gallium nitride is a semiconductor material made of a mix of gallium nitride and indium nitride . It is a ternary group III/group V direct bandgap semiconductor. Its bandgap can be tuned by varying the amount of indium in the alloy...

 (InGaN)
Purple
Purple
Purple is a range of hues of color occurring between red and blue, and is classified as a secondary color as the colors are required to create the shade....


multiple types 2.48 < ΔV < 3.7 Dual blue/red LEDs,
blue with red phosphor,
or white with purple plastic
Ultraviolet
Ultraviolet
Ultraviolet light is electromagnetic radiation with a wavelength shorter than that of visible light, but longer than X-rays, in the range 10 nm to 400 nm, and energies from 3 eV to 124 eV...


λ < 400 3.1 < ΔV < 4.4 Diamond
Diamond
In mineralogy, diamond is an allotrope of carbon, where the carbon atoms are arranged in a variation of the face-centered cubic crystal structure called a diamond lattice. Diamond is less stable than graphite, but the conversion rate from diamond to graphite is negligible at ambient conditions...

 (235 nm)
Boron nitride
Boron nitride
Boron nitride is a chemical compound with chemical formula BN, consisting of equal numbers of boron and nitrogen atoms. BN is isoelectronic to a similarly structured carbon lattice and thus exists in various crystalline forms...

 (215 nm)
Aluminium nitride
Aluminium nitride
Aluminium nitride is a nitride of aluminium. Its wurtzite phase is a wide band gap semiconductor material, giving it potential application for deep ultraviolet optoelectronics.-History:...

 (AlN) (210 nm)
Aluminium gallium nitride
Aluminium gallium nitride
Aluminium gallium nitride is a semiconductor material. It is an alloy of aluminium nitride and gallium nitride.AlGaN is used to manufacture light-emitting diodes operating in blue to ultraviolet region, where wavelengths down to 250 nm were achieved. It is also used in blue semiconductor...

 (AlGaN)
Aluminium gallium indium nitride (AlGaInN) – (down to 210 nm)

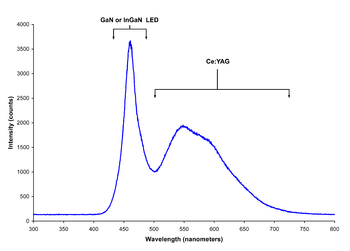

White Broad spectrum ΔV = 3.5 Blue/UV diode with yellow phosphor

Ultraviolet and blue LEDs


Current bright blue LEDs are based on the wide band gap
Band gap
In solid state physics, a band gap, also called an energy gap or bandgap, is an energy range in a solid where no electron states can exist. In graphs of the electronic band structure of solids, the band gap generally refers to the energy difference between the top of the valence band and the...

 semiconductors GaN (gallium nitride) and InGaN
Indium gallium nitride
Indium gallium nitride is a semiconductor material made of a mix of gallium nitride and indium nitride . It is a ternary group III/group V direct bandgap semiconductor. Its bandgap can be tuned by varying the amount of indium in the alloy...

 (indium gallium nitride). They can be added to existing red and green LEDs to produce the impression of white light, though white LEDs today rarely use this principle.

The first blue LEDs using gallium nitride were made in 1971 by Jacques Pankove at RCA Laboratories
RCA
RCA Corporation, founded as the Radio Corporation of America, was an American electronics company in existence from 1919 to 1986. The RCA trademark is currently owned by the French conglomerate Technicolor SA through RCA Trademark Management S.A., a company owned by Technicolor...

. These devices had too little light output to be of practical use and research into gallium nitride devices slowed. In August 1989, Cree Inc. introduced the first commercially available blue LED based on the indirect bandgap semiconductor, silicon carbide. SiC LEDs had very low effiency, no more than about 0.03%, but did emit in the blue portion of the visible light spectrum.

In the late 1980s, key breakthroughs in GaN epitaxial growth and p-type
P-type semiconductor
A P-type semiconductor is obtained by carrying out a process of doping: that is, adding a certain type of atoms to the semiconductor in order to increase the number of free charge carriers ....

 doping ushered in the modern era of GaN-based optoelectronic devices. Building upon this foundation, in 1993 high-brightness blue LEDs were demonstrated. Efficiency (light energy produced vs. electrical energy used) reached 10%.
High-brightness blue LEDs invented by Shuji Nakamura
Shuji Nakamura
is a professor at the Materials Department of the College of Engineering, University of California, Santa Barbara .- Career :Nakamura graduated from the University of Tokushima in 1977 with a degree in electronic engineering, and obtained a master's degree in the same subject two years later, after...

 of Nichia Corporation
Nichia Corporation
The is a Japanese chemical engineering and manufacturing company, headquartered in Tokushima, Japan with global subsidiaries, that specializes in the manufacturing and distribution of phosphors, including light-emitting diodes , laser diodes, battery materials, and calcium chloride...

 using gallium nitride revolutionized LED lighting, making high-power light sources practical.

By the late 1990s, blue LEDs had become widely available. They have an active region consisting of one or more InGaN quantum well
Quantum well
A quantum well is a potential well with only discrete energy values.One technology to create quantization is to confine particles, which were originally free to move in three dimensions, to two dimensions, forcing them to occupy a planar region...

s sandwiched between thicker layers of GaN, called cladding layers. By varying the relative InN-GaN fraction in the InGaN quantum wells, the light emission can be varied from violet to amber. AlGaN aluminium gallium nitride
Aluminium gallium nitride
Aluminium gallium nitride is a semiconductor material. It is an alloy of aluminium nitride and gallium nitride.AlGaN is used to manufacture light-emitting diodes operating in blue to ultraviolet region, where wavelengths down to 250 nm were achieved. It is also used in blue semiconductor...

 of varying AlN fraction can be used to manufacture the cladding and quantum well layers for ultraviolet LEDs, but these devices have not yet reached the level of efficiency and technological maturity of the InGaN-GaN blue/green devices. If the active quantum well layers are GaN, instead of alloyed InGaN or AlGaN, the device will emit near-ultraviolet light with wavelengths around 350–370 nm. Green LEDs manufactured from the InGaN-GaN system are far more efficient and brighter than green LEDs produced with non-nitride material systems.

With nitrides containing aluminium, most often AlGaN
Aluminium gallium nitride
Aluminium gallium nitride is a semiconductor material. It is an alloy of aluminium nitride and gallium nitride.AlGaN is used to manufacture light-emitting diodes operating in blue to ultraviolet region, where wavelengths down to 250 nm were achieved. It is also used in blue semiconductor...

 and AlGaInN, even shorter wavelengths are achievable. Ultraviolet LEDs in a range of wavelengths are becoming available on the market. Near-UV emitters at wavelengths around 375–395 nm are already cheap and often encountered, for example, as black light
Black light
A black light, also referred to as a UV light, ultraviolet light, or Wood's lamp, is a lamp that emits ultraviolet radiation in the long-wave range, and little visible light...

 lamp replacements for inspection of anti-counterfeiting UV watermarks in some documents and paper currencies. Shorter-wavelength diodes, while substantially more expensive, are commercially available for wavelengths down to 247 nm. As the photosensitivity of microorganisms approximately matches the absorption spectrum of DNA
DNA
Deoxyribonucleic acid is a nucleic acid that contains the genetic instructions used in the development and functioning of all known living organisms . The DNA segments that carry this genetic information are called genes, but other DNA sequences have structural purposes, or are involved in...

, with a peak at about 260 nm, UV LED emitting at 250–270 nm are to be expected in prospective disinfection and sterilization devices. Recent research has shown that commercially available UVA LEDs (365 nm) are already effective disinfection and sterilization devices.

Deep-UV wavelengths were obtained in laboratories using aluminium nitride
Aluminium nitride
Aluminium nitride is a nitride of aluminium. Its wurtzite phase is a wide band gap semiconductor material, giving it potential application for deep ultraviolet optoelectronics.-History:...

 (210 nm), boron nitride
Boron nitride
Boron nitride is a chemical compound with chemical formula BN, consisting of equal numbers of boron and nitrogen atoms. BN is isoelectronic to a similarly structured carbon lattice and thus exists in various crystalline forms...

 (215 nm) and diamond
Diamond
In mineralogy, diamond is an allotrope of carbon, where the carbon atoms are arranged in a variation of the face-centered cubic crystal structure called a diamond lattice. Diamond is less stable than graphite, but the conversion rate from diamond to graphite is negligible at ambient conditions...

 (235 nm).

White light


There are two primary ways of producing high-intensity white-light using LEDs. One is to use individual LEDs that emit three primary color
Primary color
Primary colors are sets of colors that can be combined to make a useful range of colors. For human applications, three primary colors are usually used, since human color vision is trichromatic....

s—red, green, and blue—and then mix all the colors to form white light. The other is to use a phosphor material to convert monochromatic light from a blue or UV LED to broad-spectrum white light, much in the same way a fluorescent light bulb works.

Due to metamerism
Metamerism (color)
In colorimetry, metamerism is the matching of apparent color of objects with different spectral power distributions. Colors that match this way are called metamers....

, it is possible to have quite different spectra that appear white.

RGB systems


White light can be formed by mixing differently colored lights; the most common method is to use red, green, and blue (RGB). Hence the method is called multi-color white LEDs (sometimes referred to as Red Green Blue LEDs). Because these need electronic circuits to control the blending and diffusion
Diffusion
Molecular diffusion, often called simply diffusion, is the thermal motion of all particles at temperatures above absolute zero. The rate of this movement is a function of temperature, viscosity of the fluid and the size of the particles...

 of different colors, these are seldom used to produce white lighting. Nevertheless, this method is particularly interesting in many uses because of the flexibility of mixing different colors, and, in principle, this mechanism also has higher quantum efficiency in producing white light.

There are several types of multi-color white LEDs: di-, tri-, and tetrachromatic white LEDs. Several key factors that play among these different methods, include color stability, color rendering capability, and luminous efficacy
Luminous efficacy
Luminous efficacy is a measure of how well a light source produces visible light. It is the ratio of luminous flux to power. Depending on context, the power can be either the radiant flux of the source's output, or it can be the total electric power consumed by the source.Which sense of the term is...

. Often, higher efficiency will mean lower color rendering, presenting a trade-off between the luminous efficiency and color rendering. For example, the dichromatic white LEDs have the best luminous efficacy (120 lm/W), but the lowest color rendering capability. However, although tetrachromatic white LEDs have excellent color rendering capability, they often have poor luminous efficiency. Trichromatic white LEDs are in between, having both good luminous efficacy (>70 lm/W) and fair color rendering capability.

Multi-color LEDs offer not merely another means to form white light but a new means to form light of different colors. Most perceivable colors can be formed by mixing different amounts of three primary colors. This allows precise dynamic color control. As more effort is devoted to investigating this method, multi-color LEDs should have profound influence on the fundamental method that we use to produce and control light color. However, before this type of LED can play a role on the market, several technical problems need solving. These include that this type of LED's emission power decays exponentially with rising temperature,
resulting in a substantial change in color stability. Such problems inhibit and may preclude industrial use. Thus, many new package designs aimed at solving this problem have been proposed and their results are now being reproduced by researchers and scientists.

Phosphor-based LEDs


This method involves coating
Coating
Coating is a covering that is applied to the surface of an object, usually referred to as the substrate. In many cases coatings are applied to improve surface properties of the substrate, such as appearance, adhesion, wetability, corrosion resistance, wear resistance, and scratch resistance...

 LEDs of one color (mostly blue LEDs made of InGaN) with phosphor
Phosphor
A phosphor, most generally, is a substance that exhibits the phenomenon of luminescence. Somewhat confusingly, this includes both phosphorescent materials, which show a slow decay in brightness , and fluorescent materials, where the emission decay takes place over tens of nanoseconds...

 of different colors to form white light; the resultant LEDs are called phosphor-based white LEDs. A fraction of the blue light undergoes the Stokes shift
Stokes shift
Stokes shift is the difference between positions of the band maxima of the absorption and emission spectra of the same electronic transition. It is named after Irish physicist George G. Stokes. When a system absorbs a photon, it gains energy and enters an excited state...

 being transformed from shorter wavelengths to longer. Depending on the color of the original LED, phosphors of different colors can be employed. If several phosphor layers of distinct colors are applied, the emitted spectrum is broadened, effectively raising the color rendering index (CRI) value of a given LED.

Phosphor-based LEDs have a lower efficiency than normal LEDs due to the heat loss from the Stokes shift and also other phosphor-related degradation issues. However, the phosphor method is still the most popular method for making high-intensity white LEDs. The design and production of a light source or light fixture using a monochrome emitter with phosphor conversion is simpler and cheaper than a complex RGB system, and the majority of high-intensity white LEDs presently on the market are manufactured using phosphor light conversion.

The greatest barrier to high efficiency is the seemingly unavoidable Stokes energy loss. However, much effort is being spent on optimizing these devices to higher light output and higher operation temperatures. For instance, the efficiency can be raised by adapting better package design or by using a more suitable type of phosphor. Philips Lumileds' patented conformal coating process addresses the issue of varying phosphor thickness, giving the white LEDs a more homogeneous white light. With development ongoing, the efficiency of phosphor-based LEDs in general rises with each new product announcement.

The phosphor-based white LEDs encapsulate InGaN blue LEDs inside phosphor coated epoxy. A common yellow phosphor material is cerium
Cerium
Cerium is a chemical element with the symbol Ce and atomic number 58. It is a soft, silvery, ductile metal which easily oxidizes in air. Cerium was named after the dwarf planet . Cerium is the most abundant of the rare earth elements, making up about 0.0046% of the Earth's crust by weight...

-doped yttrium aluminium garnet
Yttrium aluminium garnet
Yttrium aluminium garnet is a synthetic crystalline material of the garnet group. It is also one of three phases of the yttria-aluminium composite, the other two being yttrium aluminium monoclinic and yttrium aluminium perovskite . YAG is commonly used as a host material in various solid-state...

 (Ce3+:YAG).

White LEDs can also be made by coating
Coating
Coating is a covering that is applied to the surface of an object, usually referred to as the substrate. In many cases coatings are applied to improve surface properties of the substrate, such as appearance, adhesion, wetability, corrosion resistance, wear resistance, and scratch resistance...

 near-ultraviolet
Ultraviolet
Ultraviolet light is electromagnetic radiation with a wavelength shorter than that of visible light, but longer than X-rays, in the range 10 nm to 400 nm, and energies from 3 eV to 124 eV...

 (NUV) LEDs with a mixture of high-efficiency europium
Europium
Europium is a chemical element with the symbol Eu and atomic number 63. It is named after the continent of Europe. It is a moderately hard silvery metal which readily oxidizes in air and water...

-based phosphors that emit red and blue, plus copper and aluminium-doped zinc sulfide (ZnS:Cu, Al) that emits green. This is a method analogous to the way fluorescent lamp
Fluorescent lamp
A fluorescent lamp or fluorescent tube is a gas-discharge lamp that uses electricity to excite mercury vapor. The excited mercury atoms produce short-wave ultraviolet light that then causes a phosphor to fluoresce, producing visible light. A fluorescent lamp converts electrical power into useful...

s work. This method is less efficient than blue LEDs with YAG:Ce phosphor, as the Stokes shift
Stokes shift
Stokes shift is the difference between positions of the band maxima of the absorption and emission spectra of the same electronic transition. It is named after Irish physicist George G. Stokes. When a system absorbs a photon, it gains energy and enters an excited state...

 is larger, so more energy is converted to heat, but yields light with better spectral characteristics, which render color better. Due to the higher radiative output of the ultraviolet LEDs than of the blue ones, both methods offer comparable brightness. A concern is that UV light may leak from a malfunctioning light source and cause harm to human eyes or skin.

Other white LEDs


Another method used to produce experimental white light LEDs used no phosphors at all and was based on homoepitaxially
Epitaxy
Epitaxy refers to the deposition of a crystalline overlayer on a crystalline substrate, where the overlayer is in registry with the substrate. In other words, there must be one or more preferred orientations of the overlayer with respect to the substrate for this to be termed epitaxial growth. The...

 grown zinc selenide
Zinc selenide
Zinc selenide , is a light yellow binary solid compound. It is an intrinsic semiconductor with a band gap of about 2.70 eV at 25 °C. ZnSe rarely occurs in nature...

 (ZnSe) on a ZnSe substrate that simultaneously emitted blue light from its active region and yellow light from the substrate.

Organic light-emitting diodes (OLEDs)


In an organic light-emitting diode (OLED
Organic light-emitting diode
An OLED is a light-emitting diode in which the emissive electroluminescent layer is a film of organic compounds which emit light in response to an electric current. This layer of organic semiconductor material is situated between two electrodes...

), the electroluminescent
Electroluminescence
Electroluminescence is an optical phenomenon and electrical phenomenon in which a material emits light in response to the passage of an electric current or to a strong electric field...

 material comprising the emissive layer of the diode is an organic compound
Organic compound
An organic compound is any member of a large class of gaseous, liquid, or solid chemical compounds whose molecules contain carbon. For historical reasons discussed below, a few types of carbon-containing compounds such as carbides, carbonates, simple oxides of carbon, and cyanides, as well as the...

. The organic material is electrically conductive due to the delocalization
Delocalized electron
In chemistry, delocalized electrons are electrons in a molecule, ion or solid metal that are not associated with a single atom or one covalent bond....

 of pi electrons caused by conjugation
Conjugated system
In chemistry, a conjugated system is a system of connected p-orbitals with delocalized electrons in compounds with alternating single and multiple bonds, which in general may lower the overall energy of the molecule and increase stability. Lone pairs, radicals or carbenium ions may be part of the...

 over all or part of the molecule, and the material therefore functions as an organic semiconductor
Organic semiconductor
An organic semiconductor is an organic material with semiconductor properties. Single molecules, short chain and organic polymers can be semiconductive. Semiconducting small molecules include the polycyclic aromatic compounds pentacene, anthracene, and rubrene...

.
The organic materials can be small organic molecule
Molecule
A molecule is an electrically neutral group of at least two atoms held together by covalent chemical bonds. Molecules are distinguished from ions by their electrical charge...

s in a crystal
Crystal
A crystal or crystalline solid is a solid material whose constituent atoms, molecules, or ions are arranged in an orderly repeating pattern extending in all three spatial dimensions. The scientific study of crystals and crystal formation is known as crystallography...

line phase
Phase (matter)
In the physical sciences, a phase is a region of space , throughout which all physical properties of a material are essentially uniform. Examples of physical properties include density, index of refraction, and chemical composition...

, or polymer
Polymer
A polymer is a large molecule composed of repeating structural units. These subunits are typically connected by covalent chemical bonds...

s.

The potential advantages of OLEDs include thin, low-cost displays with a low driving voltage, wide viewing angle, and high contrast and color gamut. Polymer LEDs have the added benefit of printable and flexible
Flexible organic light-emitting diode
A flexible organic light emitting diode is a type of organic light-emitting diode incorporating a flexible plastic substrate on which the electroluminescent organic semiconductor is deposited. This enables the device to be bent or rolled while still operating...

 displays. OLEDs have been used to make visual displays for portable electronic devices such as cellphones, digital cameras, and MP3 players while possible future uses include lighting and televisions.

Quantum dot LEDs (experimental)


Quantum dots (QD) are semiconductor nanocrystals that possess unique optical properties. Their emission color can be tuned from the visible throughout the infrared spectrum. This allows quantum dot LEDs to create almost any color on the CIE
International Commission on Illumination
The International Commission on Illumination is the international authority on light, illumination, color, and color spaces...

 diagram. This provides more color options and better color rendering than white LEDs. Quantum dot LEDs are available in the same package types as traditional phosphor
Phosphor
A phosphor, most generally, is a substance that exhibits the phenomenon of luminescence. Somewhat confusingly, this includes both phosphorescent materials, which show a slow decay in brightness , and fluorescent materials, where the emission decay takes place over tens of nanoseconds...

-based LEDs. One example of this is a method developed by Michael Bowers, at Vanderbilt University
Vanderbilt University
Vanderbilt University is a private research university located in Nashville, Tennessee, United States. Founded in 1873, the university is named for shipping and rail magnate "Commodore" Cornelius Vanderbilt, who provided Vanderbilt its initial $1 million endowment despite having never been to the...

 in Nashville, involving coating a blue LED with quantum dot
Quantum dot
A quantum dot is a portion of matter whose excitons are confined in all three spatial dimensions. Consequently, such materials have electronic properties intermediate between those of bulk semiconductors and those of discrete molecules. They were discovered at the beginning of the 1980s by Alexei...

s that glow white in response to the blue light from the LED. This method emits a warm, yellowish-white light similar to that made by incandescent bulbs. Quantum dots are also being considered for use in white light-emitting diodes in liquid crystal display (LCD) televisions.

The major difficulty in using quantum dots-based LEDs is the insufficient stability of QDs under prolonged irradiation. In February 2011 scientists at PlasmaChem GmbH could synthesize quantum dots for LED applications and build a light converter on their basis, which could efficiently convert light from blue to any other color for many hundred hours. Such QDs can be used to emit visible or near infrared light of any wavelength being excited by light with a shorter wavelength.

Types



The main types of LEDs are miniature, high power devices and custom designs such as alphanumeric or multi-color.

Miniature



These are mostly single-die LEDs used as indicators, and they come in various sizes from 2 mm to 8 mm, through-hole and surface mount packages. They usually do not use a separate heat sink
Heat sink
A heat sink is a term for a component or assembly that transfers heat generated within a solid material to a fluid medium, such as air or a liquid. Examples of heat sinks are the heat exchangers used in refrigeration and air conditioning systems and the radiator in a car...

. Typical current ratings ranges from around 1 mA to above 20 mA. The small size sets a natural upper boundary on power consumption due to heat caused by the high current density and need for heat sink
Heat sink
A heat sink is a term for a component or assembly that transfers heat generated within a solid material to a fluid medium, such as air or a liquid. Examples of heat sinks are the heat exchangers used in refrigeration and air conditioning systems and the radiator in a car...

ing.
Common package shapes include round, with a domed or flat top, rectangular with a flat top (as used in bar-graph displays), and triangular or square with a flat top.
The encapsulation may also be clear or tinted to improve contrast and viewing angle.

There are three main categories of miniature single die LEDs:
  • Low-current — typically rated for 2 mA at around 2 V (approximately 4 mW consumption).
  • Standard — 20 mA LEDs at around 2 V (approximately 40 mW) for red, orange, yellow, and green, and 20 mA at 4–5 V (approximately 100 mW) for blue, violet, and white.
  • Ultra-high-output — 20 mA at approximately 2 V or 4–5 V, designed for viewing in direct sunlight.


Five- and twelve-volt LEDs are ordinary miniature LEDs that incorporate a suitable series resistor
Resistor
A linear resistor is a linear, passive two-terminal electrical component that implements electrical resistance as a circuit element.The current through a resistor is in direct proportion to the voltage across the resistor's terminals. Thus, the ratio of the voltage applied across a resistor's...

 for direct connection to a 5 V or 12 V supply.

Mid-range


Medium-power LEDs are often through-hole-mounted and used when an output of a few lumen is needed. They sometimes have the diode mounted to four leads (two cathode leads, two anode leads) for better heat conduction and carry an integrated lens. An example of this is the Superflux package, from Philips Lumileds. These LEDs are most commonly used in light panels, emergency lighting, and automotive tail-lights. Due to the larger amount of metal in the LED, they are able to handle higher currents (around 100 mA). The higher current allows for the higher light output required for tail-lights and emergency lighting.

High-power



High-power LEDs (HPLED) can be driven at currents from hundreds of mA to more than an ampere, compared with the tens of mA for other LEDs. Some can emit over a thousand lumens. Since overheating is destructive, the HPLEDs must be mounted on a heat sink to allow for heat dissipation. If the heat from a HPLED is not removed, the device will fail in seconds. One HPLED can often replace an incandescent bulb in a torch
Flashlight
A flashlight is a hand-held electric-powered light source. Usually the light source is a small incandescent lightbulb or light-emitting diode...

, or be set in an array to form a powerful LED lamp
LED lamp
An LED lamp is a solid-state lamp that uses light-emitting diodes as the source of light. The LEDs involved may be conventional semiconductor light-emitting diodes, organic LEDs , or polymer light-emitting diodes devices, although PLED technologies are not currently commercially available.Since...

.

Some well-known HPLEDs in this category are the Lumileds Rebel Led, Osram Opto Semiconductors Golden Dragon, and Cree X-lamp. As of September 2009, some HPLEDs manufactured by Cree Inc.
Cree Inc.
Cree Inc. is a multinational manufacturer of semiconductor materials and devices, headquartered in Durham, North Carolina. Cree is noted for their improvements in light emitting diode technologies. Those improvements in lumens per watt suggest a time when LEDs will displace other lighting...

 now exceed 105 lm/W
(e.g. the XLamp XP-G LED chip emitting Cool White light) and are being sold in lamps intended to replace incandescent, halogen, and even fluorescent lights, as LEDs grow more cost competitive.

LEDs have been developed by Seoul Semiconductor that can operate on AC power without the need for a DC converter. For each half-cycle, part of the LED emits light and part is dark, and this is reversed during the next half-cycle. The efficacy of this type of HPLED is typically 40 lm/W. A large number of LED elements in series may be able to operate directly from line voltage. In 2009, Seoul Semiconductor released a high DC voltage capable of being driven from AC power with a simple controlling circuit. The low-power dissipation of these LEDs affords them more flexibility than the original AC LED design.

Application-specific variations

  • Flashing LEDs are used as attention seeking indicators without requiring external electronics. Flashing LEDs resemble standard LEDs but they contain an integrated multivibrator
    Multivibrator
    A multivibrator is an electronic circuit used to implement a variety of simple two-state systems such as oscillators, timers and flip-flops. It is characterized by two amplifying devices cross-coupled by resistors or capacitors...

     circuit that causes the LED to flash with a typical period of one second. In diffused lens LEDs this is visible as a small black dot. Most flashing LEDs emit light of one color, but more sophisticated devices can flash between multiple colors and even fade through a color sequence using RGB color mixing.


  • Bi-color LEDs are two different LEDs in one case. They consist of two dies connected to the same two leads antiparallel
    Antiparallel (electronics)
    In electronics, two anti-parallel or inverse-parallel devices are connected in parallel but with their polarities reversed.One example is the TRIAC, which is comparable to two thyristors connected back-to-back , but on a single piece of silicon.Two LEDs can be paired this way, so that each protects...

     to each other. Current flow in one direction emits one color, and current in the opposite direction emits the other color. Alternating the two colors with sufficient frequency causes the appearance of a blended third color. For example, a red/green LED operated in this fashion will color-blend to emit a yellow appearance.

  • Tri-color LEDs are two LEDs in one case, but the two LEDs are connected to separate leads so that the two LEDs can be controlled independently and lit simultaneously. A three-lead arrangement is typical with one common lead (anode or cathode).

  • RGB LEDs contain red, green, and blue emitters, in general using a four-wire connection with one common lead (anode or cathode). These LEDs can have either common positive or common negative leads. Others however, have only two leads (positive and negative) and have a built in tiny electronic control unit
    Electronic control unit
    In automotive electronics, electronic control unit is a generic term for any embedded system that controls one or more of the electrical systems or subsystems in a motor vehicle....

    .

  • Alphanumeric LED displays are available in seven-segment
    Seven-segment display
    A seven-segment display , or seven-segment indicator, is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot-matrix displays...

     and starburst format. Seven-segment displays handle all numbers and a limited set of letters. Starburst displays can display all letters. Seven-segment LED displays were in widespread use in the 1970s and 1980s, but rising use of liquid crystal display
    Liquid crystal display
    A liquid crystal display is a flat panel display, electronic visual display, or video display that uses the light modulating properties of liquid crystals . LCs do not emit light directly....

    s, with their lower power needs and greater display flexibility, has reduced the popularity of numeric and alphanumeric LED displays.

Power sources



The current/voltage characteristic of an LED is similar to other diodes, in that the current is dependent exponentially on the voltage (see Shockley diode equation). This means that a small change in voltage can cause a large change in current. If the maximum voltage rating is exceeded by a small amount, the current rating may be exceeded by a large amount, potentially damaging or destroying the LED. The typical solution is to use constant-current
Constant current
Constant current is a term most often used in electronics to describe a system that can vary the voltage across an electronic circuit to maintain a constant electric current....

 power supplies, or driving the LED at a voltage much below the maximum rating. Since most common power sources (batteries, mains) are not constant-current sources, most LED fixtures must include a power converter. However, the I/V curve of nitride-based LEDs is quite steep above the knee and gives an If of a few milliamperes at a Vf of 3 V, making it possible to power a nitride-based LED from a 3 V battery such as a coin cell without the need for a current-limiting resistor.

Electrical polarity



As with all diodes, current flows easily from p-type to n-type material.
However, no current flows and no light is emitted if a small voltage is applied in the reverse direction. If the reverse voltage grows large enough to exceed the breakdown voltage
Breakdown voltage
The breakdown voltage of an insulator is the minimum voltage that causes a portion of an insulator to become electrically conductive.The breakdown voltage of a diode is the minimum reverse voltage to make the diode conduct in reverse...

, a large current flows and the LED may be damaged. If the reverse current is sufficiently limited to avoid damage, the reverse-conducting LED is a useful noise diode.

Safety and health


The vast majority of devices containing LEDs are "safe under all conditions of normal use", and so are classified as "Class 1 LED product"/"LED Klasse 1".
At present, only a few LEDs—extremely bright LEDs that also have a tightly focused viewing angle of 8° or less—could, in theory, cause temporary blindness, and so are classified as "Class 2".
In general, laser safety
Laser safety
Laser safety is safe design, use and implementation of lasers to minimize the risk of laser accidents, especially those involving eye injuries. Since even relatively small amounts of laser light can lead to permanent eye injuries, the sale and usage of lasers is typically subject to government...

 regulations—and the "Class 1", "Class 2", etc. system—also apply to LEDs.

While LEDs have the advantage over fluorescent lamp
Fluorescent lamp
A fluorescent lamp or fluorescent tube is a gas-discharge lamp that uses electricity to excite mercury vapor. The excited mercury atoms produce short-wave ultraviolet light that then causes a phosphor to fluoresce, producing visible light. A fluorescent lamp converts electrical power into useful...

s that they do not contain mercury
Mercury (element)
Mercury is a chemical element with the symbol Hg and atomic number 80. It is also known as quicksilver or hydrargyrum...

, they may contain other hazardous metals such as lead
Lead
Lead is a main-group element in the carbon group with the symbol Pb and atomic number 82. Lead is a soft, malleable poor metal. It is also counted as one of the heavy metals. Metallic lead has a bluish-white color after being freshly cut, but it soon tarnishes to a dull grayish color when exposed...

 and arsenic
Arsenic
Arsenic is a chemical element with the symbol As, atomic number 33 and relative atomic mass 74.92. Arsenic occurs in many minerals, usually in conjunction with sulfur and metals, and also as a pure elemental crystal. It was first documented by Albertus Magnus in 1250.Arsenic is a metalloid...

. A study published in 2011 states: "According to federal standards, LEDs are not hazardous except for low-intensity red LEDs, which leached Pb [lead] at levels exceeding regulatory limits (186 mg/L; regulatory limit: 5). However, according to California regulations, excessive levels of copper (up to 3892 mg/kg; limit: 2500), Pb (up to 8103 mg/kg; limit: 1000), nickel
Nickel
Nickel is a chemical element with the chemical symbol Ni and atomic number 28. It is a silvery-white lustrous metal with a slight golden tinge. Nickel belongs to the transition metals and is hard and ductile...

 (up to 4797 mg/kg; limit: 2000), or silver
Silver
Silver is a metallic chemical element with the chemical symbol Ag and atomic number 47. A soft, white, lustrous transition metal, it has the highest electrical conductivity of any element and the highest thermal conductivity of any metal...

 (up to 721 mg/kg; limit: 500) render all except low-intensity yellow LEDs hazardous.".

Advantages

  • Efficiency: LEDs emit more light per watt than incandescent light bulb
    Incandescent light bulb
    The incandescent light bulb, incandescent lamp or incandescent light globe makes light by heating a metal filament wire to a high temperature until it glows. The hot filament is protected from air by a glass bulb that is filled with inert gas or evacuated. In a halogen lamp, a chemical process...

    s. Their efficiency is not affected by shape and size, unlike fluorescent light bulbs or tubes.
  • Color: LEDs can emit light of an intended color without using any color filters as traditional lighting methods need. This is more efficient and can lower initial costs.
  • Size: LEDs can be very small (smaller than 2 mm2) and are easily populated onto printed circuit boards.
  • On/Off time: LEDs light up very quickly. A typical red indicator LED will achieve full brightness in under a microsecond
    Microsecond
    A microsecond is an SI unit of time equal to one millionth of a second. Its symbol is µs.A microsecond is equal to 1000 nanoseconds or 1/1000 millisecond...

    . LEDs used in communications devices can have even faster response times.
  • Cycling: LEDs are ideal for uses subject to frequent on-off cycling, unlike fluorescent lamps that fail faster when cycled often, or HID lamps that require a long time before restarting.
  • Dimming: LEDs can very easily be dimmed
    Dimmer
    Dimmers are devices used to vary the brightness of a light. By decreasing or increasing the RMS voltage and, hence, the mean power to the lamp, it is possible to vary the intensity of the light output...

     either by pulse-width modulation
    Pulse-width modulation
    Pulse-width modulation , or pulse-duration modulation , is a commonly used technique for controlling power to inertial electrical devices, made practical by modern electronic power switches....

     or lowering the forward current.
  • Cool light: In contrast to most light sources, LEDs radiate very little heat in the form of IR
    Infrared
    Infrared light is electromagnetic radiation with a wavelength longer than that of visible light, measured from the nominal edge of visible red light at 0.74 micrometres , and extending conventionally to 300 µm...

     that can cause damage to sensitive objects or fabrics. Wasted energy is dispersed as heat through the base of the LED.
  • Slow failure: LEDs mostly fail by dimming over time, rather than the abrupt failure of incandescent bulbs.
  • Lifetime: LEDs can have a relatively long useful life. One report estimates 35,000 to 50,000 hours of useful life, though time to complete failure may be longer. Fluorescent tubes typically are rated at about 10,000 to 15,000 hours, depending partly on the conditions of use, and incandescent light bulbs at 1,000–2,000 hours.
  • Shock resistance: LEDs, being solid state components, are difficult to damage with external shock, unlike fluorescent and incandescent bulbs, which are fragile.
  • Focus: The solid package of the LED can be designed to focus its light. Incandescent and fluorescent sources often require an external reflector to collect light and direct it in a usable manner.

Disadvantages

  • High initial price: LEDs are currently more expensive, price per lumen, on an initial capital cost basis, than most conventional lighting technologies. As of 2010, the cost per thousand lumens (kilolumen) was about $18. The price is expected to reach $2/kilolumen by 2015. The additional expense partially stems from the relatively low lumen output and the drive circuitry and power supplies needed.
  • Temperature dependence: LED performance largely depends on the ambient temperature of the operating environment. Over-driving an LED in high ambient temperatures may result in overheating the LED package, eventually leading to device failure. Adequate heat sink
    Heat sink
    A heat sink is a term for a component or assembly that transfers heat generated within a solid material to a fluid medium, such as air or a liquid. Examples of heat sinks are the heat exchangers used in refrigeration and air conditioning systems and the radiator in a car...

    ing is needed to maintain long life. This is especially important in automotive, medical, and military uses where devices must operate over a wide range of temperatures, and need low failure rates.
  • Voltage sensitivity: LEDs must be supplied with the voltage above the threshold and a current below the rating. This can involve series resistors or current-regulated power supplies.
  • Light quality: Most cool-white LEDs have spectra that differ significantly from a black body
    Black body
    A black body is an idealized physical body that absorbs all incident electromagnetic radiation. Because of this perfect absorptivity at all wavelengths, a black body is also the best possible emitter of thermal radiation, which it radiates incandescently in a characteristic, continuous spectrum...

     radiator like the sun or an incandescent light. The spike at 460 nm and dip at 500 nm can cause the color of objects to be perceived differently
    Color vision
    Color vision is the capacity of an organism or machine to distinguish objects based on the wavelengths of the light they reflect, emit, or transmit...

     under cool-white LED illumination than sunlight or incandescent sources, due to metamerism
    Metamerism (color)
    In colorimetry, metamerism is the matching of apparent color of objects with different spectral power distributions. Colors that match this way are called metamers....

    , red surfaces being rendered particularly badly by typical phosphor-based cool-white LEDs. However, the color rendering properties of common fluorescent lamps are often inferior to what is now available in state-of-art white LEDs.
  • Area light source: LEDs do not approximate a “point source” of light, but rather a lambertian
    Lambert's cosine law
    In optics, Lambert's cosine law says that the radiant intensity observed from a Lambertian surface or a Lambertian radiator is directly proportional to the cosine of the angle θ between the observer's line of sight and the surface normal. A Lambertian surface is also known as an ideal diffusely...

     distribution. So LEDs are difficult to apply to uses needing a spherical light field. LEDs cannot provide divergence below a few degrees. In contrast, lasers can emit beams with divergences of 0.2 degrees or less.
  • Electrical Polarity
    Electrical polarity
    Electrical polarity is present in every electrical circuit. Electrons flow from the negative pole to the positive pole. In a direct current circuit, one pole is always negative, the other pole is always positive and the electrons flow in one direction only...

    :
    Unlike incandescent light bulbs, which illuminate regardless of the electrical polarity
    Electrical polarity
    Electrical polarity is present in every electrical circuit. Electrons flow from the negative pole to the positive pole. In a direct current circuit, one pole is always negative, the other pole is always positive and the electrons flow in one direction only...

    , LEDs will only light with correct electrical polarity.
  • Blue hazard: There is a concern that blue LEDs and cool-white LEDs are now capable of exceeding safe limits of the so-called blue-light hazard as defined in eye safety specifications such as ANSI/IESNA RP-27.1–05: Recommended Practice for Photobiological Safety for Lamp and Lamp Systems.
  • Blue pollution: Because cool-white LEDs (i.e., LEDs with high color temperature
    Color temperature
    Color temperature is a characteristic of visible light that has important applications in lighting, photography, videography, publishing, manufacturing, astrophysics, and other fields. The color temperature of a light source is the temperature of an ideal black-body radiator that radiates light of...

    ) emit proportionally more blue light than conventional outdoor light sources such as high-pressure sodium vapor lamp
    Sodium vapor lamp
    A sodium vapor lamp is a gas discharge lamp that uses sodium in an excited state to produce light. There are two varieties of such lamps: low pressure and high pressure...

    s, the strong wavelength dependence of Rayleigh scattering
    Rayleigh scattering
    Rayleigh scattering, named after the British physicist Lord Rayleigh, is the elastic scattering of light or other electromagnetic radiation by particles much smaller than the wavelength of the light. The particles may be individual atoms or molecules. It can occur when light travels through...

     means that cool-white LEDs can cause more light pollution
    Light pollution
    Light pollution, also known as photopollution or luminous pollution, is excessive or obtrusive artificial light.The International Dark-Sky Association defines light pollution as:...

     than other light sources. The International Dark-Sky Association
    International Dark-Sky Association
    The International Dark-Sky Association is a U.S.-based non-profit organization incorporated in 1988 by founders Dr. David Crawford, a professional astronomer, and Dr. Timothy Hunter, a medical doctor/amateur astronomer...

     discourages using white light sources with correlated color temperature above 3,000 K.
  • Droop: The efficiency
    Efficient energy use
    Efficient energy use, sometimes simply called energy efficiency, is the goal of efforts to reduce the amount of energy required to provide products and services. For example, insulating a home allows a building to use less heating and cooling energy to achieve and maintain a comfortable temperature...

     of LEDs tends to decrease as one increases current.

Applications








In general, all the LED products can be divided into two major parts, the public lighting and indoor lighting.LED uses fall into four major categories:
  • Visual signals where light goes more or less directly from the source to the human eye, to convey a message or meaning.
  • Illumination
    Lighting
    Lighting or illumination is the deliberate application of light to achieve some practical or aesthetic effect. Lighting includes the use of both artificial light sources such as lamps and light fixtures, as well as natural illumination by capturing daylight...

     where light is reflected from objects to give visual response of these objects.
  • Measuring and interacting with processes involving no human vision.
  • Narrow band light sensors where LEDs operate in a reverse-bias mode and respond to incident light, instead of emitting light.


For more than 70 years, until the LED, practically all lighting was incandescent and fluorescent with the first fluorescent light only being commercially available after the 1939 World's Fair.

Indicators and signs


The low energy consumption
Energy conservation
Energy conservation refers to efforts made to reduce energy consumption. Energy conservation can be achieved through increased efficient energy use, in conjunction with decreased energy consumption and/or reduced consumption from conventional energy sources...

, low maintenance and small size of modern LEDs has led to uses as status indicators and displays on a variety of equipment and installations. Large-area LED display
LED display
An LED display is a flat panel display, which uses light-emitting diodes as a video display. An LED panel is a small display, or a component of a larger display. They are typically used outdoors in store signs and billboards, and in recent years have also become commonly used in destination signs...

s are used as stadium displays and as dynamic decorative displays. Thin, lightweight message displays are used at airports and railway stations, and as destination display
Destination sign
A destination sign or destination indicator is a sign mounted on the front or side of a public transport vehicle, such as a bus, tram/streetcar or light rail vehicle, that displays the vehicle's route number and destination, or the route's number and name on transit systems using route names...

s for trains, buses, trams, and ferries.

One-color light is well suited for traffic light
Traffic light
Traffic lights, which may also be known as stoplights, traffic lamps, traffic signals, signal lights, robots or semaphore, are signalling devices positioned at road intersections, pedestrian crossings and other locations to control competing flows of traffic...

s and signals, exit sign
Exit sign
An exit sign is a device in a public facility denoting the location of the emergency exit , guiding people to the closest exit in case of fire or other emergency. Most relevant codes require exit signs to be permanently lit...

s, emergency vehicle lighting, ships' navigation lights or lantern
Lantern
A lantern is a portable lighting device or mounted light fixture used to illuminate broad areas. Lanterns may also be used for signaling, as 'torches', or as general light sources outdoors . Low light level varieties are used for decoration. The term "lantern" is also used more generically to...

s (chromacity and luminance standards being set under the Convention on the International Regulations for Preventing Collisions at Sea 1972, Annex I and the CIE) and LED-based Christmas lights. In cold climates, LED traffic lights may remain snow covered. Red or yellow LEDs are used in indicator and alphanumeric displays in environments where night vision must be retained: aircraft cockpits, submarine and ship bridges, astronomy observatories, and in the field, e.g. night time animal watching and military field use.

Because of their long life and fast switching times, LEDs have been used in brake lights for cars high-mounted brake lights, trucks, and buses, and in turn signals for some time, but many vehicles now use LEDs for their rear light clusters. The use in brakes improves safety, due to a great reduction in the time needed to light fully, or faster rise time, up to 0.5 second faster than an incandescent bulb. This gives drivers behind more time to react. It is reported that at normal highway speeds, this equals one car length equivalent in increased time to react. In a dual intensity circuit (i.e., rear markers and brakes) if the LEDs are not pulsed at a fast enough frequency, they can create a phantom array, where ghost images of the LED will appear if the eyes quickly scan across the array. White LED headlamps are starting to be used. Using LEDs has styling advantages because LEDs can form much thinner lights than incandescent lamps with parabolic reflector
Parabolic reflector
A parabolic reflector is a reflective device used to collect or project energy such as light, sound, or radio waves. Its shape is that of a circular paraboloid, that is, the surface generated by a parabola revolving around its axis...

s.

Due to the relative cheapness of low output LEDs, they are also used in many temporary uses such as glowsticks, throwies, and the photonic textile
Textile
A textile or cloth is a flexible woven material consisting of a network of natural or artificial fibres often referred to as thread or yarn. Yarn is produced by spinning raw fibres of wool, flax, cotton, or other material to produce long strands...

 Lumalive
Lumalive
Philips Lumalive based in Eindhoven, the Netherlands, is a business venture that specializes in textile-based LED solutions.Building on early application research in garments and soft furnishings, Lumalive is now focused on applying its unique solution in architecture and interior design,...

. Artists have also used LEDs for LED art
LED art
LED Art is form of light art constructed from light-emitting diodes. Many artists that use LEDs are guerilla artists, incorporating LEDs to produce temporary pieces in public places. LEDs are very inexpensive to purchase and have become a new way to make street art...

.

Weather/all-hazards radio
Weatheradio
A weather radio service is a broadcast service that airs weather reports. When the radio is on and tuned to the weather band, it airs both normal and emergency weather information...

 receivers with Specific Area Message Encoding
Specific Area Message Encoding
Specific Area Message Encoding or SAME is the protocol used to encode the Emergency Alert System and NOAA Weather Radio's SAME Public Warning System in the U.S...

 (SAME) have three LEDs: red for warnings, orange for watches, and yellow for advisories & statements whenever issued.

Lighting



With the development of high-efficiency and high-power LEDs, it has become possible to use LEDs in lighting and illumination. Replacement light bulbs have been made, as well as dedicated fixtures and LED lamp
LED lamp
An LED lamp is a solid-state lamp that uses light-emitting diodes as the source of light. The LEDs involved may be conventional semiconductor light-emitting diodes, organic LEDs , or polymer light-emitting diodes devices, although PLED technologies are not currently commercially available.Since...

s. LEDs are used as street light
Street light
A street light, lamppost, street lamp, light standard, or lamp standard is a raised source of light on the edge of a road or walkway, which is turned on or lit at a certain time every night. Modern lamps may also have light-sensitive photocells to turn them on at dusk, off at dawn, or activate...

s and in other architectural lighting
Architectural lighting design
Architectural lighting design is a field within architecture and architectural engineering that concerns itself primarily with the illumination of buildings. The objective of architectural lighting design is to obtain sufficient light for the purposes of the building, balancing factors of initial...

 where color changing is used. The mechanical robustness and long lifetime is used in automotive lighting
Automotive lighting
The lighting system of a motor vehicle consists of lighting and signalling devices mounted or integrated to the front, sides, rear, and in some cases the top of the motor vehicle...

 on cars, motorcycles, and bicycle lights.

LED street light
LED street light
The LED street light is an integrated light-emitting diode light fixture that is used for street lighting. LED street lights can reduce the cost of keeping streets well-lit when dark.-Design and style:...

s are employed on poles and in parking garages. In 2007, the Italian village Torraca
Torraca
Torraca is a town and comune in the province of Salerno in the Campania region of south-western Italy.-The LED city:In 2007, the town spent 280,000 euro to convert all its 700 street lamps to LED technology - a first in Europe - and thereby reduced its energy and maintenance costs by 70%. Because...

 was the first place to convert its entire illumination system to LEDs.

LEDs are used in aviation lighting. Airbus
Airbus
Airbus SAS is an aircraft manufacturing subsidiary of EADS, a European aerospace company. Based in Blagnac, France, surburb of Toulouse, and with significant activity across Europe, the company produces around half of the world's jet airliners....

 has used LED lighting in their Airbus A320 Enhanced since 2007, and Boeing plans its use in the 787. LEDs are also being used now in airport and heliport lighting. LED airport fixtures currently include medium-intensity runway lights, runway centerline lights, taxiway centerline and edge lights, guidance signs, and obstruction lighting.

LEDs are also suitable for backlight
Backlight
A backlight is a form of illumination used in liquid crystal displays . As LCDs do not produce light themselves , they need illumination to produce a visible image...

ing for LCD
Liquid crystal display
A liquid crystal display is a flat panel display, electronic visual display, or video display that uses the light modulating properties of liquid crystals . LCs do not emit light directly....

 televisions and lightweight laptop
Laptop
A laptop, also called a notebook, is a personal computer for mobile use. A laptop integrates most of the typical components of a desktop computer, including a display, a keyboard, a pointing device and speakers into a single unit...

 displays and light source for DLP projectors (See LED TV). RGB LEDs raise the color gamut
Gamut
In color reproduction, including computer graphics and photography, the gamut, or color gamut , is a certain complete subset of colors. The most common usage refers to the subset of colors which can be accurately represented in a given circumstance, such as within a given color space or by a...

 by as much as 45%. Screens for TV and computer displays can be made thinner using LEDs for backlighting.

LEDs are used increasingly in aquarium lights. In particular for reef aquariums, LED lights provide an efficient light source with less heat output to help maintain optimal aquarium temperatures. LED-based aquarium fixtures also have the advantage of being manually adjustable to emit a specific color-spectrum for ideal coloration of corals, fish, and invertebrates while optimizing photosynthetically active radiation (PAR), which raises growth and sustainability of photosynthetic life such as corals, anemones, clams, and macroalgae. These fixtures can be electronically programmed to simulate various lighting conditions throughout the day, reflecting phases of the sun and moon for a dynamic reef experience. LED fixtures typically cost up to five times as much as similarly rated fluorescent or high-intensity discharge lighting designed for reef aquariums and are not as high output to date.

The lack of IR or heat radiation makes LEDs ideal for stage lights using banks of RGB LEDs that can easily change color and decrease heating from traditional stage lighting, as well as medical lighting where IR-radiation can be harmful. In energy conservation, LEDs lower heat output also means air conditioning (cooling) systems have less heat to dispose of, reducing carbon dioxide emissions.

LEDs are small, durable and need little power, so they are used in hand held devices such as flashlight
Flashlight
A flashlight is a hand-held electric-powered light source. Usually the light source is a small incandescent lightbulb or light-emitting diode...

s. LED strobe light
Strobe light
A strobe light or stroboscopic lamp, commonly called a strobe, is a device used to produce regular flashes of light. It is one of a number of devices that can be used as a stroboscope...

s or camera flashes operate at a safe, low voltage, instead of the 250+ volts commonly found in xenon
Xenon
Xenon is a chemical element with the symbol Xe and atomic number 54. The element name is pronounced or . A colorless, heavy, odorless noble gas, xenon occurs in the Earth's atmosphere in trace amounts...

 flashlamp-based lighting. This is especially useful in cameras on mobile phone
Mobile phone
A mobile phone is a device which can make and receive telephone calls over a radio link whilst moving around a wide geographic area. It does so by connecting to a cellular network provided by a mobile network operator...

s, where space is at a premium and bulky voltage-raising circuitry is undesirable.

LEDs are used for infrared illumination in night vision
Night vision
Night vision is the ability to see in low light conditions. Whether by biological or technological means, night vision is made possible by a combination of two approaches: sufficient spectral range, and sufficient intensity range...

 uses including security cameras. A ring of LEDs around a video camera
Video camera
A video camera is a camera used for electronic motion picture acquisition, initially developed by the television industry but now common in other applications as well. The earliest video cameras were those of John Logie Baird, based on the electromechanical Nipkow disk and used by the BBC in...

, aimed forward into a retroreflective background
Projection screen
A projection screen is an installation consisting of a surface and a support structure used for displaying a projected image for the view of an audience. Projection screens may be permanently installed, as in a movie theater; painted on the wall; or semi-permanent or mobile, as in a conference room...

, allows chroma keying in video production
Video production
Video production is videography, the process of capturing moving images on electronic media even streaming media. The term includes methods of production and post-production...

s.

LEDs are now used commonly in all market areas from commercial to home use: standard lighting, AV, stage, theatrical, architectural, and public installations, and wherever artificial light is used.

In many countries, incandescent lighting for homes and offices is no longer available, and building regulations insist on new premises being fitted out at day one with LED fixtures and fittings.

LEDs are increasingly finding uses in medical and educational applications, for example as mood enhancement, and new technologies such as AmBX
AmBX
AmBX is an internationally patent protected technology for controlling incandescent and white/coloured LED lighting and other enabled devices...

, exploiting LED versatility. NASA
NASA
The National Aeronautics and Space Administration is the agency of the United States government that is responsible for the nation's civilian space program and for aeronautics and aerospace research...

 has even sponsored research for the use of LEDs to promote health for astronauts.

Smart lighting


Light can be used to transmit broadband
Broadband
The term broadband refers to a telecommunications signal or device of greater bandwidth, in some sense, than another standard or usual signal or device . Different criteria for "broad" have been applied in different contexts and at different times...

 data, which is already implemented in IrDA
IRDA
IRDA may refer to:* Infrared Data Association, in information and communications technology , a standard for communication between devices over short distances using infrared signals...

 standards using infrared LEDs. Because LEDs can cycle on and off
Frequency
Frequency is the number of occurrences of a repeating event per unit time. It is also referred to as temporal frequency.The period is the duration of one cycle in a repeating event, so the period is the reciprocal of the frequency...

 millions of times per second, they can be wireless
Wireless
Wireless telecommunications is the transfer of information between two or more points that are not physically connected. Distances can be short, such as a few meters for television remote control, or as far as thousands or even millions of kilometers for deep-space radio communications...

 transmitters and access points
Wireless access point
In computer networking, a wireless access point is a device that allows wireless devices to connect to a wired network using Wi-Fi, Bluetooth or related standards...

 for data
Data
The term data refers to qualitative or quantitative attributes of a variable or set of variables. Data are typically the results of measurements and can be the basis of graphs, images, or observations of a set of variables. Data are often viewed as the lowest level of abstraction from which...

 transport. Laser
Laser
A laser is a device that emits light through a process of optical amplification based on the stimulated emission of photons. The term "laser" originated as an acronym for Light Amplification by Stimulated Emission of Radiation...

s can also be modulated
Modulation
In electronics and telecommunications, modulation is the process of varying one or more properties of a high-frequency periodic waveform, called the carrier signal, with a modulating signal which typically contains information to be transmitted...

 in this manner.

Sustainable lighting


Efficient lighting is needed for sustainable architecture
Sustainable architecture
Sustainable architecture is a general term that describes environmentally conscious design techniques in the field of architecture. Sustainable architecture is framed by the larger discussion of sustainability and the pressing economic and political issues of our world...

. In 2009, a typical 13-watt LED lamp emitted 450 to 650 lumens.
which is equivalent to a standard 40-watt incandescent bulb. In 2011, LEDs have become more efficient, so that a 6-watt LED can easily achieve the same results.
A standard 40-watt incandescent bulb has an expected lifespan of 1,000 hours, whereas an LED can continue to operate with reduced efficiency for more than 50,000 hours, 50 times longer than the incandescent bulb.

Energy consumption


One kilowatt-hour of electricity will cause 1.34 pounds (607.8 g) of emission. Assuming the average light bulb is on for 10 hours a day, one 40-watt incandescent bulb will cause 196 pounds (88.9 kg) of emission per year. The 6-watt LED equivalent will only cause 30 pounds (13.6 kg) of over the same time span. A building’s carbon footprint from lighting can be reduced by 85% by exchanging all incandescent bulbs for new LEDs.

Economically sustainable


LED light bulbs could be a cost-effective option for lighting a home or office space because of their very long lifetimes. Consumer use of LEDs as a replacement for conventional lighting system is currently hampered by the high cost and low efficiency of available products. 2009 DOE testing results showed an average efficacy of 35 lm/W, below that of typical CFLs
Compact fluorescent lamp
A compact fluorescent lamp , also called compact fluorescent light, energy-saving light, and compact fluorescent tube, is a fluorescent lamp designed to replace an incandescent lamp; some types fit into light fixtures formerly used for incandescent lamps...

, and as low as 9 lm/W, worse than standard incandescents. However, as of 2011, there are LED bulbs available as efficient as 150 lm/W and even inexpensive low-end models typically exceed 50 lm/W. The high initial cost of the commercial LED bulb is due to the expensive sapphire
Sapphire
Sapphire is a gemstone variety of the mineral corundum, an aluminium oxide , when it is a color other than red or dark pink; in which case the gem would instead be called a ruby, considered to be a different gemstone. Trace amounts of other elements such as iron, titanium, or chromium can give...

 substrate, which is key to the production process. The sapphire apparatus must be coupled with a mirror-like collector to reflect light that would otherwise be wasted.

Other applications



The light from LEDs can be modulated very quickly so they are used extensively in optical fiber
Optical fiber
An optical fiber is a flexible, transparent fiber made of a pure glass not much wider than a human hair. It functions as a waveguide, or "light pipe", to transmit light between the two ends of the fiber. The field of applied science and engineering concerned with the design and application of...

 and Free Space Optics communications. This include remote control
Remote control
A remote control is a component of an electronics device, most commonly a television set, used for operating the television device wirelessly from a short line-of-sight distance.The remote control is usually contracted to remote...

s, such as for TVs, VCRs, and LED Computers, where infrared LEDs are often used. Opto-isolator
Opto-isolator
In electronics, an opto-isolator, also called an optocoupler, photocoupler, or optical isolator, is "an electronic device designed to transfer electrical signals by utilizing light waves to provide coupling with electrical isolation between its input and output"...

s use an LED combined with a photodiode
Photodiode
A photodiode is a type of photodetector capable of converting light into either current or voltage, depending upon the mode of operation.The common, traditional solar cell used to generateelectric solar power is a large area photodiode....

 or phototransistor to provide a signal path with electrical isolation between two circuits. This is especially useful in medical equipment where the signals from a low-voltage sensor
Sensor
A sensor is a device that measures a physical quantity and converts it into a signal which can be read by an observer or by an instrument. For example, a mercury-in-glass thermometer converts the measured temperature into expansion and contraction of a liquid which can be read on a calibrated...

 circuit (usually battery-powered) in contact with a living organism must be electrically isolated from any possible electrical failure in a recording or monitoring device operating at potentially dangerous voltages. An optoisolator also allows information to be transferred between circuits not sharing a common ground potential.

Many sensor systems rely on light as the signal source. LEDs are often ideal as a light source due to the requirements of the sensors. LEDs are used as movement sensors, for example in optical computer mice
Optical mouse
An optical computer mouse or "optic mouse" uses a light-emitting diode and photodiodes to detect movement relative to a surface, unlike a mechanical mouse which has a ball which rotates orthogonal shafts which drive chopper wheels for distance measurement.- Early optical mice :Early optical mice,...

. The Nintendo Wii
Wii
The Wii is a home video game console released by Nintendo on November 19, 2006. As a seventh-generation console, the Wii primarily competes with Microsoft's Xbox 360 and Sony's PlayStation 3. Nintendo states that its console targets a broader demographic than that of the two others...

's sensor bar uses infrared LEDs. Pulse oximeter
Pulse oximeter
A pulse oximeter is a medical device that indirectly monitors the oxygen saturation of a patient's blood and changes in blood volume in the skin, producing a photoplethysmograph. It is often attached to a medical monitor so staff can see a patient's oxygenation at all times...

s use them for measuring oxygen saturation
Oxygen saturation
Oxygen saturation or dissolved oxygen is a relative measure of the amount of oxygen that is dissolved or carried in a given medium. It can be measured with a dissolved oxygen probe such as an oxygen sensor or an optode in liquid media, usually water.It has particular significance in medicine and...

. Some flatbed scanners use arrays of RGB LEDs rather than the typical cold-cathode fluorescent lamp as the light source. Having independent control of three illuminated colors allows the scanner to calibrate itself for more accurate color balance, and there is no need for warm-up. Further, its sensors only need be monochromatic, since at any one time the page being scanned is only lit by one color of light. Touch sensing
Touchscreen
A touchscreen is an electronic visual display that can detect the presence and location of a touch within the display area. The term generally refers to touching the display of the device with a finger or hand. Touchscreens can also sense other passive objects, such as a stylus...

: Since LEDs can also be used as photodiode
Photodiode
A photodiode is a type of photodetector capable of converting light into either current or voltage, depending upon the mode of operation.The common, traditional solar cell used to generateelectric solar power is a large area photodiode....

s, they can be used for both photo emission and detection. This could be used in for example a touch-sensing screen that register reflected light from a finger or stylus
Stylus
A stylus is a writing utensil, or a small tool for some other form of marking or shaping, for example in pottery. The word is also used for a computer accessory . It usually refers to a narrow elongated staff, similar to a modern ballpoint pen. Many styli are heavily curved to be held more easily...

.

Many materials and biological systems are sensitive to or dependent on light. Grow lights use LEDs to increase photosynthesis
Photosynthesis
Photosynthesis is a chemical process that converts carbon dioxide into organic compounds, especially sugars, using the energy from sunlight. Photosynthesis occurs in plants, algae, and many species of bacteria, but not in archaea. Photosynthetic organisms are called photoautotrophs, since they can...

 in plant
Plant
Plants are living organisms belonging to the kingdom Plantae. Precise definitions of the kingdom vary, but as the term is used here, plants include familiar organisms such as trees, flowers, herbs, bushes, grasses, vines, ferns, mosses, and green algae. The group is also called green plants or...

s and bacteria and viruses can be removed from water and other substances using UV
Ultraviolet
Ultraviolet light is electromagnetic radiation with a wavelength shorter than that of visible light, but longer than X-rays, in the range 10 nm to 400 nm, and energies from 3 eV to 124 eV...

 LEDs for sterilization
Sterilization (microbiology)
Sterilization is a term referring to any process that eliminates or kills all forms of microbial life, including transmissible agents present on a surface, contained in a fluid, in medication, or in a compound such as biological culture media...

. Other uses are as UV curing devices for some ink and coating methods, and in LED printer
LED printer
An LED printer is a type of computer printer. LED technology uses a light-emitting diode array as a light source in the printhead. The LED bar pulse-flashes across the entire page width and creates the image on the print drum or belt as it moves past....

s.

Plant growers are interested in LEDs because they are more energy-efficient, emit less heat (can damage plants close to hot lamps), and can provide the optimum light frequency for plant growth and bloom periods compared to currently used grow lights: HPS
Sodium vapor lamp
A sodium vapor lamp is a gas discharge lamp that uses sodium in an excited state to produce light. There are two varieties of such lamps: low pressure and high pressure...

 (high-pressure sodium), MH
Metal halide lamp
Metal-halide lamps, a member of the high-intensity discharge family of lamps, produce high light output for their size, making them a compact, powerful, and efficient light source. By adding rare earth metal salts to the mercury vapor lamp, improved luminous efficacy and light color is obtained...

 (metal halide) or CFL
Compact fluorescent lamp
A compact fluorescent lamp , also called compact fluorescent light, energy-saving light, and compact fluorescent tube, is a fluorescent lamp designed to replace an incandescent lamp; some types fit into light fixtures formerly used for incandescent lamps...

/low-energy. However, LEDs have not replaced these grow lights due to higher price. As mass production and LED kits develop, the LED products will become cheaper.

LEDs have also been used as a medium-quality voltage reference
Voltage reference
A voltage reference is an electronic device that produces a fixed voltage irrespective of the loading on the device, power supply variations, temperature changes, and the passage of time. Voltage references are used in power supply voltage regulators, analog-to-digital converters and...

 in electronic circuits. The forward voltage drop (e.g., about 1.7 V for a normal red LED) can be used instead of a Zener diode
Zener diode
A Zener diode is a special kind of diode which allows current to flow in the forward direction in the same manner as an ideal diode, but will also permit it to flow in the reverse direction when the voltage is above a certain value known as the breakdown voltage, "Zener knee voltage" or "Zener...

 in low-voltage regulators. Red LEDs have the flattest I/V curve above the knee. Nitride-based LEDs have a fairly steep I/V curve and are useless for this purpose. Although LED forward voltage is far more current-dependent than a good Zener, Zener diodes are not widely available below voltages of about 3 V.

Light sources for machine vision systems


Machine vision
Machine vision
Machine vision is the process of applying a range of technologies and methods to provide imaging-based automatic inspection, process control and robot guidance in industrial applications. While the scope of MV is broad and a comprehensive definition is difficult to distil, a "generally accepted...

 systems often require bright and homogeneous illumination, so features of interest are easier to process.
LEDs are often used for this purpose, and this is likely to remain one of their major uses until price drops low enough to make signaling and illumination uses more widespread. Barcode scanners are the most common example of machine vision, and many low cost ones use red LEDs instead of lasers. Optical computer mice are also another example of LEDs in machine vision, as it is used to provide an even light source on the surface for the miniature camera within the mouse. LEDs constitute a nearly ideal light source for machine vision
Machine vision
Machine vision is the process of applying a range of technologies and methods to provide imaging-based automatic inspection, process control and robot guidance in industrial applications. While the scope of MV is broad and a comprehensive definition is difficult to distil, a "generally accepted...

 systems for several reasons:

The size of the illuminated field is usually comparatively small and machine vision systems are often quite expensive, so the cost of the light source is usually a minor concern. However, it might not be easy to replace a broken light source placed within complex machinery, and here the long service life of LEDs is a benefit.

LED elements tend to be small and can be placed with high density over flat or even-shaped substrates (PCBs etc.) so that bright and homogeneous sources that direct light from tightly controlled directions on inspected parts can be designed. This can often be obtained with small, low-cost lenses and diffusers, helping to achieve high light densities with control over lighting levels and homogeneity. LED sources can be shaped in several configurations (spot lights for reflective illumination; ring lights for coaxial illumination; back lights for contour illumination; linear assemblies; flat, large format panels; dome sources for diffused, omnidirectional illumination).

LEDs can be easily strobed (in the microsecond range and below) and synchronized with imaging. High-power LEDs are available allowing well-lit images even with very short light pulses. This is often used to obtain crisp and sharp “still” images of quickly moving parts.

LEDs come in several different colors and wavelengths, allowing easy use of the best color for each need, where different color may provide better visibility of features of interest. Having a precisely known spectrum allows tightly matched filters to be used to separate informative bandwidth or to reduce disturbing effects of ambient light. LEDs usually operate at comparatively low working temperatures, simplifying heat management and dissipation. This allows using plastic lenses, filters, and diffusers. Waterproof units can also easily be designed, allowing use in harsh or wet environments (food, beverage, oil industries).

See also


  • Display examples
    Display examples
    Over the years, a variety of display devices and technologies have been used in order to display electronic data in a way that's legible to humans.-Early history:...

  • Laser diode
    Laser diode
    The laser diode is a laser where the active medium is a semiconductor similar to that found in a light-emitting diode. The most common type of laser diode is formed from a p-n junction and powered by injected electric current...

  • LED circuit
    LED circuit
    In electronics, the basic LED circuit is an electric power circuit used to power a light-emitting diode or LED. The simplest such circuit consists of a voltage source and two components connected in series: a current-limiting resistor , and an LED...

  • LED lamp
    LED lamp
    An LED lamp is a solid-state lamp that uses light-emitting diodes as the source of light. The LEDs involved may be conventional semiconductor light-emitting diodes, organic LEDs , or polymer light-emitting diodes devices, although PLED technologies are not currently commercially available.Since...

  • LED as light sensor
  • Luminous efficacy
    Luminous efficacy
    Luminous efficacy is a measure of how well a light source produces visible light. It is the ratio of luminous flux to power. Depending on context, the power can be either the radiant flux of the source's output, or it can be the total electric power consumed by the source.Which sense of the term is...

  • Nixie tube
    Nixie tube
    A nixie tube is an electronic device for displaying numerals or other information. The glass tube contains a wire-mesh anode and multiple cathodes. In most tubes, the cathodes are shaped like numerals. Applying power to one cathode surrounds it with an orange glow discharge...

  • Photovoltaics
    Photovoltaics
    Photovoltaics is a method of generating electrical power by converting solar radiation into direct current electricity using semiconductors that exhibit the photovoltaic effect. Photovoltaic power generation employs solar panels composed of a number of solar cells containing a photovoltaic material...

  • Seven-segment display
    Seven-segment display
    A seven-segment display , or seven-segment indicator, is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot-matrix displays...

  • Solar lamp
    Solar lamp
    A solar lamp is a portable light fixture composed of a LED lamp, a photovoltaic solar panel, and a rechargeable battery.Outdoor lamps are used for lawn and garden decorations. Indoor solar lamps are also used for general illumination .Solar lights are used for decoration, and come in a wide variety...

  • Solid-state lighting
    Solid-state lighting
    Solid-state lighting refers to a type of lighting that uses semiconductor light-emitting diodes , organic light-emitting diodes , or polymer light-emitting diodes as sources of illumination rather than electrical filaments, plasma , or gas.The term "solid state" refers commonly to light emitted...

    (SSL)

External links
