The term level crossing (also called a railroad crossing, road through railroad, railway crossing, train crossing or grade crossing) is a crossing on one level ("at-grade intersection") — without recourse to a bridge or tunnel — of a railway line by a road, path, or another railroad. It also applies when a light rail line with separate right-of-way (or a reserved track tramway) crosses a road.
Safety
Early level crossings had a flagman in a nearby booth who would, on the approach of a train, wave a red flag or lantern to stop all traffic and clear the tracks. Manual or electrical closable gates that barricaded the roadway were later introduced. The gates were intended to be a complete barrier against intrusion of any road traffic onto the railway. In the early days of the railways much road traffic was horsedrawn or included livestock. It was thus necessary to provide a real barrier. Thus, crossing gates, when closed to road traffic, crossed the entire width of the road. When opened to allow road users to cross the line, the gates were swung across the width of the railway, preventing any pedestrians or animals getting onto the line. The first U.S. patent for such crossing gates was awarded on 27 August 1867, to J. Nason and J. F. Wilson, both of Boston.
With the appearance of motor vehicles, this barrier became less effective and the need for a barrier to livestock diminished dramatically. Many countries therefore substituted the gated crossings with weaker but more highly visible barriers and relied upon road users following the associated warning signals to stop.
In many countries, level crossings on less important roads and railway lines are often "open" or "uncontrolled", sometimes with warning lights or bells to warn of approaching trains. Ungated crossings represent a safety issue; many accidents have occurred due to failure to notice or obey the warning. Railways in the United States are adding reflectors to the side of each train car to help prevent accidents at level crossings. In some countries, such as Ireland, instead of an open crossing there may be manually operated gates, which the motorist must open and close. These too have significant risks, as they are unsafe to use without possessing a knowledge of the train timetable: motorists may be instructed to telephone the railway signaller, but may not always do so.
The director of rail safety at the UK HM_Railway_Inspectorate commented in 2004 that "the use of level crossings contributes the greatest potential for catastrophic risk on the railways." Eighteen people were killed in the UK on level crossings in 2003-4. Bridges and tunnels are now favoured, but this can be impractical in flat countryside where there is insufficient space to build a roadway embankment or tunnel (because of nearby buildings).
At railway stations, a pedestrian level crossing is sometimes provided to allow passengers to reach other platforms in the absence of an underpass or bridge.
Where third rail systems have level crossings, there is a gap in the third rail over the level crossing, but the power supply is not interrupted since trains have current collectors on multiple cars.
Crossings around the world
Australia
Australian railways generally follow United States practices, and they have increasingly been employing American-made crossing warning equipment, such as grade crossing predictors, which are able to provide a consistent amount of warning time for trains of widely varying speeds.
One recent innovation in Australia is to provide crossbucks with flashing yellow lights at a distance from the level crossing itself, particularly where there are curves and visibility problems.
In Melbourne, Australia, there are several level crossings where electrified train tracks cross roads with electrified tram tracks. These crossings are fitted with equipment to change the voltage supplied to the overhead wiring depending on the vehicle using the crossing at that point in time. Trains are severely speed-limited across these intersections.
Although all cases where a train line crosses a road are level crossings whether or not they are signed, a tram track in its own right of way crossing a road can also be a level crossing if it is signed with a crossbuck which can read either "TRAM WAY CROSSING" or "RAIL WAY CROSSING". Otherwise, it is a regular intersection and usually has either traffic lights or a give way sign facing the road.
Belgium
At a level crossing, any overhead electric power cables must also cross. This led to a conflict where a mainline railway that crossed one of the country's once extensive interurban tramlines (vicinal or buurtspoorweg) was electrified. In at least one location, this led to the tram overhead being dismantled.

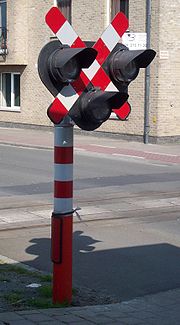

Automatic Level crossings in Belgium have two red lights, an amber light and sometimes barriers. However, the amber flashes for a second every certain number of seconds just to inform drivers and pedestrians that they don't need to check if a train is coming, if the amber light is absent you proceed at your own risk.
Canada
Grade crossing protection practices in Canada are virtually identical to those in the United States (see below) using the same alternating flashing red lights and gate arms. The only significant differences are the crossbucks, which have no wording but are white with a red outline, and the advance-warning sign, which is a yellow diamond shape with a diagram of a track crossing a straight segment of road (similar to a crossroads sign, except that the horizontal road is replaced by a track). Before changes in regulations mandated bilingual (English and French) or no-wording signs, crossbucks were nearly identical to those in the States, except that they read "Railway Crossing" instead of "Railroad Crossing." The red lights also flash a little faster than in the United States.
Italy
The cable-hauled section of the tramway up the hill from Trieste to Opicina has an interesting level crossing with a minor road at midpoint. As well as the rails, people crossing have to step or drive over two haulage cables, separated by wooden planking.
New Zealand
There are 1400 public road level crossings in New Zealand. Half of the crossings are equipped with flashing red lights and bells, with the most major having half barriers. The remainder are controlled by stop and give way signs..
Level crossings are the responsibility of rail infrastructure owner ONTRACK and the New Zealand Transport Agency (formerly Land Transport New Zealand).
On the Taieri Gorge line, and in two places on the Hokitika Branch, in rural South Island, New Zealand, roads and railways share the same bridge when crossing a river, with the rail line in the road. Motorists, as well as giving way to oncoming traffic if required (the bridges are one lane) must ensure that the bridge is clear of a train, end to end, before starting to cross the bridge. For safety, trains are limited to while crossing the bridges.
A unique level crossing exist near Gisborne, in which the Palmerston North - Gisborne Line crosses one of Gisborne Airport's runways. At a signal on either side of the runway, trains must stop and then telephone air traffic control to get permission to cross the runway.
Level crossing safety in New Zealand is relatively poor, with 85 level crossing deaths in the past five years. One of the most notable level crossing accidents occurred in August 1993, when a southbound Southerner passenger train hit a cement mixer at a level crossing at Rolleston, near Christchurch. The accident resulted in three deaths, including Louise Cairns, sister of New Zealand international cricketer Chris Cairns.
East and Southeast Asia

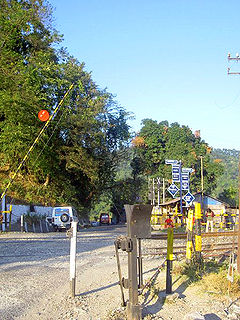

Level crossings in China, Thailand, and Malaysia are still largely manually-operated, where the barriers are lowered using a manual switch when trains approach. A significant number of crossings are without barriers.
Taiwan
As most railways in Taiwan were built during Japanese administration, railway level crossings remain very common, though many urban crossings have been eliminated when the railroads have been moved underground, e.g., segments of the Western Line in Taipei City, or abolished, e.g. the former Danshui TRA Line that is now the DanShui Line of the Taipei Rapid Transit System with no level crossings.
The Act Governing the Punishment of Violation of Road traffic Regulations (zh:??????????) defines three types of railway level crossing violations:
- Not obeying a direction of a flagman or insisting to cross when the gate starts lowering or when the bell rings or the lights flash is a violation for drivers of motorized and non-motorized vehicles and pedestrians.
- Directly crossing a railway level crossing not guarded by any flagman, gate, bell, or flashing light equipment without stopping as required when a warning sign is present is also a violation for drivers of motorized and non-motorized vehicles and pedestrians.
- Overtaking, making a U-turn, backing up, stopping or parking on a railway level crossing is a violation for drivers of motorized and non-motorized vehicles but not pedestrians.
The same Act provides different penalties against different types of railway level crossing violators as follows, with very heavy penalties against drivers of motorized vehicles and much lighter penalties against drivers of non-motorized vehicles and pedestrians:
- Article 54: A driver of a motor vehicle shall be administratively fined 6000 to 12000 new Taiwan dollars for a railway level crossing violation. Should an accident occur, the driver license shall also be revoked permanently according to Article 67. This lifetime revocation used to be absolute, but the amendment of the law proclaimed on 28 December 2005 and effective on 1 July 2006 has allowed a possible waiver after serving at least 6 years of the revocation.
- Article 75: A driver of a non-motorized vehicle (e.g., a bicycle) shall be administratively fined 1200 to 2400 New Taiwan dollars for a railway level crossing violation.
- Article 80: A pedestrian shall be administratively fined 1200 New Taiwan dollars for a railway level crossing violation.
Accidents at railway level crossings remain a very serious concern. The Taiwan Railway Administration alone has hundreds of level crossings along its routes of slightly more than 1100 km. In average, there is a level crossing in less than 2 km.
Red emergency buttons have been installed to allow the public to report an emergency at a level crossing, such as stalled vehicles or any obstacles that would be very dangerous should any train approach. However, willfully misusing the emergency button is a criminal offence. In an emergency, the public is asked to:
- First, press the button and be sure of its activation with a flashing light.
- Second, try to clear any obstacles, including any vehicles.
- Third, if unable to clear the obstacles and the warning bell rings, leave quickly. "A train is coming and please quickly leave the level crossing" will be announced in Mandarin, Taiwanese and Hakka.
Sweden
In Sweden there are 8,500 level crossings, according to the railway administration (Banverket). On public roads they have light signals with or without gates. On private roads there are level crossing without signals. Most accidents occur on crossings without gates. For many years there have been activities to reduce the number of accidents, usually by adding gates, or adding light signals if there were none. On the main lines many bridges have been built, and also anywhere a new road or new railway has been built. Still there are some level crossing left on the main lines. A train speed of 200 km/h is allowed in Sweden over level crossings, if there are gates and an obstacle detection unit. This unit detects cars on the track and prevents the gates from closing fully and stops the train. According to Banverket there has during 15 years only been one serious collision between a car and a train on such a level crossing, when a car ran through the gates just in front of the train.
United Kingdom
There were 8,200 level crossings in the UK in 2005, of which, 1,600 were road crossings. This number is gradually being reduced as the risk of accident at level crossings is considered high. The director of the UK Railway Inspectorate commented in 2004 that "the use of level crossings contributes the greatest potential for catastrophic risk on the railways." Bridges and tunnels are now favoured, and there is a commitment on the part of UK rail authorities not to build new level crossings, and to reduce the number of existing level crossings. The cost of making significant reductions, other than by simply closing the crossings, is substantial; some commentators argue that the money could be better spent. Some 6500 crossings are user-worked crossings or footpaths with very low usage. The removal of crossings can also improve train performance as some crossings have low rail speed limits enforced on them to protect road users.
In November 2004 there were two major accidents on UK level crossings: one involved a car driver committing suicide, who caused the death of seven people (Ufton Nervet rail crash); another involving a train carrying 50 school children resulted in no fatalities but a number of injuries. These incidents have increased efforts to review the placing of level crossings and to eliminate them where this is practicable. In the UK it has also been suggested that cameras similar to the type used to detect drivers who run traffic lights be deployed at level crossings, and that penalties for ignoring signals should be much more severe. A particular problem has been that the responsibility for the road safety at crossings is entirely outside the control of the railways. In 2006 legislative activities are in progress to permit Network Rail to be involved in the road side safety of crossings. This will allow the introduction of anti-slip surfaces and also barriers to prevent motorists driving around crossing arms and, it is hoped, reduce the number of crossing related deaths.
In the United Kingdom, major crossings were normally situated within easy viewing distance of a signal box, and usually directly adjacent to the signal box. This ensured that the signalman could verify that the road was clear before allowing a train onto the crossing. Many gated crossings have been replaced by lifting barriers, which are easier to mechanise. "Full barriers" consist of barriers each side of the track, which block the full width of the road and "half barriers" consist of a single arm each side of the road, which block only oncoming traffic. Half barriers were considered to have an advantage as motorists are less likely to be stranded on the crossing and unable to exit, but cases where impatient motorists have driven around the barriers have raised safety concerns. Video cameras are now often used at crossings to allow the human operator to be some distance from the crossing. On lightly-used railways many crossings are sited next to station stops or other stopping points and are crew operated. The guard pushes a plunger to operate the crossing. On completion of the crossing sequence, an indicator light permits the train to proceed if the crossing is observed by the train driver to be clear. After the train has cleared the crossing, it re-opens to road traffic.
To ensure that the barriers are noticed and to draw attention, public road crossings may be fitted with a ringing warning bell or siren and with lights. Some crossings also have a telephone which connects to the relevant signal box so that in case of an emergency the signalman's attention can be drawn promptly to the hazard and action can be taken. Some "automatic open crossings", with warning lights and bells but no barriers, were introduced, but their expansion was largely halted after the Lockington rail crash. Some smaller crossings, particularly pedestrian crossings on low-speed lines consist of nothing but a warning sign and raised pathway across the track itself.
The use of pedestrian crossings at stations is now rare, although historically it was common that passengers walked across the line between platforms on branch lines. At Settle, for example, before the footbridge was installed in the 1990s, the time taken while passengers from Leeds walked across the line was happily used to top up the driver's kettle with hot water. With a few exceptions, such as at Carmarthen, the remaining examples occur only on heritage railways or as a means for passengers who cannot climb stairs to move between platforms where the only other route is a footbridge.
For the episode of British motoring show Top Gear on the 25 February 2007, Network Rail staged a mock train crash in which an old locomotive was driven into a Renault Espace at around 80mph to graphically illustrate the dangers of "running the risk".
The idea of 'modular' level crossing barriers were a consideration by Network Rail when they introduced a new modular building system in 2008. The term 'modular' meaning they can be assembled and erected into place in a mere matter of hours.
United States
In the United States and in countries following U.S. practices, a locomotive must have a bright headlight and ditch lights (two lights located below the headlight), a working bell, and a whistle or horn that must be sounded four times (long-long-short-long), similar to the signal for the International Morse Code letter "Q", as the train approaches the crossing.
Some American cities, in the interest of noise abatement, have passed laws prohibiting the sounding of bells and whistles; however, their ability to enforce such rules is debatable. In December 2003, the U.S. Federal Railroad Administration published regulations that would create areas where train horns could be silenced, provided that certain safety measures were put in place, such as concrete barriers preventing drivers from circumventing the gates or automatic whistles (also called wayside horns) mounted at the crossing (which reduce noise pollution to nearby neighborhoods). Additional information can be found at the Implementation of the new "Quiet Zone" Final Rule was delayed repeatedly but was finally implemented in the summer of 2005. Rail "Quiet Zone" crossings still require bells as part of the automatic warning devices (AWDs) in addition to the wayside horns. The wayside horns usually are sets of speakers that are directed at the crossing mounted right up on a pole.
Every crossing, whether above grade, below grade, or at grade, is required to be assigned a unique identifier which is a six-digit number and a trailing letter used as a checksum. This identifier is called a Grade Crossing Number, and is usually posted with a sign or sticker on the sign or equipment. This allows a particular crossing anywhere in the United States to be precisely identified as to its exact location in the event of an incident involving that crossing.
All public crossings in the United States are required to be marked by at least a crossbuck; most crossings intersecting rural roads have this setup. If the crossing has more than one railroad track, the crossbuck will usually have a small sign beneath it denoting the number of tracks. As traffic on the road crossing or the rail crossing increases, safety features are increased accordingly. More heavily trafficked crossings have AWDs, with alternately flashing red lights to warn automobile drivers and a bell to warn pedestrians. Additional safety is attained through crossing gates that block automobiles' approach to the tracks when activated. Increasingly, crossings are being fitted with four-quadrant gates to prevent circumventing the gates.
Operation of a typical AWD-equipped railroad crossing in the United States is as follows:
- Approximately 30 seconds before arriving at the crossing, the train trips a track circuit near the crossing, triggering the crossing signals. The lights begin to flash alternately, and a bell mounted at the crossing begins ringing. After several seconds of flashing lights and ringing bells, the crossing gates (if equipped) begin to lower, which usually takes 5-10 seconds. Some AWDs will silence the bell once the gates are fully lowered; most continue ringing the bells throughout. The lights continue to flash throughout regardless.
- Approximately 15 to 20 seconds before arriving at the crossing, the train begins ringing its bell and sounding its horn in accordance with NORAC rule 14L or GCOR rule 5.8.2(7): two longs, one short, and one long. These are prolonged or repeated until the engine occupies the crossing. If the AWD is equipped with a horn in accordance with FRA Quiet Zone rules, the AWD may provide the whistle signal instead of the train; however, the train is required to ring its bell regardless.
- After the train has cleared the crossing, the gates (if equipped) begin to rise, and the bells (if silenced) may begin ringing again. Once the gates have completely risen back to their fully raised position, all warning signals, including the lights and bells, are deactivated.
Some AWD track circuits are equipped with motion detectors that will deactivate the crossing signal if the train stops or slows significantly before arriving at the crossing.
As indicated above, the pattern of the bells at each individual crossing can be different. (These bells should not be confused with the bells that are mounted on the trains.) Generally, the bells follow one of these patterns:
- The bell begins ringing when the lights begin flashing and ceases when the gates have completely lowered.
- The bell begins ringing when the lights begin flashing and ceases when the gates begin to rise following the passing of the train.
- The bell begins ringing when the lights begin flashing and temporarily stops when the gates have completely lowered. However, when the gates begin to rise, the bell begins ringing again, until the gates have returned to their original position.
- The final, and most common, practice is for the bells to begin ringing when the lights begin flashing and continue till the gates have risen after the train passes.
Some level crossings that are located too close to intersections with traffic lights will program the signals so when the approaching train trips the track circuit, it not only activates the crossing signals, but also changes the traffic lights facing the crossing from green to red, with no yellow phase. Some track circuits disable the traffic lights the entire time the AWDs are active, making them flash yellow in one direction and red in the other.
A few level crossings still use wigwag signals, which were developed in the early 1900s by the Pacific Electric Railway interurban system in the Los Angeles region to protect its many level crossings. Though now considered to be antique, around 100 such signals are still in use, almost all on branch lines. By law, these signals must be replaced by the now-standard alternating red lights when they are retired.
A special kind of crossing sign assembly was introduced on an experimental basis in Ohio in 1992, the "Buckeye Crossbuck". It includes an enhanced crossbuck, reflective and with red lettering, and also a reflective plate reading "YIELD" below the crossbuck, whose sides are bent backwards in order to catch and reflect at a right angle the light of an approaching train. The experiment's final report ("Evaluation of the Buckeye Crossbuck at Public, Passive Railroad/Highway Grade Crossings in Ohio", Ohio Department of Transportation State Job Number 14612, December 2000) gave the device a favorable review. However, the plate was rejected for inclusion in the 2003 Manual on Uniform Traffic Control Devices.
A track that will run high-speed trains in excess of 120 mph (193 km/h) is being tested in Illinois between Chicago and St. Louis, Missouri. Here, due to the high speed of the trains, gates that totally prevent road traffic from reaching the tracks are mandatory on all level crossings. Steel mesh nets were tested on some crossings to further prevent collisions, but these were removed because of maintenance issues in 2001.
A new device called "StopGate" has been installed at four locations, one in Madison, Wisconsin; another in Monroe, Wisconsin and two in Santa Clara, California (on a light rail system). This system resembles a fortified version of a standard crossing gate, with two larger arms blocking the entire width of the roadway and locking into a securing device on the side of the road opposite the gate pivot mechanism. The gate arms are reinforced with high-strength steel cable, which helps the gate absorb the impact of a vehicle attempting to crash through the gate. The manufacturer claims that the StopGate can arrest a 2,000 kg (4,400 lb) truck within 13 feet (four meters). Already the system has been tested at the Madison crossing, when the system stopped a truck while a Wisconsin and Southern Railroad train was in the crossing.
Another new type of barrier is being tested in Michigan that is hoped will reduce the number of times drivers attempt to drive around lowered crossing gates. The new devices are called "delineators" consisting of a series of flexible cylinders that raise vertically out of vertical tubes in the pavement when the crossing signal is activated. The delineators are designed so that they will not be broken and will not damage vehicles if they are hit, allowing vehicles to exit the level crossing if they are already within it when the gates are activated. The test period for the new barrier began on 5 December 2007, and will run for a period of 17 months.
Innovation
An innovation yet to be proved practical is to transmit level crossing warning signals by radio into the cabin of the road vehicle. This would be particularly useful at passive crossings not yet fitted with flashing lights.
Gallery
Image:Andrejev križ.jpg|Europe uses a St Andrew's Cross to warn road users
Image:Railroad Junction2004 x.JPG|In North America, the words "Railroad Crossing" normally appear on the warning sign in the US, while in Canada, the sign is white with red trim
Image:Highway-Rail Grade Crossing Advance Warning sign.svg|This circular sign is used in the U.S. as an advance warning of the crossing; the crossbuck is at the crossing proper. This is one of the only road signs in the U.S. shaped like a circle.
Image:Umlaufgitter.jpg|A fence or chicane may prevent pedestrians running across the track
Image:Valovaroituslaitos.jpg|A new Finnish warning sign at Loimaa. It is very inexpensive and intended for low-traffic roads.
Image:Dubulti level crossing.JPG|Dubulti level crossing, Jurmala, Latvia
Major accidents
Dorion level crossing accident — 1966 - 19 killed
— 1967 - 94 killed
Hixon rail crash — 1968 - 11 killed
Onyang level crossing disaster — A charter bus hit by express train and kills 42 on October 1970.
Lockington rail crash — 1986 - 9 killed
Ahungalla level crossing disaster — Kills 51 and injures 110 on January 1989.
Luchu level crossing disaster — Kills 25 and injures 32 on December 1990.
Fox River Grove level crossing accident — 1995 - 7 killed
35 wedding guests are killed when their bus is run down by a train in Alappuzha, Kerala on May 14, 1996
A train and collision with a tractor at Varanasi, Uttar Pradesh with kill twenty-five on May 25, 1996
Bourbonnais train accident — 1999 - 11 killed
Gerogery level crossing accident — 2001 - 5 killed
Ufton Nervet rail crash — 2004 - 7 killed
Glendale train crash — 2005 - 11 killed
Polgahawela level crossing collision, Sri Lanka — 2005: a bus tries to beat the train at a level crossing; at least 35 people are killed.
Johannesburg level crossing accident — 2005: 9 killed.
Nagpur level crossing disaster — 2005 - 55 killed.
Kerang train crash — 2007 - 11 killed
9 March 2008, Dolores, Buenos Aires - A bus collided with a passenger train, killing 17 and injuring at least 35, when the bus driver ignored the railroad crossing warning devices.
16 April 2008 – According to ATN Bangla television, a Dinajpur-Dhaka Ekoto Express train hit a local bus on a level crossing outside of Kalihati, Tangail, Bangladesh, killing 18 and injuring 30.
Marsa Matruh 16 July 2008- a truck failed to stop, pushing waiting traffic into the path of the train. At least 40 killed.
2009 Slovakian coach and train collision 21 February 2009 - 12 killed - lights but no booms
