Kayak
|
| |
|
| |
A kayak is a small human-powered boat. It typically has a covered deck, and a cockpit covered by a spraydeck. The kayak was used by the native Ainu, Aleut and Eskimo hunters in sub-Arctic regions of northeastern Asia, North America and Greenland. It historically was, and often still is, or can be, propelled by a double-bladed paddle in the hands of a sitting paddler. Modern kayaks come in a wide variety of designs and materials for specialized purposes.
Discussion
Ask a question about 'Kayak' Start a new discussion about 'Kayak' Answer questions from other users |
Encyclopedia
A kayak is a small human-powered boat. It typically has a covered deck, and a cockpit covered by a spraydeck. The kayak was used by the native Ainu, Aleut and Eskimo hunters in sub-Arctic regions of northeastern Asia, North America and Greenland. It historically was, and often still is, or can be, propelled by a double-bladed paddle in the hands of a sitting paddler. Modern kayaks come in a wide variety of designs and materials for specialized purposes. Kayaks are in some parts of the world referred to as canoes.
Design
Traditional kayaks typically accommodate one, two or occasionally three paddlers who sit facing forward in one or more cockpits below the deck of the boat. If used, the spraydeck or similar waterproof garment attaches securely to the edges of the cockpit, preventing the entry of water from waves or spray, and making it possible, in some styles of boat, to roll the kayak upright again without it filling with water or ejecting the paddler.
Inuit/ Eskimo Kayaks were only discovered by Europeans in the early 20th Century. Kayaks are a type of a generic class of boat of Canoe Shape. European Canoeing clubs and associations of the 19th Century used similar craft to what are now called Kayaks, but referred to these as types of Canoe. This explains the naming of the International and National Governing bodies of the sport of Canoeing.
John MacGregor (sportsman)
- . London: S. Low and Marston, 1866. First edition, illustrated. From Internet Archive.
Origins
Kayaks (Inuktitut: qajaq, Inuktitut syllabics: ???) were originally developed by indigenous people living in the Arctic regions, who used the boats to hunt on inland lakes, rivers and the coastal waters of the Arctic Ocean, North Atlantic, Bering Sea and North Pacific oceans. These first kayaks were constructed from stitched animal skins such as seal stretched over a wooden frame made from collected driftwood, as many of the areas of their construction were treeless. Archaeologists have found evidence indicating that kayaks are at least 4000 years old. The oldest still existing kayaks are exhibited in the North America department of the State Museum of Ethnology in Munich.
Though the term "kayak" is now used broadly for this class of boat, native people made many different types of boat for different purposes. The baidarka developed by indigenous cultures in Alaska was also made in double or triple cockpit designs, and was used for hunting and transporting passengers or goods. An umiak is a large open sea canoe, ranging from to , made with seal skins and wood. It was originally paddled with single bladed paddles and typically had more than one paddler.
The word "kayak" means "man's boat" or "hunter's boat", and native kayaks were a very personal craft, built by the man who would use them (with assistance from his wife, who would sew the skins) fitting his measures, for maximum maneuverability. A special skin jacket, Tuilik, was then laced to the kayak, creating a waterproof seal. This made the eskimo roll the preferred method of regaining posture after turning upside down (from the kayaking point of view, it's not a capsize until you come out of the boat), especially as few Eskimos could swim; their waters are too cold for a swimmer to survive for very long.
The modern version of a tuilik is a spraydeck made of waterproof synthetic stretchy enough to fit tightly around the cockpit rim and body of the kayaker, which can however be released rapidly from the cockpit to permit easy exit from the boat.
The builder used found materials and anthropomorphic measurements, using his own body, to create a kayak conforming closely to his own body. For example: the length was typically three times the span of his outstretched arms. The width at the cockpit was the width of the builder's hips plus two fists (and sometimes less). The typical depth was his fist plus the outstretched thumb (hitch hiker). Thus typical dimensions were about long by 20-22 inches wide by deep. This measurement style confounded early European explorers who tried to duplicate the kayak because each kayak was a little different.
Traditional kayaks encompass three types of boat: Baidarkas, from the Alaskan & Aleutian seas, the oldest design, whose rounded shape and numerous chines give them an almost Blimp-like appearance; West Greenland kayaks, with fewer chines and a more angular shape, with gunwales rising to a point at the bow and stern; and East Greenland kayaks that appear similar to the West Greenland style, but are often more snugly fitted to the paddler and possess a steeper angle between gunwale and stem which lend maneuverability.
Most of the Eskimo peoples from the Aleutian Island eastward to Greenland relied on the kayak for hunting a variety of prey — primarily seals, though whales and caribou were important in some areas.

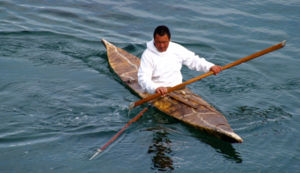

Skin on frame kayaks are still being used for hunting by Inuit people in Greenland. In other parts of the world homebuilders are continuing the tradition of skin on frame kayaks albeit with modern skins of canvas or synthetic fabric.
Contemporary kayaks trace their origins primarily to the native boats of Alaska, northern Canada, and Southwest Greenland. Wooden kayaks and fabric kayaks on wooden frames (such as the Klepper) dominated the market up until 1950s, when fiberglass boats were first introduced. Rotomolded plastic kayaks first appeared in 1973. The development of plastic kayaks arguably initiated the development of freestyle kayaking as we see it today, since plastic boats could be made smaller, stronger and more resilient than those made of other materials.
Modern kayaks
Modern kayaks have evolved into numerous specialized types, that may be broadly categorized according to their application as sea kayaks, whitewater (or river) kayaks, surf kayaks, and racing kayaks (flat water, white water, or slalom), though many hybrid types exist as well, broadly labeled recreational kayaks. The label "kayak" is often misapplied to other small, human-powered vessels not descended from the kayak tradition, including multi-hull or outrigger boats and those which elevate above the water on hydrofoils.
Sea kayaks are typically designed for travel by one or two paddlers on open water and in many cases trade maneuverability for seaworthiness, stability, and cargo capacity. Sea-kayak sub-types include open-deck "sit-on-top" kayaks, recreational kayaks, and collapsible "skin-on-frame" boats.
Whitewater kayaks are in some cases highly maneuverable boats, usually for a single paddler, and include such specialized boats as playboats and slalom kayaks. White water racers combine a fast, unstable lower hull portion with a flared upper hull portion to combine flat water racing speed with extra stability in open water: they are not fitted with rudders and have similar manoeuvrability to flat water racers.
Surf skis, are specialized narrow and long boats for racing, surfing breaking waves and surf-zone rescues. Racing kayaks are designed for speed, and usually require substantial skill to achieve stability, due to extremely narrow hulls, though downriver racing kayaks are a hybrid style with whitewater boats.
Surf Kayaks are in many respects similar to whitewater boats, however often equiped with up to three fins. Specialty surf boats typically have flat bottoms, and hard edges, similar to surf boards. The design of a surf kayak promotes the use of an ocean surf wave (moving wave) as opposed to a river or feature wave (moving water). They are typically made from rotomolded plastic, or fiberglass.
Modern kayaks are typically constructed from rotomolded plastic, wood, fabrics over wooden or aluminum frames, fiberglass, Kevlar, or carbon fiber. Most kayaks accommodate one or two paddlers, but some special-purpose boats may accommodate more.
Sea kayaks
The sea kayak, though descended directly from traditional designs and types, is implemented in a wide variety of materials, and with many distinct design choices. Sea kayaks as a class are distinct from whitewater kayaks and other boats by typically having a longer waterline (emphasizing straight travel through the water over extreme maneuverability), and provisions for below-deck storage of cargo. Sea kayaks may also have rudders or skegs (also for enhanced straight-line tracking), and such features as upturned bow or stern profiles for wave shedding. Modern sea kayaks often have two or more internal bulkheads to provide watertight internal sections for flotation and waterproof storage. Sea kayaks, unlike most whitewater kayaks, may be built to accommodate two or sometimes three paddlers. Certain sea kayaks can even be used for surfing.
Wooden kayaks
Kayaks made from thin wood sheathed in fiberglass have proven successful, especially as the price of epoxy resin has decreased in recent years. Two main types are popular, especially for the homebuilder: Stitch & Glue, and Strip-Built.
Stitch & Glue designs use modern, marine-grade plywood -- typically quarter-inch (5mm) thick. After cutting out the required pieces of hull and deck (kits will often have these pre-cut), a series of small holes are drilled along the edges. Copper wire is then used to "stitch" the pieces together through the holes. After the pieces are temporarily stitched together, they are glued with epoxy and the seams reinforced with fiberglass. When the epoxy dries, the copper stitches are typically removed. The entire boat is then covered in fiberglass for additional strength and waterproofing. This construction method is fairly straightforward, but as the plywood does not bend to form curves, design choices are limited. This is a good choice for the first-time kayak builder as the labor and skills required(especially for kit versions) is considerably less than for strip-built boats.
Strip-built kayaks are similar in shape to commercially available rigid fiberglass kayaks but are generally both lighter and tougher. Like their fiberglass counterparts the shape and size of the boat determines how they perform and what uses are optimal. The hull and deck are built with thin strips of lightweight wood, often Cedar, Pine or Redwood. The strips are edge-glued together around a form, stapled or clamped in place, and allowed to dry. This forms a wooden shell, which is not inherently strong. The boat's strength comes from a layer of fiberglass cloth and epoxy resin, inside and out. Strip built kayaks are sold commercially by a few companies, priced $4,000 and up. An experienced woodworker can build one for about US$400 in 200 hours, though the exact cost and time will be determined by the builder's skill, the materials chosen and the kayak's size/design. As a second kayak project, or for the serious builder with some woodworking expertise, a strip-built boat can be an impressive piece of work. Kits with pre-cut and milled wood strips are commercially available.
Skin on frame kayaks
Often an umbrella term for several types of kayaks, Skin on Frame boats are primarily considered a more traditional boat in design, materials, construction, and technique. They are often the lightest kayaks, and were traditionally made of driftwood pegged or lashed together and stretched seal skin, as those were the most readily available materials in the Arctic regions. Today, the seal skin is usually replaced with canvas or nylon cloth covered with paint, neoprene, or a hypalon rubber coating and the wood with aluminum.
Folding kayaks
A special type of skin-on-frame kayak is the folding kayak, the direct descendant of the original Eskimo kayak. A folder is a modern kayak with a collapsible frame, of wood, aluminum or plastic, or a combination thereof, and a skin, of some sort of water-resistant and durable fabric. Many types have integral air sponsons inside the hull, increasing secondary stability and making the kayaks virtually unsinkable.
Folders are known for their durability, stability, and longevity: The Klepper Aerius I, a single-seater, has been used successfully for white-water kayaking, due to its durability and excellent maneuverability, while many Kleppers have been in frequent use for more than 20 years.
Folding kayaks exhibit many of the same paddling characteristics as the original skin-and-frame vessels of the circumpolar north. Of all modern kayaks, they are closest relatives to the skin-and-frame boats of the past.
Military kayaks
Kayaks were adapted for military use in the Second World War. Used mainly by British Commando and Special Forces, principally the Combined Operations Pilotage Parties (COPPs), the Special Boat Service (at that time an Army unit) and the Royal Marines Boom Patrol Detachment.
The latter made perhaps the best known use of them in the Operation Frankton raid on Bordeaux harbour. .
Following the war the SBS was reformed as a Royal Marines unit and the Klepper Aerius II folding kayak became a staple of its training and operations.
Sit-on-tops
Sealed-hull (unsinkable) craft were developed in the past for leisure use, as derivatives from surfboards (e.g. paddle or wave skis), or for surf conditions. Variants include planing surf craft, touring kayaks, and sea marathon kayaks. Increasingly, manufacturers are building leisure 'sit-on-top' variants of extreme sports craft these are normally built using polyethylene to ensure strength and keep the price down
, often with a skeg (fixed rudder) for directional stability. Water that enters the cockpit drains out through scupper holes - tubes that run from the cockpit to the bottom of the hull. Sit-on-top kayaks usually come in single and double (two paddler) designs, although a few models accommodate three or four paddlers. Sit-on-top kayaks are particularly popular for fishing and SCUBA diving, since participants need to easily enter and exit the water, change seating positions, and access hatches and storage wells. Ordinarily the seat of a sit-on-top is slightly above water level, so the center of gravity for the paddler is higher than in a traditional kayak. To compensate for the center of gravity, a sit-on-top is often wider than a traditional kayak of the same length, and is considered slower as a result.
Recreational kayaks
Recreational kayaks are designed for the casual paddler interested in fishing, photography, or a peaceful paddle on a lake or flatwater stream; they presently make up the largest segment of kayak sales. Compared to other kayaks, recreational kayaks have a larger cockpit for easier entry and exit and a wider beam (27–30 inches) for more stability on the water; they are generally less than twelve feet in length and have limited cargo capacity. Using less expensive materials like polyethylene and including fewer options keep these boats inexpensive (US$300–$580). Most canoe/kayak clubs offer introductory instruction in recreational boats as a way to enter into the sport. Sometimes advanced paddlers still use recreational kayaks. They can fit all levels, but sometimes do not perform as well in the sea. The recreational kayak is usually a type of touring kayak.
Whitewater kayaks
Plastic whitewater kayaks are rotomoulded in a semi-rigid, high impact plastic, which is usually polyethylene. Careful construction is needed to ensure that the completed boat will remain structurally sound when subjected to the incredible forces of fast-moving water. A plastic hull allows these kayaks to bounce off rocks without suffering leaks, although they can be scratched and eventually worn through with enough use. Standard whitewater boats are shorter than other types of kayaks, ranging from 4 to 10 feet (1.25 to 3 metres) long. There are two main types of whitewater kayak, and most experienced paddlers own one of each.
One type, known as the playboat, is short, with a scooped bow and blunt stern. These are slow and not extremely stable, but they are incredibly maneuverable. Their primary use is performing tricks in single water features or short stretches of river. In playboating or "freestyle" competition (also known in some parts of the US as "rodeo" boating), kayakers exploit the complex currents of rapids to do a series of tricks, which are scored for skill and style.
The other primary type is the creekboat, which gets its name from its purpose: running narrow, low-volume waterways. Creekboats are longer and have far more volume than playboats, which makes them faster and higher-floating. They are also designed to be very stable. Many paddlers use creekboats in "short boat" downriver races, and they are often seen on large rivers where their extra stability and speed may be necessary to get through the rapids.
Between the creekboat and playboat extremes is a general category called "river running" kayaks. These medium-sized boats are designed for rivers of moderate to high volume, and some, known as "river running playboats", are capable of basic playboating moves. They are typically owned by paddlers who do not have enough involvement in whitewater to merit the purchase of multiple more specialized boats.
Most whitewater kayakers consider fiberglass boats old-fashioned, but there are some types of kayak that work much better if made from fiberglass. Squirt boats and racing kayaks are among them.
Squirt Boating involves paddling both on the surface of the river and underwater. Squirt boats must be custom-fitted to the paddler in order to ensure comfort while maintaining the low interior volume necessary to allow the paddler to submerge him- or herself completely in the river.
Racing whitewater kayaks, like all racing kayaks, are made to regulation lengths and are generally made out of fibre reinforced resin (fiberglass) for speed. This makes them stiffer, lighter, and less readily scratched than plastic hulls, though they are more prone to breakage from impact. Repairs are often necessary, especially if the paddler is inexperienced. Slalom kayaks are flat hulled, highly manoeuvrable, and stable but not very fast in a straight line; downriver white water racers have a combination hull with a fast but unstable lower section similar to a flat water racer's hull flaring out into a wider section higher up similar to a slalom hull to provide stability in big water.
Surf kayaks
Traditional Surf Kayaking comes in two main varieties, High Performance (HP) Surf Kayaks and International Class (IC) Surf Kayaks. HP boats tend to have a lot of nose rocker, very little to no tail rocker, very flat hulls, very sharp rails and up to three fins. This enables them to generate lots of speed and be able to pull very dynamic moves. IC boats have to be at least 3 m long and have to have a convex hull, the surfing of international boats tends to be smoother and more flowing. International class is often thought of as the long boarding of the kayaking world. Surf boats come in a variety of constructions ranging from tough but heavy plastics through to super light, super stiff but rather fragile foam cored Kevlar carbon. Surf Kayaking has become popular in locations were you will find traditional surfboard surfing, as well as new locations such as the Great Lakes.
Surf Kayaking, utilizing boats similar to construction as many whitewater varieties, is popular in many coastal areas. Specialty Surf Kayaks, or whitewater kayaks fitted with fins, carry many design similarities with surf boards.
See, Surf Kayaking
Waveskis
A variation on the closed cockpit surf kayak is sit-on-top called a waveski. Although the waveski utilises similar dynamics, in terms of paddling technique and surfing performance on the waves, construction can be very similar to surfboard designs. Elite waveski surfers are able to more closely imitate surfboard maneuvers in speed and aerial performance.
Racing kayaks
Flatwater racing kayaks
The three types of flatwater racing kayaks (sometimes termed 'sprint boats') are K1 (single paddler), K2 (two paddlers) and K4 (four paddlers). These boats are raced at the Olympic level by men and women over courses of 200 m, 500m, and 1000m (women compete on 1000 m since 1997).
World Championship events:
- distances: 200 m, 500m, 1000 m
- boat units: men and women K1, K2, K4; men canoe C1, C2, C4 All units compete on all distances.Each country can send one unit per event.
Olympic events:
- distances: 500 m, 1000m
- events: men K1-K2 500m, K1-K2-K4 1000m; women K1-K2-K4 500m, men canoe C1-C2 500m, C1-C2 1000m Each country can send one unit per event.
Flatwater racing kayaks are generally made out of extremely lightweight composites such as Kevlar, carbon fiber, or fiberglass. They are not intended for any condition other than flat water. They are narrow, extremely unstable, and expensive, with a competitive K1 or K2 running in the US$2000 - US$4000 range. They require a good level of expertise to paddle well, but are extremely fast in the hands of proficient users. The beam of a flatwater boat is typically barely wider than the hips of the person who paddles it, allowing for a very long and narrow shape to reduce drag.
Due to their length (a K1 is 5.2m (17 ft) long and a k2 is 6.2m (20 ft) long), sprint boats come equipped with a rudder to help with turning. The rudder is controlled by the feet of the paddler (the foremost paddler in multi-person designs). In spite of this, these boats have a fairly large turning radius.
Flatwater racing kayaks are closely related to flatwater racing canoes, with both styles of boat usually training at the same club or with the same team, although it is rare for paddlers to compete in both canoes and kayaks.
Surf Ski
A highly specialized variant of flatwater racing kayak called a Surf Ski has an open cockpit and can be up to twenty-one feet long but only eighteen inches wide, requiring expert balance and paddling skill. Surf Skis were originally created for surf and are still used in surf races in New Zealand, Australia, and South Africa. They have become very popular in the United States for ocean races, lake races and even downriver races.
Slalom kayak
Kayaks designed for Slalom canoeing have a relatively flat hull for maneuverability and—since the early 1970s—low profile decks.
Like all racing kayaks, they are usually made of fibre reinforced resin (usually epoxy or polyester reinforced with kevlar, glass fibre, carbon fibre, or some combination). This form of construction is stiffer and has a harder skin than non-reinforced plastic construction such as rotomoulded polyethylene: stiffer means faster, and harder means fewer scratches and therefore also faster.
Specialty and multi-type kayaks
The term "kayak" is increasingly applied to many craft that evolved substantially from traditional kayaks.
Inflatable kayaks
Another special type of kayak is the inflatable kayak, also known as the "ducky". Inflatable kayaks usually can be transported by hand using a carry bag. They are made of hypalon (a kind of neoprene), pvc, or polyurethane coated cloth. They can be inflated with foot, hand or electric pumps. Multiple compartments in all but the least expensive increase safety. They generally use low pressure air, almost always below 3 psi.
Until recently, inflatable kayaks have been non-rigid boats, essentially pointed rafts, and best suited for use on rivers and calm water. However, recently some manufacturers have combined folding kayak design principles (notably the use of an internal frame) with "Sit-on-top kayak" (see above) overall design using multiple inflatable sections to produce a seaworthy inflatable sea kayak.
Besides being portable, inflatable kayaks generally are stable with a small turning radius and are easy to master, but they take more effort to paddle and are slower than traditional kayaks.
Pedal kayaks
A special type of kayak using pedals allows the kayaker to propel the vessel with a propeller or underwater "flippers" attached to pedals in the cockpit, rather than with a paddle. This allows the kayaker to keep his or her hands free for steering the rudder, fishing and other activities.
Multi-hull and outrigger kayaks
Traditional multi-hull vessels such as catamarans and trimarans benefit from increased lateral stability without sacrificing their speed but these advantages cannot be successfully applied in all multihull kayak models Outrigger kayaks, are equipped with either a single or a pair of usually smaller hulls (outriggers) attached to the main hull to provide additional stability, especially for fishing, touring and kayak sailing.
Twinhull sit-on-top and sit-in kayaks have been on the market for many years. The inflatable models are popular in whitewater and fishing applications and the Polyethylene models in fishing and recreation.
Fishing kayaks
While native people of the Arctic regions did not rely on kayaks for fishing, in recent years sport fishing from kayaks has become popular in both fresh and salt water, especially in warmer regions. Specially designed fishing kayaks have emerged, with designs similar to those of recreational sit-in and sit-on-top kayaks characterized by very wide beams (up to 36 inches) that increase lateral stability. Some fishing kayaks are equipped with outriggers for this reason, and the newer twinhull models are stable enough to enable paddling and fishing in the standing position. In the past several years kayak fishing has become a huge sport. The popularity has grown due to the ease of entry. Kayaks can be purchased inexpensively and have little maintenance costs. Kayaks can be stored in small spaces and launched quickly. Many kayak dealers across the U.S. have started customizing their kayaks for fishing.
Standing in Kayaks
While paddling in the standing position has been practiced for centuries in canoes (including Umiaks, Pirogues, native dugout canoes worldwide etc.) it is only recently that paddlers have begun to paddle standing in kayaks as a recreational activity. This is called 'Striding', and involves paddling wide, inflatable kayaks down fast rivers while strapping the ankles to the kayak - similar to what is being done with skis in snow sports.
Modern kayak design
Modern kayaks differ greatly from native kayaks in every aspect – from initial conception through design, manufacturing and usage.
Today almost all kayaks are conceived as commercial products intended for sale and not necessarily just for the builders’ personal use. While native kayak builders used their personal experience in combination with knowledge they acquired from orally transmitted traditions, modern kayaks are designed with CAD (Computer Aided Design) software programs, often in combination with naval design software, and in some cases with special kayak design software.
Modern kayaks differ greatly from native kayaks in usage and therefore in shape: Nearly one of every three kayaks sold today is a sit-on-top (SOT), which is basically a paddleboard equipped with a seat. Unlike traditional kayaks many kayaks today are designed for whitewater and surf applications, and are extremely short (some measure less than in length). Other modern designs are extremely wide (e.g. recreational, fishing). Some modern kayaks are equipped with one or two extra hulls (outriggers) to increase their stability, some have twin hulls (catamaran kayaks, W kayaks), some are inflatable, and some are no longer propelled by the traditional dual blade paddle (‘kayak paddle’) but by means of pedals that activate a propeller (‘pedal kayaks’). In fact, some modern kayaks are no longer using human powered propulsion at all but are sailed (‘sailing kayaks’) or propelled by a trolling motor – usually an electric one.
Even kayaks that copy traditional forms (e.g. monohull sea kayaks, touring kayaks) are considerably different from the original native designs that serve as inspiration for them: They are equipped with specially designed seats and foot braces that no native kayak ever featured, they are often equipped with a rudder system, which is totally alien to native kayak design, and they feature bulkheads, floatation, hatches and eyelets that native kayaks never had.
Most kayaks today including the ones inspired by ancient forms are manufactured entirely from plastic resins or from such materials in combination with other materials (e.g. synthetic fibers, plywood, wood strips). This is why hardly any modern kayak features the traditional frame made of ‘ribs’ over which native kayak builders used to stretch sealskins sewn together.
In sum, modern kayak designs reflect the diversity in usage as well as the advancement in design and manufacturing technologies.
Design of traditional style kayaks
The design of different types of kayak is largely a matter of trade-offs between directional stability ("tracking") and maneuverability, and between stability (both Primary stability and secondary stability) and overall speed.
Length: As a general rule, a longer kayak is faster while a shorter kayak may be turned more quickly - but the higher potential top speed of the longer kayak is largely offset by increased friction. Kayaks that are built to cover longer distances such as touring and sea kayaks are themselves longer, generally between 16 and . A flat water racing K1's maximum length governed by the ICF is . Whitewater kayaks, which generally depend upon river current for their forward motion, are built quite short, to maximize maneuverability. These kayaks rarely exceed eight feet in length, and some specialized boats such as playboats may be only six feet long. The design of recreational kayaks is an attempt to compromise between tracking and maneuverability, while keeping costs reasonable; their length generally ranges from nine to fourteen feet.
Rocker: Length alone does not fully predict the maneuverability of a kayak: a second design element is rocker: the curvature of the kayak from bow to stern. A heavily "rockered" boat has more lengthwise curvature than a boat with little or no rocker, meaning that the effective waterline of the rockered boat is less than for a kayak with no rocker. For example, an kayak with no rocker will be entirely in the water from end to end. In contrast, the bow and stern of an 18 footer with rocker will be out of the water, so its lengthwise waterline may be only . Rocker is generally most evident at the ends, and in moderation improves handling. Similarly, although a whitewater boat may only be a few feet shorter than many recreational kayaks, because the whitewater boat is heavily rockered its waterline is far shorter and its maneuverability far greater.
Hull form: Kayak hull designs are divided into categories based on the shape from bow to stern and on the shape of the hull in cross-section. Bow-to-stern shapes include:
- Symmetrical: the widest part of the boat is halfway between bow and stern.
- Fish form: the widest part is forward of the midpoint.
- Swede form: the widest part is aft (in back) of the midpoint.
The presence or absence of a V bottom at various points affects the kayak's tracking and maneuverability. A V tends to improve the kayak's ability to travel straight (track), but reduces the ease of turning. Most modern kayaks have steep Vee sections at the bow and stern, and a very shallow Vee amidships.
Beam profile: Hull shapes are categorized by the roundness (or flatness) of the bottom, whether the bottom comes to a "V" at various points on the hull, and by the presence, absence, and severity of a chine, where the side and bottom of a hull meet at an angle, creating another edge below the gunwales. This design choice determines the tradeoff between primary and secondary stability. The hull design determines the relative primary stability and secondary stability of a kayak, the resistance of the boat to tipping and to ultimate capsize, respectively.
Primary and secondary stability: Although every kayak will rock from side-to-side, wider kayaks with more buoyancy away from the centerline will present more resistance to tipping and thus feel less likely to capsize than a narrow one with less buoyancy away from the centerline. Flat-bottomed boats that push their volume away from the centerline will also feel more stable than rounded or V-shaped hull shapes that distribute buoyancy more evenly.
While flat-bottomed boats have more primary (sometimes called "initial") stability, and feel more stable to the beginner they usually have less secondary stability. Once they do begin to tip, they capsize quickly and suddenly. Rounder-bottomed boats are quite the opposite — having lower initial or primary stability and (usually) greater secondary stability. The chine in some boats increases secondary stability by effectively widening the beam of the boat when it is heeled (tipped).
Secondary stability refers to final stability, or additional resistance to capsizing as a kayak approaches capsizing. Rounder-bottomed boats present a greater cross-section to the water as they are tipped from level ("heeled"), while very flat-bottomed boats present less. Sea kayaks, designed for open water and rough conditions, are generally narrower (22-25 inches) and have more secondary stability than recreational kayaks, which are wider (26-30+ inches), have a flatter hull shape, and more primary stability. Kayaks with only moderate primary, but excellent secondary are, in general, considered more seaworthy, especially in challenging conditions.
Until recently, whitewater kayaks had very rounded and rockered hulls, but changes in design philosophy have led to whitewater kayaks with very flat planing hulls that allow them to surf on top of moving water rather than float in the water (displacement hull).
