Encyclopedia
Electrophilic aromatic substitution or EAS is an organic reaction in which an atom, usually hydrogen, appended to an aromatic system is replaced by an electrophile. The most important reactions of this type that take place are aromatic nitration, aromatic halogenation, aromatic sulfonation, and acylation and alkylating Friedel-Crafts reactions.
Basic reactions
Aromatic nitrations to form nitro compounds take place by generating a nitronium ion from nitric acid and sulfuric acid.
-
Aromatic sulfonation of benzene with fuming sulfuric acid gives benzenesulfonic acid.
-
Aromatic halogenation of benzene with bromine, chlorine or iodine gives the corresponding aryl halogen compounds catalyzed by the corresponding iron trihalide.
-
The Friedel-Crafts reaction exists as an acylation and an alkylation with as reactants acyl halides or alkyl halides.
-
The catalyst is most typically aluminium trichloride, but almost any strong Lewis acid can be used. In Fridel-Crafts acylation, a full measure of aluminium trichloride must be used, as opposed to a catalytic amount.
-
Other reactions
Basic reaction mechanism
In the first step of the reaction mechanism for this reaction, the electron-rich aromatic ring which in the simplest case is benzene attacks the electrophile A. This leads to the formation of a positively-charged cyclohexadienyl cation, also known as an arenium ion. This carbocation is unstable, owing both to the positive charge on the molecule and to the temporary loss of aromaticity. However, the cyclohexadienyl cation is partially stabilized by resonance, which allows the positive charge to be distributed over three carbon atoms.
-
In the second stage of the reaction, a Lewis base B donates electrons to the hydrogen atom at the point of electrophilic attack, and the electrons shared by the hydrogen return to the pi system, restoring aromaticity.
An electrophilic substitution reaction on benzene does not always result in monosubstitution. While electrophilic substituents usually withdraw electrons from the aromatic ring and thus deactivate it against further reaction, a sufficiently strong electrophile can perform a second or even a third substitution. This is especially the case with the use of catalysts.
Substituted aromatic rings
Electrophiles may attack aromatic rings with functional groups. Performing an electrophilic substitution on an already substituted benzene compound raises the problem of regioselectivity. In case of a monosubstituted benzene, there are 4 different reactive positions. For a monosubstituted benzene, the ring carbon atom bearing the substituent is position 1 or ipso, the next ring atom is position 2 or ortho, position 3 is meta and position 4 is para. Positions 5 and 6 are respectively equal to 3 and 2.
Substituents can generally be divided into two classes regarding electrophilic substitution: activating and deactivating towards the aromatic ring. Activating substituents or activating groups stabilize the cationic intermediate formed during the substitution by donating electrons into the ring system, by either inductive effect or resonance effects. Examples of activated aromatic rings are toluene, aniline and phenol.
The extra electron density delivered into the ring by the substituent is not equally divided over the entire ring, but is concentrated on atoms 2, 4 and 6 (the ortho and para positions). These positions are thus the most reactive towards an electron-poor electrophile. The highest electron density is located on both ortho positions, though this increased reactivity might be offset by steric hindrance between substituent and electrophile. The final result of the elecrophilic aromatic substitution might thus be hard to predict, and it is usually only established by doing the reaction and determining the ratio of ortho versus para substitution.
On the other hand, deactivating substituents destabilize the intermediate cation and thus decrease the reaction rate. They do so by withdrawing electron density from the aromatic ring, though the positions most affected are again the ortho and para ones. This means that the most reactive positions (or, least unreactive) are the meta ones (atoms 3 and 5). Examples of deactivated aromatic rings are nitrobenzene, benzaldehyde and trifluoromethylbenzene. The deactivation of the aromatic system also means that generally harsher conditions are required to drive the reaction to completion. An example of this is the nitration of toluene during the production of trinitrotoluene (TNT). While the first nitration, on the activated toluene ring, can be done at room temperature and with dilute acid, the second one, on the deactivated nitrotoluene ring, already needs prolonged heating and more concentrated acid, and the third one, on very strongly deactivated dinitrotoluene, has to be
done in boiling concentrated sulfuric acid.
Functional groups thus usually tend to favor one or two of these positions above the others; that is, they direct the electrophile to specific positions. A functional group that tends to direct attacking electrophiles to the meta position, for example, is said to be meta-directing.
Ortho/para directors
Groups with unshared pairs of electrons, such as the amino group of aniline, are strongly activating and ortho/para-directing. Such activating groups donate those unshared electrons to the pi system.
-
When the electrophile attacks the ortho and para positions of aniline, the nitrogen atom can donate electron density to the pi system (forming an iminium ion), giving four resonance structures (as opposed to three in the basic reaction). This substantially enhances the stability of the cationic intermediate.
-
Compare this with the case when the electrophile attacks the meta position. In that case, the nitrogen atom cannot donate electron density to the pi system, giving only three resonance contributors. For this reason, the meta-substituted product is produced in much smaller proportion to the ortho and para products.
-
Other substituents, such as the alkyl and aryl substituents, may also donate electron density to the pi system; however, since they lack an available unshared pair of electrons, their ability to do this is rather limited. Thus they only weakly activate the ring and do not strongly disfavor the meta position.
Halogens are ortho/para directors, since they possess an unshared pair of electrons just as nitrogen does. However, the stability this provides is offset by the fact that halogens are substantially more electronegative than carbon, and thus draw electron density away from the pi system. This destabilizes the cationic intermediate, and EAS occurs less readily. Halogens are therefore deactivating groups.
Directed ortho metalation is a special type of EAS with special ortho directors.
Meta directors
Non-halogen groups with atoms that are more electronegative than carbon, such as the nitro group (NO2) draw substantial electron density from the pi system. These groups are strongly deactivating groups. Additionally, since the substituted carbon is already electron-poor, the resonance contributor with a positive charge on this carbon (produced by ortho/para attack) is less stable than the others. Therefore, these electron-withdrawing groups are meta directors. -CF3, -CCl3, -CBr3, -CI3 are meta directors.
Ipso substitution
Ipso substitution a special case of electrophilic aromatic substitution where the leaving group is not hydrogen.
A classic example is the reaction of salicylic acid with a mixture of nitric and sulfuric acid to form picric acid. The nitration of the 2 position involves the loss of CO2 as the leaving group.
Desulfonation in which a sulfonyl group is substituted by a proton is a common example. See also Hayashi rearrangement.
In aromatics substituted by silicon, the silicon reacts by ipso substitution.
Five membered heterocyclic compounds
Furan, Thiophene, Pyrrole and their derivatives are all highly activated compared to benzene. These compounds all contain an atom with an unshared pair of electrons (oxygen, sulfur, or nitrogen) as a member of the aromatic ring, which substantially increases the stability of the cationic intermediate. Examples of electrophilic substitutions to pyrrole are the Pictet-Spengler reaction and the Bischler-Napieralski reaction.
Asymmetric electrophilic aromatic substitution

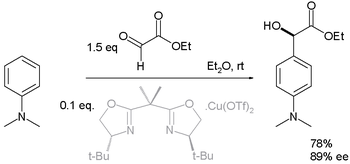

Electrophilic aromatic substitutions with prochiral carbon electrophiles have been adapted for asymmetric synthesis by switching to chiral lewis acid catalysts especially in friedel-Crafts type reactions. An early example concerns the addition of chloral to phenols catalyzed by aluminium chloride modified with (-)-menthol . A glyoxylate compound has been added to N,N-dimethylaniline with a chiral bisoxazoline ligand - copper(II) triflate catalyst system also in a Friedel-Crafts hydroxyalkylation :
-

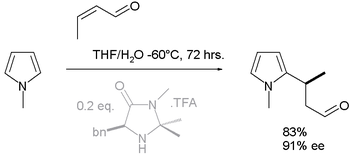

In another alkylation N-methylpryrrole reacts with crotonaldehyde catalyzed by trifluoroacetic acid modified with a chiral imidazolidinone :
-

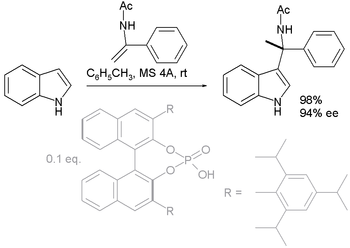

Indole reacts with an enamide catalyzed by a chiral BINOL derived phosphoric acid :
-
In all these reactions the chiral catalyst load is between 10 to 20% and a new chiral carbon center is formed with 80-90% ee.
