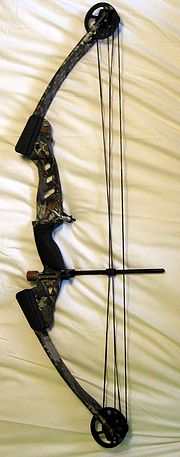

A compound bow is a modern bow

Bow (weapon)

The bow and arrow is a projectile weapon system that predates recorded history and is common to most cultures.-Description:A bow is a flexible arc that shoots aerodynamic projectiles by means of elastic energy. Essentially, the bow is a form of spring powered by a string or cord...

that uses a levering system, usually of cables and pulley

Pulley

A pulley, also called a sheave or a drum, is a mechanism composed of a wheel on an axle or shaft that may have a groove between two flanges around its circumference. A rope, cable, belt, or chain usually runs over the wheel and inside the groove, if present...

s, to bend the limbs.

The limbs of a compound bow are much stiffer than those of a recurve bow

Recurve bow

In archery, the shape of the bow is usually taken to be the view from the side. It is the product of the complex relationship of material stresses, designed by a bowyer...

or longbow

Longbow

A longbow is a type of bow that is tall ; this will allow its user a fairly long draw, at least to the jaw....

. This limb stiffness makes the compound bow more energy-efficient than other bows, in conjunction with the pulley/cams. The compound bow has its string applied to pulleys (cams), and one or both of the pulleys have one or more cables attached to the opposite limb. When the string is drawn back, the string causes the pulleys to turn. When the draw commences, the archer has reduced mechanical advantage, but during the draw, as the pulley cams rotate, and the archer gains mechanical advantage over the bending limbs, more energy is stored, in comparison to other bows.

The use of this levering system gives the compound bow a characteristic draw-force curve which rises to a peak weight and then "lets off" to a lower holding weight.

The compound bow is little-affected by changes in temperature and humidity and it gives superior accuracy, velocity, and distance in comparison to other bows. The compound bow was first developed in 1966 by Holless Wilbur Allen

Holless Wilbur Allen

Holless Wilbur Allen, Jr. was the inventor of the compound bow.Inventor. H. W. Allen, Jr. revolutionized the archery industry worldwide with the invention and patent of the compound bow in the 1960's....

in Missouri

Missouri

Missouri is a US state located in the Midwestern United States, bordered by Iowa, Illinois, Kentucky, Tennessee, Arkansas, Oklahoma, Kansas and Nebraska. With a 2010 population of 5,988,927, Missouri is the 18th most populous state in the nation and the fifth most populous in the Midwest. It...

, and a US patent was granted in 1969. The compound bow has become increasingly popular. In the United States, the compound is the dominant form of bow.

In literature of the early 20th century, composite bow

Composite bow

A composite bow is a bow made from horn, wood, and sinew laminated together. The horn is on the belly, facing the archer, and sinew on the back of a wooden core. Sinew and horn will store more energy than wood for the same length of bow...

s have been described as "compound".

Construction of compound bow

A bow's central mount for other components such as the limbs, sights, stabilizers and quivers is called the riser. Risers are designed to be as rigid as possible. The central riser of a compound bow is usually made of aluminium

Aluminium

Aluminium or aluminum is a silvery white member of the boron group of chemical elements. It has the symbol Al, and its atomic number is 13. It is not soluble in water under normal circumstances....

or magnesium

Magnesium

Magnesium is a chemical element with the symbol Mg, atomic number 12, and common oxidation number +2. It is an alkaline earth metal and the eighth most abundant element in the Earth's crust and ninth in the known universe as a whole...

alloy, and many are made of the aircraft-grade 6061 aluminium alloy.

Limbs are made of composite material

Composite material

Composite materials, often shortened to composites or called composition materials, are engineered or naturally occurring materials made from two or more constituent materials with significantly different physical or chemical properties which remain separate and distinct at the macroscopic or...

s and are capable of taking high tensile and compressive forces. The limbs store all the energy of the bow — no energy is stored in the pulleys and cables. A draw weight can consist of 30 to 100 pounds creating speeds of 150 to 370 feet per second (46 to 113 m/s)

In the most common configuration, there is a cam

Cam

A cam is a rotating or sliding piece in a mechanical linkage used especially in transforming rotary motion into linear motion or vice-versa. It is often a part of a rotating wheel or shaft that strikes a lever at one or more points on its circular path...

or wheel

Wheel

A wheel is a device that allows heavy objects to be moved easily through rotating on an axle through its center, facilitating movement or transportation while supporting a load, or performing labor in machines. Common examples found in transport applications. A wheel, together with an axle,...

at the end of each limb. The shape of the cam may vary somewhat between different bow designs. There are several different concepts of utilizing the cams to store energy in the limbs, and these all fall under a category called bow eccentrics. The four most common types of bow eccentrics are Single Cam, Hybrid Cam, Dual Cam and Binary Cam

Binary cam

The binary cam is a design for the pulley system of a compound bow. Craig Yehle, director of research and development at Bowtech Archery, received a patent for the design on December 11, 2007...

. However, there are also other less common designs, like the Quad Cam and Hinged. The "let off" is a term that describes what happens as the cam rolls all the way over. This can be seen in the close-up picture, full draw, the archer has the 'long side' of the cam. Compare to the main picture, the cams present the 'short side' to the archer. 'Let off' is therefore essentially the archer's changing leverage from a short lever to a long lever.

As the bow is drawn, the draw weight increases to a peak and then "lets off" a certain percentage of the peak draw weight before a stop (known as "the wall") prevents the bow from being drawn further. The let-off is commonly between 65% and 80% of the peak weight for recently designed compound bows, although some older compound bows only provided a let off of 50% and some of the most recent designs achieve let offs in excess of 90%.

The photo on the right shows the axle attaching the limb to cam is mounted at the edge of the cam as opposed to the center. As the string is drawn the cam turns and imparts force to compress the limb. Initially, the archer has the 'short' side of the cam, with the leverage being a mechanical disadvantage. High energy input is therefore required. When near full draw is reached, the cam has turned to its full extent, the archer has gained mechanical advantage, and the least amount of force needs to be applied to the string to keep the limbs bent. This is known as "let off". The lower holding weight enables the archer to maintain the bow fully drawn and take more time to aim. This let-off enables the archer to accurately shoot a the compound bow with a much higher peak draw weight than other bows (see below).

One manufacturer, Concept Archery, is known for producing a compound bow with 99% let-off. Although it's quite unsafe to do so, such a bow can be drawn pointed at the ground, and the mere weight of the bow will keep it drawn even if the grip is released and the bow is hung by the string (although extreme caution must be exercised to avoid accidentally disturbing the bow out of the let-off zone before establishing a firm grip on the string and the foregrip). On the other hand, there are quite a few youth-oriented compound bows with low draw weights that feature no let-off with the maximum draw length deliberately set farther than the majority of young shooters would reach. This effectively makes the bow function very similar to a recurve, with the draw length determined by the shooter's preferred anchor point, but it also removes the necessity to adjust the draw length or purchase a new bow as the shooter grows up.

Compound bow string

Bow string

A bow string joins the two ends of the bow stave and launches the arrow. Desirable properties include light weight, strength, resistance to abrasion, and resistance to water...

s and cables are normally made of high-modulus polyethylene

Ultra high molecular weight polyethylene

Ultra-high-molecular-weight polyethylene , also known as high-modulus polyethylene or high-performance polyethylene , is a subset of the thermoplastic polyethylene. It has extremely long chains, with molecular weight numbering in the millions, usually between 2 and 6 million...

and are designed to have great tensile strength and minimal stretchability, in order that the bow transfers its energy to the arrow as efficiently and durably as possible. In earlier models of compound bows, the cables were often made of plastic-coated steel.

Technical advantages

The function of the cam systems (known as the 'eccentrics') is to maximize the energy storage throughout the draw cycle and provide let-off at the end of the cycle (less holding weight at full draw). A traditional recurve bow has a very linear draw weight curve - meaning that as the bow is drawn back, the draw force becomes increasingly heavier with each inch of draw (and most difficult at full draw). Therefore, little energy is stored in the first half of the draw, and much more energy at the end where the draw weight is heaviest. The compound bow operates with a very different weight profile, reaching its peak weight within the first few inches of the draw, and remaining more flat and constant until the end of the cycle where the cams "let-off" and allow a reduced holding weight. This manipulation of the peak weight throughout the draw (accomplished by the elliptical shape of the cams that change leverage and mechanical advantage) is why compound bows store more energy and shoot faster than an equivalent peak weight recurve bow
Recurve bow
In archery, the shape of the bow is usually taken to be the view from the side. It is the product of the complex relationship of material stresses, designed by a bowyer...

or longbow
Longbow
A longbow is a type of bow that is tall ; this will allow its user a fairly long draw, at least to the jaw....

.
The design of the cams directly controls the acceleration of the arrow. What is termed a "soft cam" will accelerate the arrow more gently than a "harder" cam. Novice archers will typically shoot a soft cam whereas a more advanced archer may choose to use a harder cam to gain speed. Bows can be had with a variety of cams, in a full spectrum from soft to hard.
Some pulley systems use a single cam at the bottom of the bow and a balanced wheel at the top of the bow instead of two identical cams. This design eliminates the need for buss cables and instead uses a single string that begins at the cam on the bottom of the bow, travels over the wheel on top, around the bottom cam again, and ends attaching to the top limb.
When a compound bow is drawn, the limbs are pulled in toward each other, by the buss cables, unlike a longbow or recurve where the limbs flex in the direction of the bow string. This difference allows modern compounds to have limbs that are horizontal instead of angled. The horizontal limb configuration minimizes the amount of recoil and vibration felt by the shooter when the arrow is released.
The bow is resistant to temperature and humidity changes giving the bow superior accuracy, velocity, and distance in comparison to bows made of natural materials.
The pulley system usually will include some rubber-covered blocks that act as draw-stops. These provide a solid "wall" that the archer can draw against. These draw stops can be adjusted to suit the archer's optimum draw-length. This helps the archer achieve a consistent anchor point and a consistent amount of force imparted to the arrow on every shot, further increasing accuracy.

Technical disadvantages

The relatively large number of moving parts requires additional maintenance and creates more points of failure.
Although no bows are warranted to survive a dry fire
Dry fire
Dry firing is the practice of "firing" a firearm without ammunition. That is, to pull the trigger and allow the hammer or striker to drop on an empty chamber....

, it's not unusual for numerous parts to be damaged or destroyed after even a single compound dry fire.
Unlike most recurve bows, replacing the string or making adjustments to let-off or draw length often requires a bow press or a trip to an archery pro shop that has one.
In some compound bow models, adjusting draw length or let-off weight percentage requires replacing cams or other parts along with a bow press to do so. This makes selling and buying certain used compound bows more difficult due to considerable extra expense needed to adjust a bow that doesn't already match the new shooter's exact preference (Mathews brand bows are particularly notorious for this due to draw length that is either completely fixed or only allows up to 1" of downward adjustment before a new cam is necessary).

Circumstantial advantages

Compound archers usually use a mechanical release aid to hold and release the string. This attaches to the bowstring near the point where the arrow attaches,the nocking point, and permits the archer to release the string with a squeeze of a trigger or a slight increase of tension. The use of a release aid gives a more consistent release than the use of fingers on the string.
In tournaments, compound archers usually equip their bows with a sighting system. Some sights are magnifying and/or adjustable for targets at different distances. Some sights have multiple "pins" set up for targets at different distances.
Stabilisers and dampers are particularly well-developed for the compound bow. They allow the archer to hold more steady at full draw, and reduce movement of the bow as the arrow is released.

Circumstantial disadvantages

The relatively low holding weight of a compound bow compared to a recurve bow makes the compound more sensitive to certain shooting form faults when the archer is at full draw. In particular, it's easier for the archer to torque(twist) the bow around the vertical axis, leading to left-right errors, and also a plucked or snatched release can have more effect.

Quantities describing compound bows

AMO standard draw length is the distance from the string at full draw to the lowest point on the grip plus 1.75 inches / 4.45 cm. Because the draw force may increase more or less rapidly, and again drop off more or less rapidly when approaching peak draw, bows of the same peak draw force can store different amounts of energy. Norbert Mullaney has defined the ratio of stored energy to peak draw force (S.E./P.D.F.). This is usually around one foot-pound-force per pound

Pound (mass)

The pound or pound-mass is a unit of mass used in the Imperial, United States customary and other systems of measurement...

/ 3 joules per kilogram but can reach 1.4 ft·lbf/lb / 4.2 J/kg.

Efficiency of the bows also varies. Normally between 70-85% of the stored energy is transferred to the arrow. This stored energy is referred to as potential energy

Potential energy

In physics, potential energy is the energy stored in a body or in a system due to its position in a force field or due to its configuration. The SI unit of measure for energy and work is the Joule...

. When transferred to the arrow it is referred to as kinetic energy

Kinetic energy

The kinetic energy of an object is the energy which it possesses due to its motion.It is defined as the work needed to accelerate a body of a given mass from rest to its stated velocity. Having gained this energy during its acceleration, the body maintains this kinetic energy unless its speed changes...

. The product of S.E./P.D.F. and efficiency can be called power factor. There are two measurement standards of this quantity, AMO and IBO speed. AMO is defined as the initial velocity of a 35 g / 540 grain arrow when shot from a bow with a peak draw weight of 270 N / 60 lbf and draw length 76 cm / 30 inches. IBO speed is defined as the initial velocity of a 22.7 g / 350 grain arrow shot from a bow with a peak draw weight of 300 N / 70 lbf and a draw length of 76 cm / 30 inches.

Brace height is the distance from the deepest point of the grip to the string at rest. Typically a shorter brace height will result in an increased power stroke, but comes at the price of a bow that's less forgiving to shooter error and having harsher string slap.

Arrows used

Arrows used with compound bows differ significantly from arrows shot from recurve bows. Recurve bows can safely use wooden shafted arrows, or, alternatively, heavy aluminum shafted arrows, requiring in any case that arrows with more mass be used with recurve bows than with compound bows to avoid damaging recurve bows from experiencing problems from dry-firing the bow.

In contrast, shafts of arrows used with compound bows are usually made of an aluminium

Aluminium

Aluminium or aluminum is a silvery white member of the boron group of chemical elements. It has the symbol Al, and its atomic number is 13. It is not soluble in water under normal circumstances....

alloy, or carbon

Carbon

Carbon is the chemical element with symbol C and atomic number 6. As a member of group 14 on the periodic table, it is nonmetallic and tetravalent—making four electrons available to form covalent chemical bonds...

composite material, or a combination of these materials, and are lighter than arrows intended for use with recurve bows, thereby increasing arrow flight speed for compound bows than possible with similar draw weight recurve bows. Due to the greater forces that a compound bow places on an arrow than a recurve bow, wooden arrows may break when shot from a compound bow, possibly driving a broken arrow shaft into an archer's arm, or the arrow may shatter because of the higher acceleration forces applied to it during release. Hence, wooden arrows, that would be entirely safe with a recurve bow, are inherently dangerous to use with a compound bow. Likewise, lighter weight arrows of aluminum or carbon composite materials, that would be safe to use with a compound bow, are unsafe to use with a recurve bow.

Manufacturers thus produce arrow shafts with different weights (mass), and different stiffnesses (known as spine, more arrow stiffness implying more spine) to be consistent with a bow's draw weight. Manufacturers also manufacture arrows of different lengths in the same model of shaft to accommodate different draw lengths, matched to archers' different length arms (sometimes termed wingspan).

Arrow stiffness (spine) is an important parameter in finding arrows that will shoot accurately from any particular bow (see Archer's paradox

Archer's paradox

The term archer's paradox was coined by Robert P. Elmer in the 1930s. The paradox refers to the phenomenon that in order to strike the center of the target, the arrow must be pointed slightly to the side of the target...
