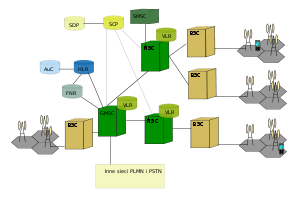

A cellular network is a radio
Radio
Radio is the transmission of signals through free space by modulation of electromagnetic waves with frequencies below those of visible light. Electromagnetic radiation travels by means of oscillating electromagnetic fields that pass through the air and the vacuum of space...

 network distributed over land areas called cells, each served by at least one fixed-location transceiver
Transceiver
A transceiver is a device comprising both a transmitter and a receiver which are combined and share common circuitry or a single housing. When no circuitry is common between transmit and receive functions, the device is a transmitter-receiver. The term originated in the early 1920s...

 known as a cell site
Cell site
A cell site is a term used to describe a site where antennas and electronic communications equipment are placed, usually on a radio mast, tower or other high place, to create a cell in a cellular network...

 or base station
Base station
The term base station can be used in the context of land surveying and wireless communications.- Land surveying :In the context of external land surveying, a base station is a GPS receiver at an accurately-known fixed location which is used to derive correction information for nearby portable GPS...

. When joined together these cells provide radio coverage over a wide geographic area. This enables a large number of portable transceivers (e.g., mobile phone
Mobile phone
A mobile phone is a device which can make and receive telephone calls over a radio link whilst moving around a wide geographic area. It does so by connecting to a cellular network provided by a mobile network operator...

s, pager
Pager
A pager is a simple personal telecommunications device for short messages. A one-way numeric pager can only receive a message consisting of a few digits, typically a phone number that the user is then requested to call...

s, etc.) to communicate with each other and with fixed transceivers and telephones anywhere in the network, via base stations, even if some of the transceivers are moving through more than one cell during transmission.

Cellular networks offer a number of advantages over alternative solutions:
  • increased capacity
  • reduced power use
  • larger coverage area
  • reduced interference from other signals


An example of a simple non-telephone cellular system is an old taxi
Taxicab
A taxicab, also taxi or cab, is a type of vehicle for hire with a driver, used by a single passenger or small group of passengers, often for a non-shared ride. A taxicab conveys passengers between locations of their choice...

 driver's radio system where the taxi company has several transmitters based around a city that can communicate directly with each taxi.

In a cellular radio system, a land area to be supplied with radio service is divided into regular shaped cells, which can be hexagonal, square, circular or some other irregular shapes, although hexagonal cells are conventional.
Discussion
Ask a question about 'Cellular network'
Start a new discussion about 'Cellular network'
Answer questions from other users
Full Discussion Forum

Unanswered Questions
Encyclopedia

A cellular network is a radio
Radio
Radio is the transmission of signals through free space by modulation of electromagnetic waves with frequencies below those of visible light. Electromagnetic radiation travels by means of oscillating electromagnetic fields that pass through the air and the vacuum of space...

 network distributed over land areas called cells, each served by at least one fixed-location transceiver
Transceiver
A transceiver is a device comprising both a transmitter and a receiver which are combined and share common circuitry or a single housing. When no circuitry is common between transmit and receive functions, the device is a transmitter-receiver. The term originated in the early 1920s...

 known as a cell site
Cell site
A cell site is a term used to describe a site where antennas and electronic communications equipment are placed, usually on a radio mast, tower or other high place, to create a cell in a cellular network...

 or base station
Base station
The term base station can be used in the context of land surveying and wireless communications.- Land surveying :In the context of external land surveying, a base station is a GPS receiver at an accurately-known fixed location which is used to derive correction information for nearby portable GPS...

. When joined together these cells provide radio coverage over a wide geographic area. This enables a large number of portable transceivers (e.g., mobile phone
Mobile phone
A mobile phone is a device which can make and receive telephone calls over a radio link whilst moving around a wide geographic area. It does so by connecting to a cellular network provided by a mobile network operator...

s, pager
Pager
A pager is a simple personal telecommunications device for short messages. A one-way numeric pager can only receive a message consisting of a few digits, typically a phone number that the user is then requested to call...

s, etc.) to communicate with each other and with fixed transceivers and telephones anywhere in the network, via base stations, even if some of the transceivers are moving through more than one cell during transmission.

Cellular networks offer a number of advantages over alternative solutions:
  • increased capacity
  • reduced power use
  • larger coverage area
  • reduced interference from other signals


An example of a simple non-telephone cellular system is an old taxi
Taxicab
A taxicab, also taxi or cab, is a type of vehicle for hire with a driver, used by a single passenger or small group of passengers, often for a non-shared ride. A taxicab conveys passengers between locations of their choice...

 driver's radio system where the taxi company has several transmitters based around a city that can communicate directly with each taxi.

The concept


In a cellular radio system, a land area to be supplied with radio service is divided into regular shaped cells, which can be hexagonal, square, circular or some other irregular shapes, although hexagonal cells are conventional. Each of these cells is assigned
multiple frequencies (f1 - f6) which have corresponding radio base station
Radio Base Station
Radio Base Station is the commercial name given to the family of Base Stations developed by Ericsson.Over the years every Mobile Telephony Base Station developed by the multinational has been sold with this name, although the concept of Radio Base is that of a transceiver that is primarily...

s. The group of frequencies can be reused in other cells, provided that the same frequencies are not reused in adjacent neighboring cells as that would cause co-channel interference
Co-channel interference
Co-channel interference or CCI is crosstalk from two different radio transmitters using the same frequency. There can be several causes of co-channel radio interference; four examples are listed here....

.

The increased capacity
Channel capacity
In electrical engineering, computer science and information theory, channel capacity is the tightest upper bound on the amount of information that can be reliably transmitted over a communications channel...

 in a cellular network, compared with a network with a single transmitter, comes from the fact that the same radio frequency can be reused in a different area for a completely different transmission. If there is a single plain transmitter, only one transmission can be used on any given frequency. Unfortunately, there is inevitably some level of interference
Co-channel interference
Co-channel interference or CCI is crosstalk from two different radio transmitters using the same frequency. There can be several causes of co-channel radio interference; four examples are listed here....

 from the signal from the other cells which use the same frequency. This means that, in a standard FDMA system, there must be at least a one cell gap between cells which reuse the same frequency.

In the simple case of the taxi company, each radio had a manually operated channel selector knob to tune to different frequencies. As the drivers moved around, they would change from channel to channel. The drivers knew which frequency
Frequency
Frequency is the number of occurrences of a repeating event per unit time. It is also referred to as temporal frequency.The period is the duration of one cycle in a repeating event, so the period is the reciprocal of the frequency...

 covered approximately what area. When they did not receive a signal from the transmitter, they would try other channels until they found one that worked. The taxi drivers would only speak one at a time, when invited by the base station operator (in a sense TDMA
Time division multiple access
Time division multiple access is a channel access method for shared medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots. The users transmit in rapid succession, one after the other, each using its own time slot. This...

).

Cell signal encoding


To distinguish signals from several different transmitters, frequency division multiple access (FDMA) and code division multiple access
Code division multiple access
Code division multiple access is a channel access method used by various radio communication technologies. It should not be confused with the mobile phone standards called cdmaOne, CDMA2000 and WCDMA , which are often referred to as simply CDMA, and use CDMA as an underlying channel access...

 (CDMA) were developed.

With FDMA, the transmitting and receiving frequencies used in each cell are different from the frequencies used in each neighbouring cell. In a simple taxi system, the taxi driver manually tuned to a frequency of a chosen cell to obtain a strong signal and to avoid interference from signals from other cells.

The principle of CDMA is more complex, but achieves the same result; the distributed transceiver
Transceiver
A transceiver is a device comprising both a transmitter and a receiver which are combined and share common circuitry or a single housing. When no circuitry is common between transmit and receive functions, the device is a transmitter-receiver. The term originated in the early 1920s...

s can select one cell and listen to it.

Other available methods of multiplexing such as polarization division multiple access (PDMA) and time division multiple access
Time division multiple access
Time division multiple access is a channel access method for shared medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots. The users transmit in rapid succession, one after the other, each using its own time slot. This...

 (TDMA) cannot be used to separate signals from one cell to the next since the effects of both vary with position and this would make signal separation practically impossible. Time division multiple access
Time division multiple access
Time division multiple access is a channel access method for shared medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots. The users transmit in rapid succession, one after the other, each using its own time slot. This...

, however, is used in combination with either FDMA or CDMA in a number of systems to give multiple channels within the coverage area of a single cell.

Frequency reuse


The key characteristic of a cellular network is the ability to re-use frequencies to increase both coverage and capacity. As described above, adjacent cells must use different frequencies, however there is no problem with two cells sufficiently far apart operating on the same frequency. The elements that determine frequency reuse are the reuse distance and the reuse factor.

The reuse distance, D is calculated as


where R is the cell radius and N is the number of cells per cluster. Cells may vary in radius in the ranges (1 km to 30 km). The boundaries of the cells can also overlap between adjacent cells and large cells can be divided into smaller cells

The frequency reuse factor is the rate at which the same frequency can be used in the network. It is 1/K (or K according to some books) where K is the number of cells which cannot use the same frequencies for transmission. Common values for the frequency reuse factor are 1/3, 1/4, 1/7, 1/9 and 1/12 (or 3, 4, 7, 9 and 12 depending on notation).

In case of N sector antennas on the same base station site, each with different direction, the base station site can serve N different sectors. N is typically 3. A reuse pattern of N/K denotes a further division in frequency among N sector antennas per site. Some current and historical reuse patterns are 3/7 (North American AMPS), 6/4 (Motorola NAMPS), and 3/4 (GSM).

If the total available bandwidth is B, each cell can only use a number of frequency channels corresponding to a bandwidth of B/K, and each sector can use a bandwidth of B/NK.

Code division multiple access
Code division multiple access
Code division multiple access is a channel access method used by various radio communication technologies. It should not be confused with the mobile phone standards called cdmaOne, CDMA2000 and WCDMA , which are often referred to as simply CDMA, and use CDMA as an underlying channel access...

-based systems use a wider frequency band to achieve the same rate of transmission as FDMA, but this is compensated for by the ability to use a frequency reuse factor of 1, for example using a reuse pattern of 1/1. In other words, adjacent base station sites use the same frequencies, and the different base stations and users are separated by codes rather than frequencies. While N is shown as 1 in this example, that does not mean the CDMA cell has only one sector, but rather that the entire cell bandwidth is also available to each sector individually.

Depending on the size of the city, a taxi system may not have any frequency-reuse in its own city, but certainly in other nearby cities, the same frequency can be used. In a big city, on the other hand, frequency-reuse could certainly be in use.

Recently also orthogonal frequency-division multiple access based systems such as LTE
3GPP Long Term Evolution
3GPP Long Term Evolution, usually referred to as LTE, is a standard for wireless communication of high-speed data for mobile phones and data terminals. It is based on the GSM/EDGE and UMTS/HSPA network technologies, increasing the capacity and speed using new modulation techniques...

 are being deployed with a frequency reuse of 1. Since such systems do not spread the signal across the frequency band,
inter-cell radio resource management is important to coordinates resource allocation between different cell sites and to limit the inter-cell interference. There are various means of Inter-cell Interference Coordination (ICIC) already defined in the standard. Coordinated scheduling, multi-site MIMO or multi-site beam forming are other examples for inter-cell radio resource management that might be standardized in the future.

Directional antennas

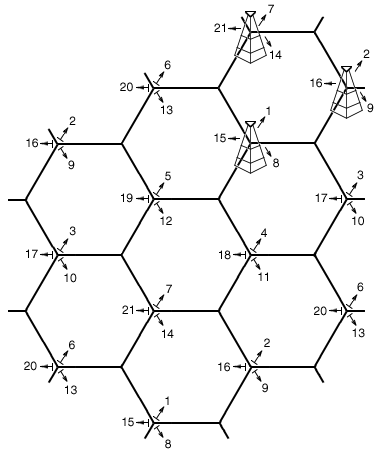

Although the original 2-way-radio cell towers were at the centers of the cells and were omni-directional, a cellular map can be redrawn with the cellular telephone towers located at the corners of the hexagons where three cells converge. Each tower has three sets of directional antennas aimed in three different directions with 120 degrees for each cell (totaling 360 degrees) and receiving/transmitting into three different cells at different frequencies. This provides a minimum of three channels (from three towers) for each cell. The numbers in the illustration are channel numbers, which repeat every 3 cells. Large cells can be subdivided into smaller cells for high volume areas.

Broadcast messages and paging


Practically every cellular system has some kind of broadcast mechanism. This can be used directly for distributing information to multiple mobiles, commonly, for example in mobile telephony
Mobile phone
A mobile phone is a device which can make and receive telephone calls over a radio link whilst moving around a wide geographic area. It does so by connecting to a cellular network provided by a mobile network operator...

 systems, the most important use of broadcast information is to set up channels for one to one communication between the mobile transceiver and the base station. This is called paging.

The details of the process of paging vary somewhat from network to network, but normally we know a limited number of cells where the phone is located (this group of cells is called a Location Area in the GSM or UMTS system, or Routing Area if a data packet session is involved). Paging takes place by sending the broadcast message to all of those cells. Paging messages can be used for information transfer. This happens in pagers, in CDMA systems for sending SMS
Short message service
Short Message Service is a text messaging service component of phone, web, or mobile communication systems, using standardized communications protocols that allow the exchange of short text messages between fixed line or mobile phone devices...

 messages, and in the UMTS system where it allows for low downlink latency in packet-based connections.

Movement from cell to cell and handover


In a primitive taxi system, when the taxi moved away from a first tower and closer to a second tower, the taxi driver manually switched from one frequency to another as needed. If a communication was interrupted due to a loss of a signal, the taxi driver asked the base station operator to repeat the message on a different frequency.

In a cellular system, as the distributed mobile transceivers move from cell to cell during an ongoing continuous communication, switching from one cell frequency to a different cell frequency is done electronically without interruption and without a base station operator or manual switching. This is called the handover or handoff. Typically, a new channel is automatically selected for the mobile unit on the new base station which will serve it. The mobile unit then automatically switches from the current channel to the new channel and communication continues.

The exact details of the mobile system's move from one base station to the other varies considerably from system to system (see the example below for how a mobile phone network manages handover).

Example of a cellular network: the mobile phone network



The most common example of a cellular network is a mobile phone
Mobile phone
A mobile phone is a device which can make and receive telephone calls over a radio link whilst moving around a wide geographic area. It does so by connecting to a cellular network provided by a mobile network operator...

 (cell phone) network. A mobile phone is a portable telephone
Telephone
The telephone , colloquially referred to as a phone, is a telecommunications device that transmits and receives sounds, usually the human voice. Telephones are a point-to-point communication system whose most basic function is to allow two people separated by large distances to talk to each other...

 which receives or makes calls through a cell site
Cell site
A cell site is a term used to describe a site where antennas and electronic communications equipment are placed, usually on a radio mast, tower or other high place, to create a cell in a cellular network...

 (base station), or transmitting tower. Radio wave
Radio Wave
Radio Wave may refer to:*Radio frequency*Radio Wave 96.5, a radio station in Blackpool, UK...

s are used to transfer signals to and from the cell phone.

Modern mobile phone networks use cells because radio frequencies are a limited, shared resource. Cell-sites and handsets change frequency under computer control and use low power transmitters so that a limited number of radio frequencies can be simultaneously used by many callers with less interference.

A cellular network is used by the mobile phone operator to achieve both coverage and capacity for their subscribers. Large geographic areas are split into smaller cells to avoid line-of-sight signal loss and to support a large number of active phones in that area. All of the cell sites are connected to telephone exchange
Telephone exchange
In the field of telecommunications, a telephone exchange or telephone switch is a system of electronic components that connects telephone calls...

s (or switches) , which in turn connect to the public telephone network
Public switched telephone network
The public switched telephone network is the network of the world's public circuit-switched telephone networks. It consists of telephone lines, fiber optic cables, microwave transmission links, cellular networks, communications satellites, and undersea telephone cables, all inter-connected by...

.

In cities, each cell site may have a range of up to approximately ½ mile, while in rural areas, the range could be as much as 5 miles. It is possible that in clear open areas, a user may receive signals from a cell site 25 miles away.

Since almost all mobile phones use cellular technology, including GSM
Global System for Mobile Communications
GSM , is a standard set developed by the European Telecommunications Standards Institute to describe technologies for second generation digital cellular networks...

, CDMA, and AMPS
Advanced Mobile Phone System
Advanced Mobile Phone System was an analog mobile phone system standard developed by Bell Labs, and officially introduced in the Americas in 1983, Israel in 1986, and Australia in 1987. It was the primary analog mobile phone system in North America through the 1980s and into the 2000s...

 (analog), the term "cell phone" is in some regions, notably the US, used interchangeably with "mobile phone". However, satellite phone
Satellite phone
A satellite telephone, satellite phone, or satphone is a type of mobile phone that connects to orbiting satellites instead of terrestrial cell sites...

s are mobile phones that do not communicate directly with a ground-based cellular tower, but may do so indirectly by way of a satellite.

There are a number of different digital cellular technologies, including: Global System for Mobile Communications
Global System for Mobile Communications
GSM , is a standard set developed by the European Telecommunications Standards Institute to describe technologies for second generation digital cellular networks...

 (GSM), General Packet Radio Service
General Packet Radio Service
General packet radio service is a packet oriented mobile data service on the 2G and 3G cellular communication system's global system for mobile communications . GPRS was originally standardized by European Telecommunications Standards Institute in response to the earlier CDPD and i-mode...

 (GPRS), Code Division Multiple Access
CDMA2000
CDMA2000 is a family of 3G mobile technology standards, which use CDMA channel access, to send voice, data, and signaling data between mobile phones and cell sites. The set of standards includes: CDMA2000 1X, CDMA2000 EV-DO Rev. 0, CDMA2000 EV-DO Rev. A, and CDMA2000 EV-DO Rev. B...

 (CDMA), Evolution-Data Optimized
Evolution-Data Optimized
 Evolution-Data Optimized or Evolution-Data only is a telecommunications standard for the wireless transmission of data through radio signals, typically for broadband Internet access...

 (EV-DO), Enhanced Data Rates for GSM Evolution
Enhanced Data Rates for GSM Evolution
Enhanced Data rates for GSM Evolution is a digital mobile phone technology that allows improved data transmission rates as a backward-compatible extension of GSM...

 (EDGE), 3GSM, Digital Enhanced Cordless Telecommunications
Digital Enhanced Cordless Telecommunications
Digital Enhanced Cordless Telecommunications , usually known by the acronym DECT, is a digital communication standard, which is primarily used for creating cordless phone systems...

 (DECT), Digital AMPS
Digital AMPS
IS-54 and IS-136 are second-generation mobile phone systems, known as Digital AMPS . It was once prevalent throughout the Americas, particularly in the United States and Canada. D-AMPS is considered end-of-life, and existing networks have mostly been replaced by GSM/GPRS or CDMA2000...

 (IS-136/TDMA), and Integrated Digital Enhanced Network
Integrated Digital Enhanced Network
Integrated Digital Enhanced Network is a mobile telecommunications technology, developed by Motorola, which provides its users the benefits of a trunked radio and a cellular telephone...

 (iDEN).

Structure of the mobile phone cellular network


A simple view of the cellular mobile-radio network consists of the following:
  • A network of Radio base station
    Radio Base Station
    Radio Base Station is the commercial name given to the family of Base Stations developed by Ericsson.Over the years every Mobile Telephony Base Station developed by the multinational has been sold with this name, although the concept of Radio Base is that of a transceiver that is primarily...

    s forming the Base station subsystem
    Base Station Subsystem
    The base station subsystem is the section of a traditional cellular telephone network which is responsible for handling traffic and signaling between a mobile phone and the network switching subsystem...

    .
  • The core circuit switched network
    Network Switching Subsystem
    Network switching subsystem is the component of a GSM system that carries out call switching and mobility management functions for mobile phones roaming on the network of base stations...

     for handling voice calls and text
  • A packet switched network for handling mobile data
  • The Public switched telephone network
    Public switched telephone network
    The public switched telephone network is the network of the world's public circuit-switched telephone networks. It consists of telephone lines, fiber optic cables, microwave transmission links, cellular networks, communications satellites, and undersea telephone cables, all inter-connected by...

     to connect subscribers to the wider telephony network


This network is the foundation of the GSM system network. There are many functions that are performed by this network in order to make sure customers get the desired service including mobility management, registration, call set up, and handover.

Any phone connects to the network via an RBS (Radio Base Station
Radio Base Station
Radio Base Station is the commercial name given to the family of Base Stations developed by Ericsson.Over the years every Mobile Telephony Base Station developed by the multinational has been sold with this name, although the concept of Radio Base is that of a transceiver that is primarily...

) at a corner of the corresponding cell which in turn connects to the Mobile switching center (MSC). The MSC provides a connection to the public switched telephone network
Public switched telephone network
The public switched telephone network is the network of the world's public circuit-switched telephone networks. It consists of telephone lines, fiber optic cables, microwave transmission links, cellular networks, communications satellites, and undersea telephone cables, all inter-connected by...

 (PSTN). The link from a phone to the RBS is called an uplink while the other way is termed downlink.

Radio channels effectively use the transmission medium through the use of the following multiplexing schemes: frequency division multiplex (FDM), time division multiplex (TDM), code division multiplex (CDM), and space division multiplex (SDM).
Corresponding to these multiplexing schemes are the following access techniques: frequency division multiple access (FDMA), time division multiple access
Time division multiple access
Time division multiple access is a channel access method for shared medium networks. It allows several users to share the same frequency channel by dividing the signal into different time slots. The users transmit in rapid succession, one after the other, each using its own time slot. This...

 (TDMA), code division multiple access
Code division multiple access
Code division multiple access is a channel access method used by various radio communication technologies. It should not be confused with the mobile phone standards called cdmaOne, CDMA2000 and WCDMA , which are often referred to as simply CDMA, and use CDMA as an underlying channel access...

 (CDMA),
and space division multiple access (SDMA).

Cellular handover in mobile phone networks



As the phone user moves from one cell area to another cell whilst a call is in progress, the mobile station will search for a new channel to attach to in order not to drop the call. Once a new channel is found, the network will command the mobile unit to switch to the new channel and at the same time switch the call onto the new channel.

With CDMA, multiple CDMA handsets share a specific radio channel. The signals are separated by using a pseudonoise
Pseudorandom noise
In cryptography, pseudorandom noise is a signal similar to noise which satisfies one or more of the standard tests for statistical randomness....

 code (PN code) specific to each phone. As the user moves from one cell to another, the handset sets up radio links with multiple cell sites (or sectors of the same site) simultaneously. This is known as "soft handoff" because, unlike with traditional cellular technology, there is no one defined point where the phone switches to the new cell.

In IS-95
IS-95
Interim Standard 95 is the first CDMA-based digital cellular standard by Qualcomm. The brand name for IS-95 is cdmaOne. IS-95 is also known as TIA-EIA-95....

 inter-frequency handovers and older analog systems such as NMT
Nordic Mobile Telephone
NMT is the first fully automatic cellular phone system...

 it will typically be impossible to test the target channel directly while communicating. In this case other techniques have to be used such as pilot beacons in IS-95. This means that there is almost always a brief break in the communication while searching for the new channel followed by the risk of an unexpected return to the old channel.

If there is no ongoing communication or the communication can be interrupted, it is possible for the mobile unit to spontaneously move from one cell to another and then notify the base station with the strongest signal.

Cellular frequency choice in mobile phone networks



The effect of frequency on cell coverage means that different frequencies serve better for different uses. Low frequencies, such as 450 MHz NMT, serve very well for countryside coverage. GSM 900 (900 MHz) is a suitable solution for light urban coverage. GSM 1800 (1.8 GHz) starts to be limited by structural walls. UMTS, at 2.1 GHz is quite similar in coverage to GSM 1800.

Higher frequencies are a disadvantage when it comes to coverage, but it is a decided advantage when it comes to capacity. Pico cells, covering e.g. one floor of a building, become possible, and the same frequency can be used for cells which are practically neighbours.

Cell service area may also vary due to interference from transmitting systems, both within and around that cell. This is true especially in CDMA based systems. The receiver requires a certain signal-to-noise ratio
Signal-to-noise ratio
Signal-to-noise ratio is a measure used in science and engineering that compares the level of a desired signal to the level of background noise. It is defined as the ratio of signal power to the noise power. A ratio higher than 1:1 indicates more signal than noise...

. As the receiver moves away from the transmitter, the power transmitted is reduced. As the interference (noise) rises above the received power from the transmitter, and the power of the transmitter cannot be increased any more, the signal becomes corrupted and eventually unusable. In CDMA-based systems, the effect of interference from other mobile transmitters in the same cell on coverage area is very marked and has a special name, cell breathing
Cell breathing (telephony)
In CDMA-based mobile telephone systems, the effect of radio interference from other mobile transmitters in the same cell or coverage area is very marked and has a special name, cell breathing....

.

One can see examples of cell coverage by studying some of the coverage maps provided by real operators on their web sites. In certain cases they may mark the site of the transmitter, in others it can be calculated by working out the point of strongest coverage.

Coverage comparison of different frequencies


Following table shows the dependency of frequency on coverage area of one cell of a CDMA2000
CDMA2000
CDMA2000 is a family of 3G mobile technology standards, which use CDMA channel access, to send voice, data, and signaling data between mobile phones and cell sites. The set of standards includes: CDMA2000 1X, CDMA2000 EV-DO Rev. 0, CDMA2000 EV-DO Rev. A, and CDMA2000 EV-DO Rev. B...

 network:
Frequency (MHz) Cell radius (km) Cell area (km2) Relative Cell Count
450 48.9 7521 1
950 26.9 2269 3.3
1800 14.0 618 12.2
2100 12.0 449 16.2
